V-SOL Dual-band Gigabit WiFi 5 Router
V-SOL Dual-band Gigabit WiFi 5 Router V-SOL Dual-band Gigabit WiFi 5 Router V-SOL Dual-band Gigabit WiFi 5 Router V-SOL Dual-band Gigabit WiFi 5 Router

V-SOL Dual-band Gigabit WiFi 5 Router

Item No.: HG3221D
HG3221D-4G1S2NAC/4G2S2NAC (4GE+1POTS/2POTS +WiFi5+USB3.0 XPON HGU ONT ) adalah perangkat akses broadband yang dirancang khusus untuk memenuhi kebutuhan operator jaringan tetap untuk layanan FTTH dan triple play.
ONT didasarkan pada solusi chip berkinerja tinggi (CPU ZTE + chipset WiFi MTK), mendukung teknologi dual-mode XPON (EPON dan GPON), dan juga mendukung teknologi WiFi IEEE802.11b/g/n/ac dan teknologi WiFi Layer 2/ lainnya. Lapisan 3 berfungsi, menyediakan layanan data untuk aplikasi FTTH tingkat operator. Selain itu, ONT juga mendukung protokol OAM/OMCI, dan kita dapat mengkonfigurasi atau mengelola berbagai layanan ONT di VSOL OLT.
ONT memiliki keandalan yang tinggi, mudah dikelola dan dipelihara, serta memiliki jaminan QoS untuk berbagai layanan. Ini sesuai dengan serangkaian standar teknis internasional seperti IEEE802.3ah dan ITU-T G.984
  • Material: ABS Plastic
  • Size: 205mm×140mm×37mm（L×W×H）
  • Weight: 0.34Kg
    • INQUIRY
    Description parameters Product videos Download

    V-SOL Dual-band Gigabit WiFi 5 Router

     MTK WiFi 5 Chipset | 1200Mbps | IPV4/IPV6 | USB 3.0

    HG3221D-4G1S2NAC WiFi 5 Router

    4GE + 1POTS + 1 USB 3.0 + WiFi 5 HGU

    Dual-band Concurrency WiFi 5

    HG3221D support 2.4GHz/5GHz dual-band concurrency, speed can reach up to 1.2Gbps (866Mbps on 5GHz band and 300Mbps on 2.4GHz band) Intelligently select the best band signal， Faster speed is the best advantage of 5GHz band at short distance. On the contrary, maintaining stable signal is the best advantage of 2.4GHz band at long distance.

    4×5dBi Gain External Antennas

    Larger isolation are obtained between the antennas through scientific and professional layout, effectively reduce signal overlap and facilitate signal transmission to bring out wider coverage!

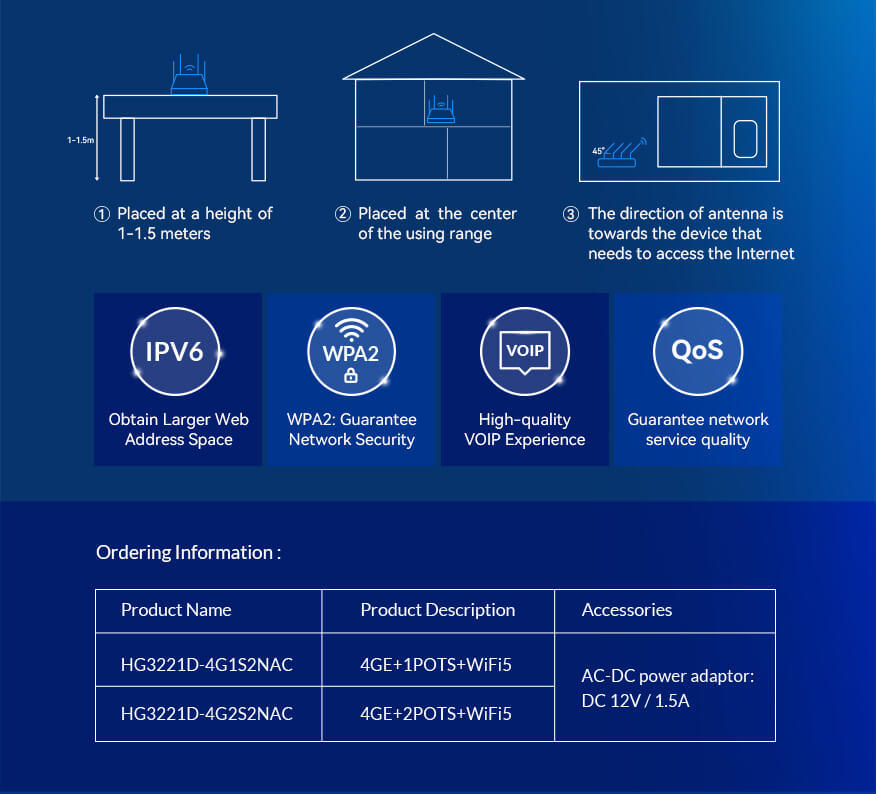

    How to place the router to bring a better use effect?

    ○ Hardware Parameter
    Dimension 205mm×140mm×37mm(L×W×H)
    Net weight 0.32Kg
    Operating condition Operating temp:0 ~ +55°C
    Operating humidity:5 ~ 90%  (non-condensed)
    Storing condition Storing temp: -30 ~ +60°C
    Storing humidity: 5 ~ 90%  (non-condensed)
    Power adapter DC 12V,1.5A, external AC-DC power adaptor
    Power supply ≤10W
    Interface HG3221D-4G1S2NAC:4GE+1POTS+USB3.0+WiFi5
    HG3221D-4G2S2NAC:4GE+2POTS+USB3.0+WiFi5
    Indicators PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS,USB

    ○ Interface parameter
    PON Interface
    • 1XPON port(EPON PX20+ and GPON Class B+)
    • SC single mode, SC/UPC connector
    • TX optical power: 0～+4dBm
    • RX sensitivity: -27dBm
    • Overload optical power: -3dBm(EPON) or  -8dBm(GPON)
    • Transmission distance: 20KM
    • Wavelength: TX 1310nm, RX1490nm
    User interface
    • 4×GE, Auto-negotiation,RJ45 ports
    • 1×POTS(2×RJ11 option) RJ11 Connector
    Antenna 4T4R, 5dBi  external antennas
    USB 1×USB 3.0 for Shared Storage/Printer

    ○ Function Data
    Management
    • WEB/TELNET/OAM/OMCI/TR069
    • Support private OAM/OMCI protocol and Unified network management of VSOL OLT
    Internet connection Support Routing Mode
    Multicast IGMP v1/v2/v3, IGMP snooping
    VoIP
    • SIP and IMS SIP
    • Codec∶G.711/G.723/G.726/G.729 codec
    • Echo cancellation,VAD/CNG,DTMF
    • T.30/T.38 FAX
    • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
    • Line testing according to GR-909
    WIFI
    • Support Frequency:2.4 GHz,5GHz
    IEEE 802.11a/n/ac Wi-Fi@ 5GHz(2x2)
    IEEE 802.11b/g/n Wi-Fi@2.4GHz(2x2)
    • Multiple SSIDs for each band
    • WEP/WPA-PSK(TKIP)/WPA2-PSK(AES) Security
    L2 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN
    L3 IPv4/IPv6, DHCP Client/Server,PPPoE, NAT,DMZ, DDNS
    Firewall Anti-DDOS, Filtering Based on ACL/MAC/URL

    Datasheet

    XPON HGU HG3221D-4G1S2NAC Datasheet-V1.6-EN
