1GE+1FE+CATV+WiFi ONU

Name: 1GE+1FE+CATV+WiFi ONU
Brand: V-Solution Indonesia
SKU: V2802RGWT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V2802RGWT

G/EPON 1GE+1FE+WiFi+CATV ONU memenuhi operator telekomunikasi FTTO (kantor), FTTD (Meja), kecepatan broadband FTTH(Rumah), akses broadband SOHO, pengawasan video, dan persyaratan lainnya untuk merancang produk Gigabit Ethernet EPON/GPON.

Material: ABS Plastic

Size: 185mm×120mm×34mm（L×W×H）

Weight: 0.29kg

INQUIRY

Description Parameters Features Application

Product introduct

G/EPON 1GE+1FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an EPON/GPON Gigabit Ethernet products. It is based on mature and stable, cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.

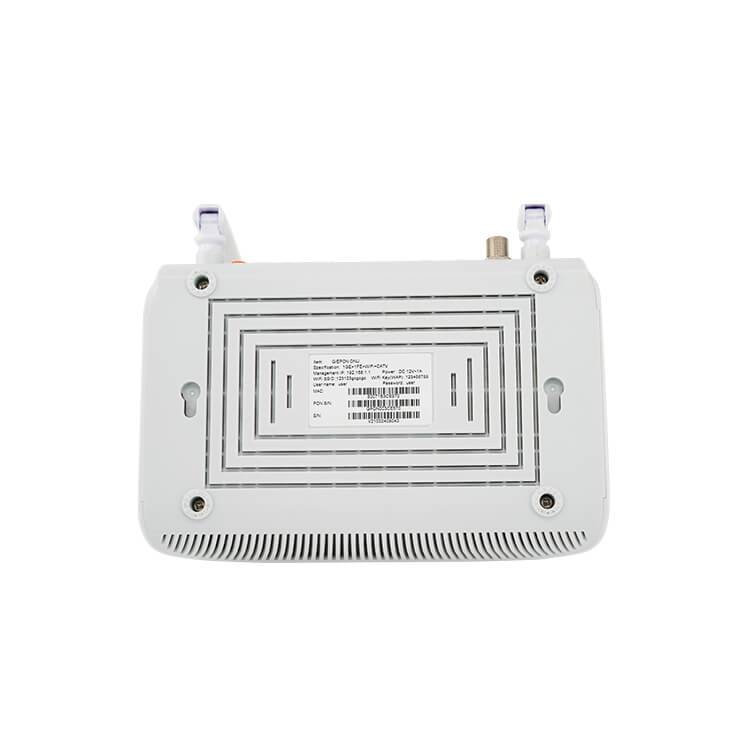

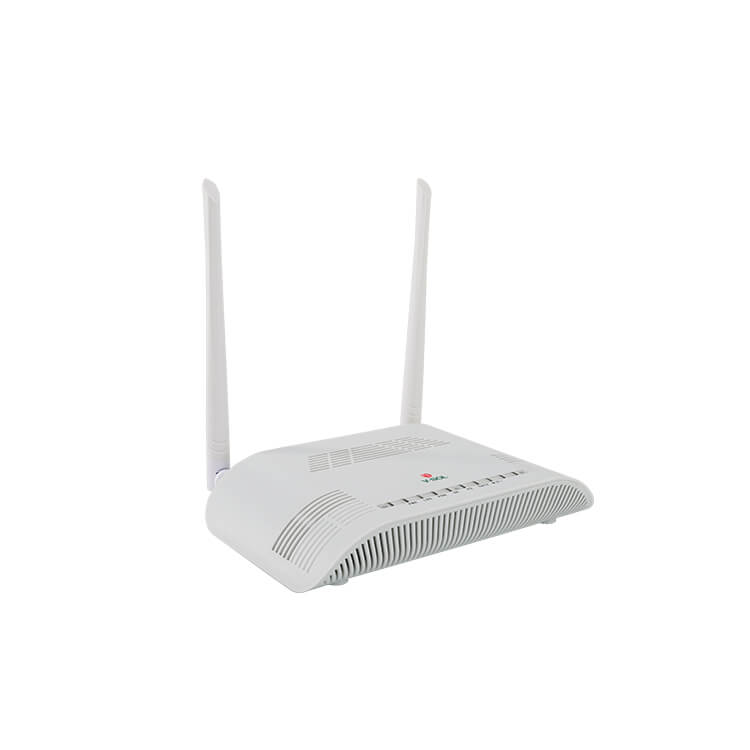

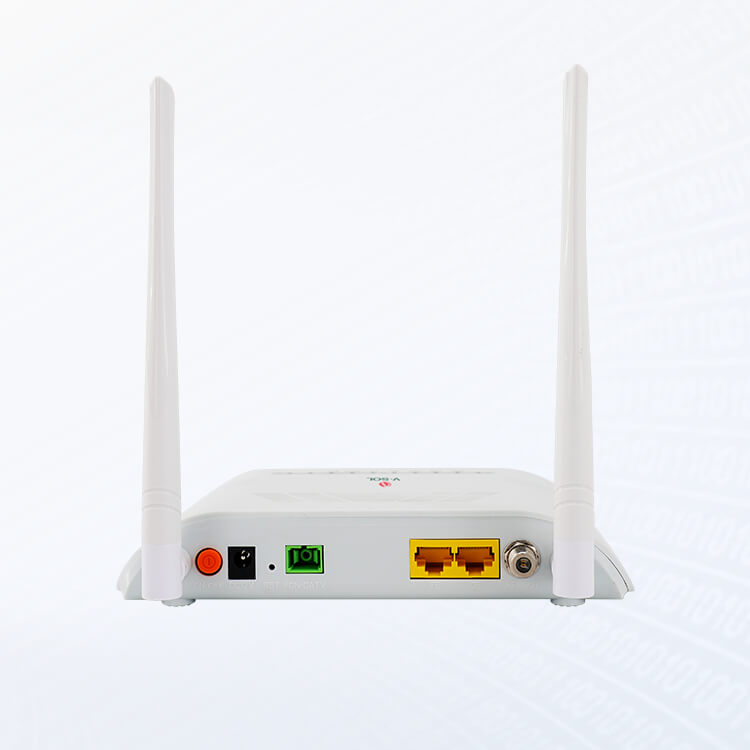

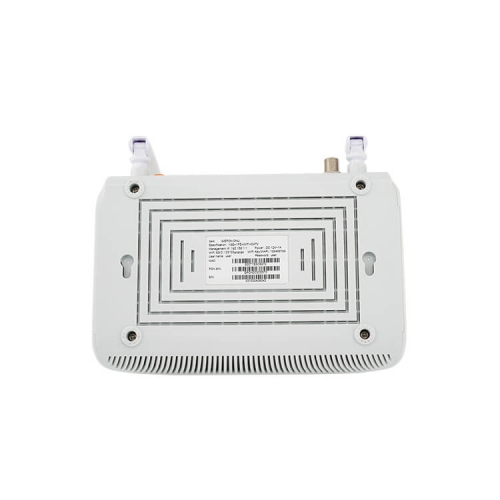

Product display

Technical parameters

Item	1GE+1FE+WiFi+CATV ONU
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm, Saturability: -8dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
Wavelength	Tx1310nm,Rx 1490nm and 1550nm
Optical interface	SC/APC connector(signal fiber with WDM)
LAN interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WiFi interface	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
CATV interface	RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level and AGC range: 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / 79dbuv@-2~-12dBm / 77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / 73dbuv@-5~-15dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED	7, For Status of POWER、LOS、PON、GE、FE、WiFi、CATV
Operating condition	Temperature: 0℃～+50℃ Humidity: 10%～90%（non-condensing）
Storing condition	Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing）
Power supply	DC 12V/1A, ≤7W
Dimension	185mm×120mm×34mm（L×W×H）
Net weight	0.29kg

Special Features

► Dual Mode( can access gpon/epon olts ).
► Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
► Full compliance to IEEE 802.3ah specification & OAM function.
► Support 802.11n 2T2R speed up to 300Mbps.
► Support rich VLAN, DHCP Server and IGMP snooping multicast feature.
► Advantage traffic management
► Advanced Dynamic Bandwidth Allocation (DBA)
► The WAN port supports bridge or router mode.
► Advanced L2 features QinQ VLAN & QoS support.
► Support NAT, Firewall function.
► Support Console/ Telnet/ NMS management interface for ease of operation and maintenance.
► Support 2K MAC address table.
► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

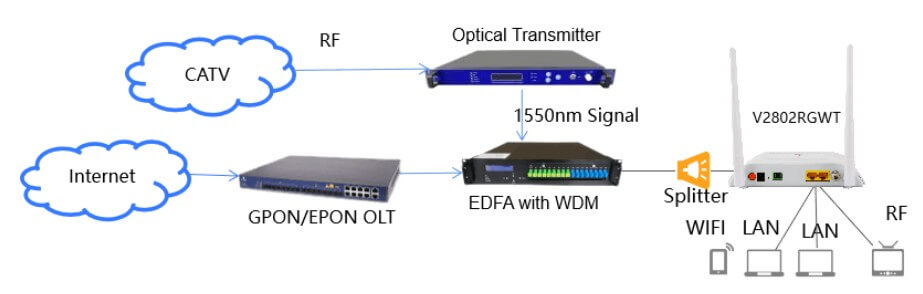

Typical application diagram

1GE+1FE+CATV+WiFi ONU
