4GE XPON SFU ONU

Name: 4GE XPON SFU ONU
Brand: V-Solution Indonesia
SKU: V283D-4G
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V283D-4G

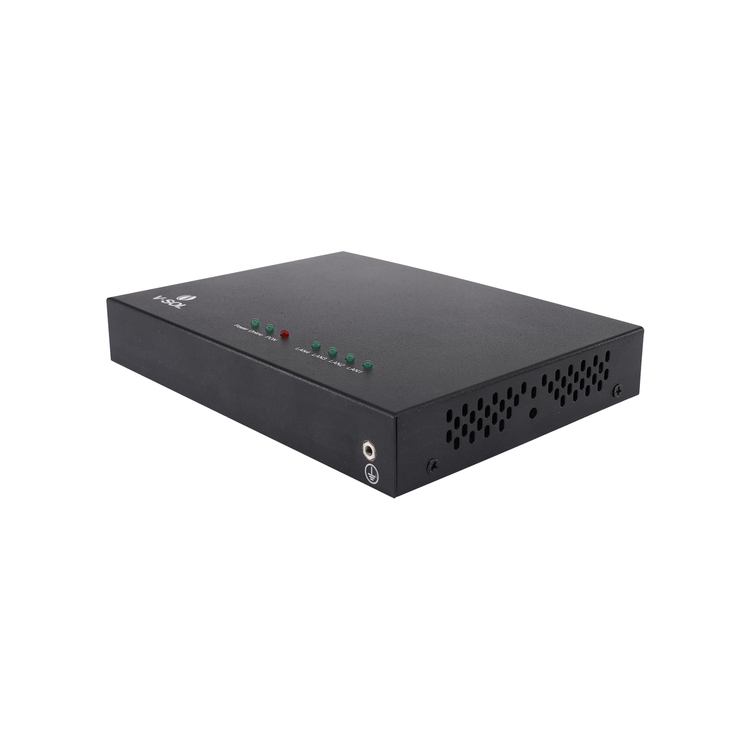

V283D-4G (XPON 4GE SFU ONT) is a broadband access device specially designed to meet the needs of telecom operators for FTTO (Office), FTTD (Desktop), FTTH (Home), SOHO access, and video surveillance access.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports Layer 2 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

Material: Steel case

Size: 176.5mm×125.4mm×27.5m(L×W×H)

Weight: 465g

INQUIRY

Description Parameters Video Show Download

V-SOL 4GE XPON SFU

V283D-4G

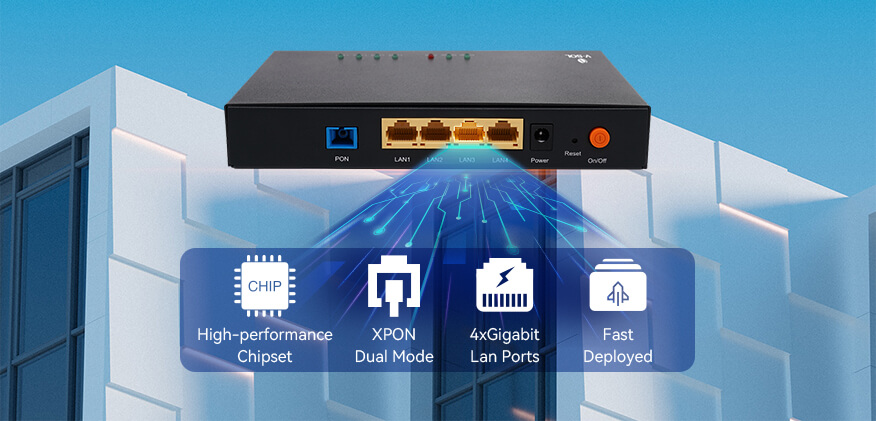

Based on the mature Chipset with high integration

FTTH GPON OLT

Wide temp up to -20°C~+55°C

Cold/Heat resistance greatly ensure the normal operation of the ONU

Optical Line Terminal

V283D-4G SFU ONU For Better Life

GPON OLT 16 Port

○ Hardware Parameter
Dimension	176.5mm×125.4mm×27.5m(L×W×H)
Net weight	465g
Operating condition	Operating temp: -20°C~+55°C Operating humidity:10%~85%（non-condensing)
Storage condition	Storing temp: -40~+80°C Storing humidity: 10~90% (non-condensed)

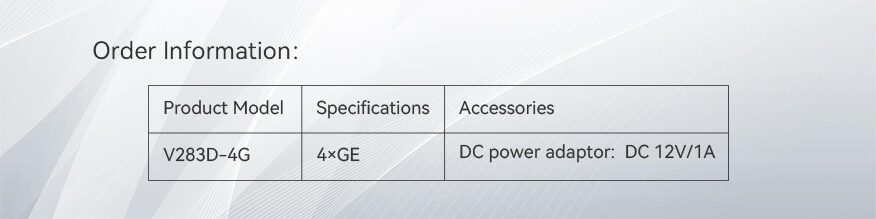

Power adapter	DC 12V/1A
Power supply	≤ 12W

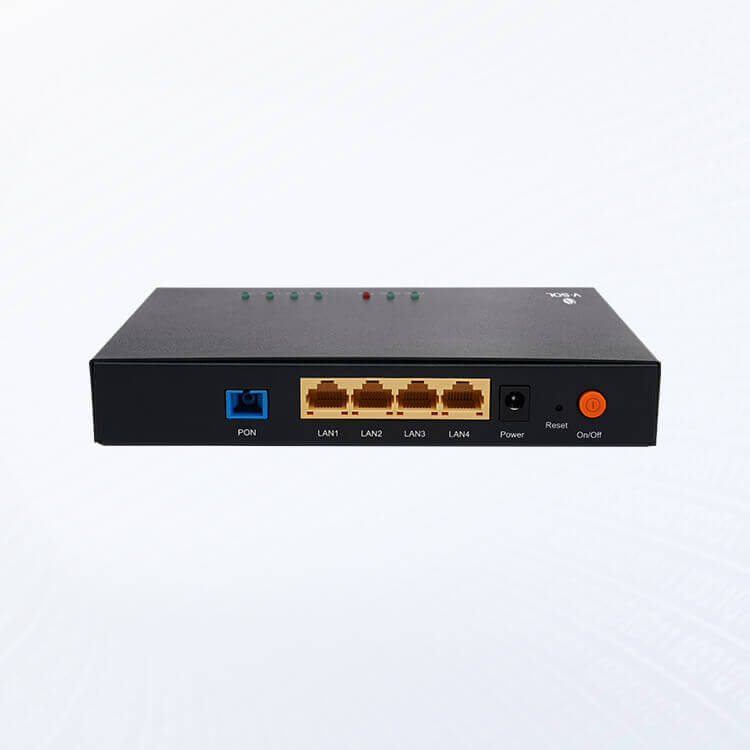

Interface	1×PON+4GE

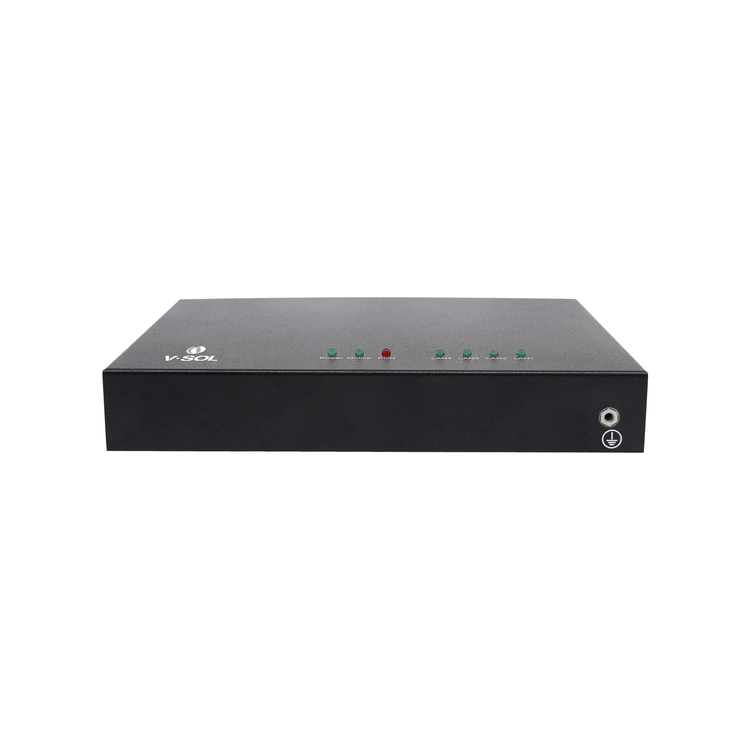

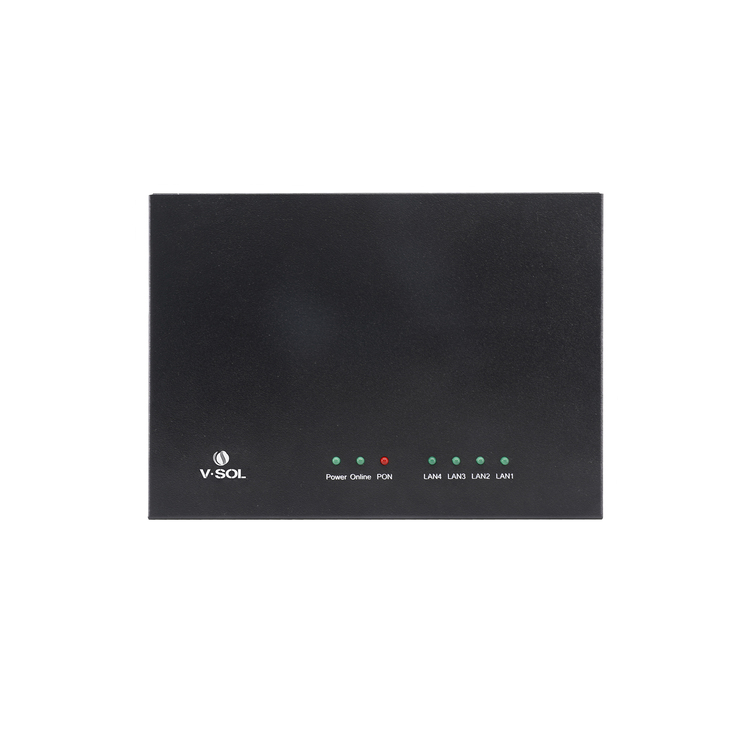

Indicators	7, For Status of POWER, LOS, PON, LAN1~4

○ Interface parameter
PON Interface	1 XPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤ -28dBm TX optical power: 0.5 ~ +5dBm RX optical power: -8 to -28 dBm Transmission distance: 20KM
Wavelength	TX 1310nm, RX 1490nm
Optical Interface	SC/UPC connector
LAN interface	4 x 10/100/1000BASE-TX Ethernet ports, RJ45 connector，AutoMDIX
Control Button	RST - Reset Button On/Off - Power Button

○ Function Data
O&M	WEB/TELNET/OAM/OMCI Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Multicast	IGMP v1/v2/v3, IGMP snooping
L2	802.1D & 802.1ad bridging
L3	IPv4, Stack IP Configuration
Other Function	Firmware upgrade & Backup/Restore

Datasheet

XPON ONT V283D-4G Datasheet-V2.0-EN
