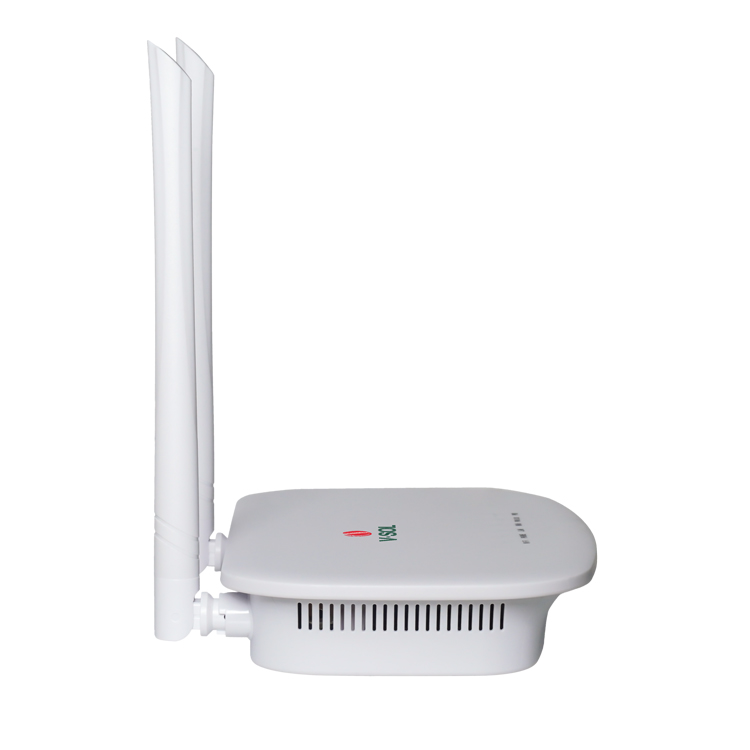

1GE+1POTS+WiFi 4 HGU ONT

Name: 1GE+1POTS+WiFi 4 HGU ONT
Brand: V-Solution Indonesia
SKU: HG322RGW
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HG322RGW

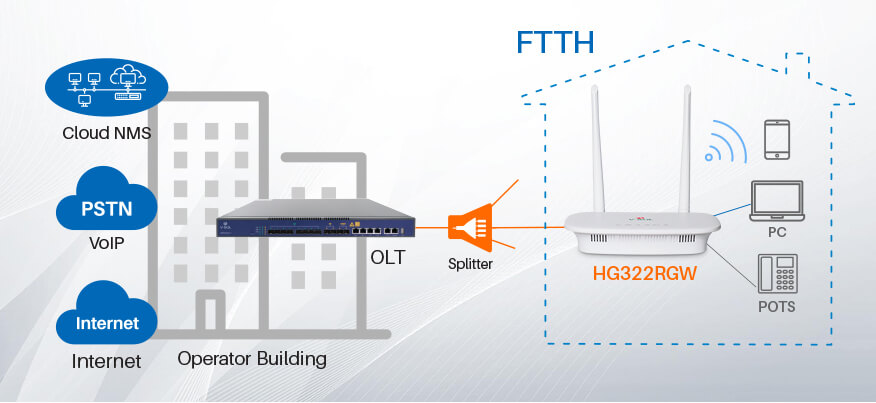

HG322RGW (XPON 1GE+WiFi 4 HGU ONT) is a broadband access device specially designed to meet the needs of telecom operators for FTTO (Office), FTTD (Desktop), FTTH (Home), SOHO access, and video surveillance access.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n WiFi 4 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.

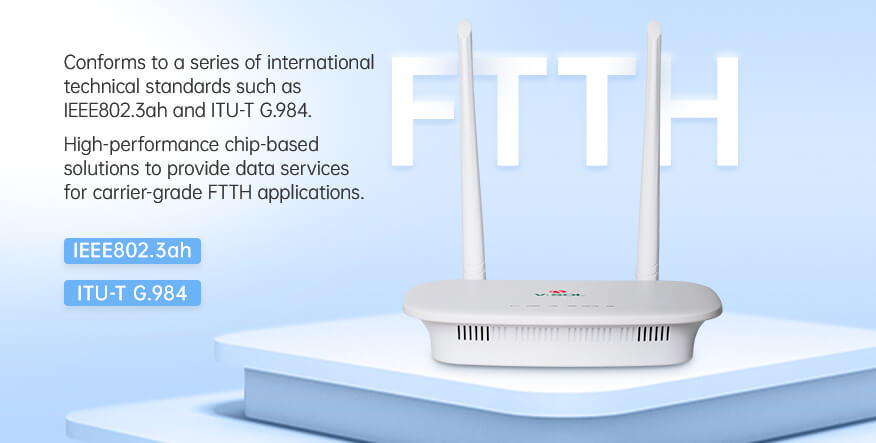

The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

Material: Steel Shell

Size: 170mm*112mm*31mm(L*W*H)

Weight: 0.180KG

INQUIRY

Description Parameters Download

1*XPON+1GE+1POTS+WiFi 4
HGU ONT HG322RGW

High Performance Solution

Automatically Access EPON/GPON

Wide WiFi Signal Coverage

5dBi antennas, wide coverage and strong penetrating ability.

Powerful VoIP Function

Easy to Manage and Maintain

○ Hardware Parameter
Dimension	100mm92mm29.5mm(L×W×H)
Net weight	110g
Operating condition	Operating temp: 0 ~ +55°C Operating humidity: 10~90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V/1A, external AC-DC power adaptor
Power supply	≤10W
Interface	1GE+1POTS
Indicators	PWR, PON, LOS, WAN, LAN, PHONE

○ Interface parameter
PON interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
User interface	1GE, Auto-negotiation,RJ45 ports 1POTS RJ11 Connector

○ Function Data
Management	OAM/OMCI, Telnet, WEB, TR069 Support full management of HGU functions by VSOL OLT
Multicast	Support IGMP v1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
Internet connection	Support Bridge, Route and Bridge/Route mixed mode
VLAN	Support VLAN tag mode Support VLAN trunk mode Support VLAN translation
Data Service Functions	Full speed non-blocking switching 2K MAC address table 4K VLAN ID Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
VoIP	SIP and IMS SIP Codec∶G.711/G.723/G.726/G.729 codec Echo cancellation,VAD/CNG,DTMF T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
QoS	Support 4 queues Support SP and WRR Support 802.1P and DSCP
L3	Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static Support Static route Support DHCP Server Support NAT/DMZ/DDNS Support Virtual Server
Security	Support Firewall Support Mac filter Based on MAC or URL Support ACL

Datasheet

XPON HGU HG322RGW Datasheet-V4.1-EN
