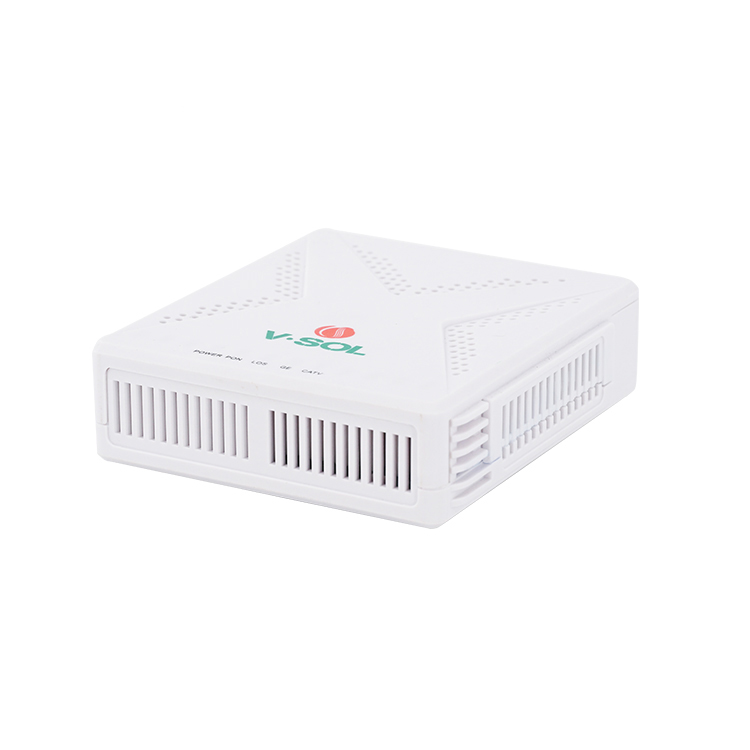

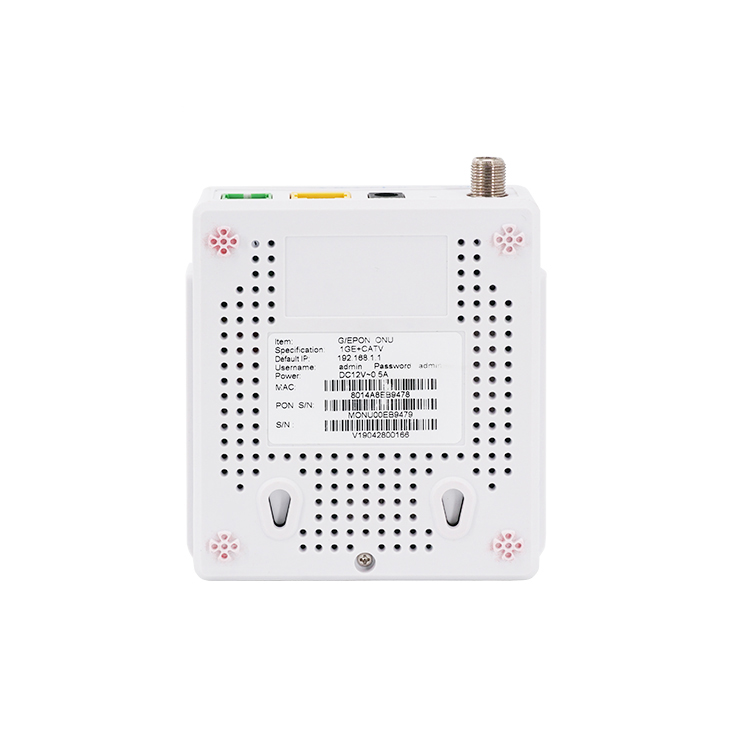

CATV ONT V2801D-1GT1
CATV ONT V2801D-1GT1 CATV ONT V2801D-1GT1 CATV ONT V2801D-1GT1 CATV ONT V2801D-1GT1 CATV ONT V2801D-1GT1

CATV ONT V2801D-1GT1

Item No.: V2801D
V2801D-1GT1 (XPON 1GE+CATV ONT) dirancang khusus untuk memenuhi FTTO (kantor), FTTD (desktop), FTTH (rumah), TV dan kebutuhan operator telekomunikasi lainnya. ONT didasarkan pada solusi chip berkinerja tinggi, mendukung mode ganda (EPON dan GPON), dan juga mendukung fungsi Layer 2/Layer 3, menyediakan layanan data untuk aplikasi FTTH tingkat operator.

ONT memiliki keandalan yang tinggi dan dapat digunakan di lingkungan bersuhu luas. Ia juga memiliki fungsi firewall yang kuat dan mudah dikelola dan dipelihara. Ini dapat memberikan jaminan QoS untuk layanan yang berbeda. Ini sesuai dengan standar teknis internasional seperti IEEE802.3ah dan ITU-T G.984.
  • Material: ABS Plastic
  • Size: 82mm×82mm×25mm
  • Weight: 85g
    • INQUIRY
    Description Parameters Product videos Download

    CATV ONT V2801D-1GT1

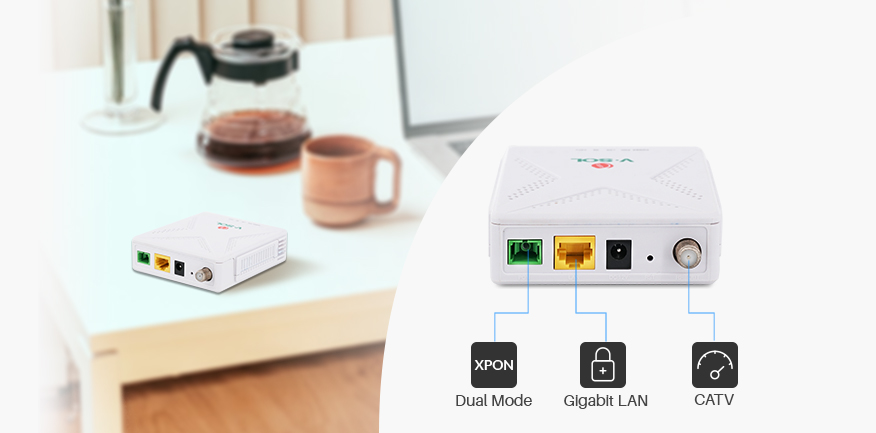

    XPON Dual Mode | Gigabit LAN | CATV Service

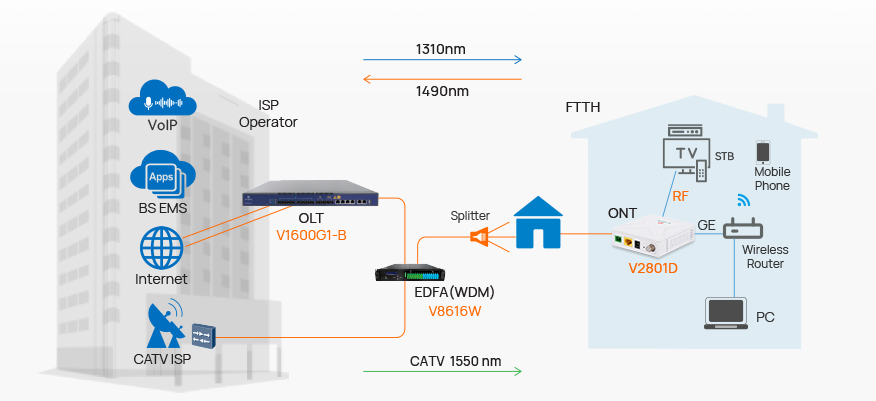

    Support HGU/SFU Feature, Flexible Access Network

    Support Bridge Mode & Router Mode

    Flexible Choice

    Meet the Needs of Customers

    Small Size, Plug & Play

     Easy to Deploy

    ○ Hardware Parameter
    Dimension 100mm×92mm×30mm(L×W×H)
    Net weight 130g
    Operating condition Operating Temp: 0 ~ +50°C
    Operating Humidity: 10 ~ 90%(non-condensed)
    Storing condition Storing temp: -30 ~ +70°C
    Storing humidity: 10 ~ 90%  (non-condensed)

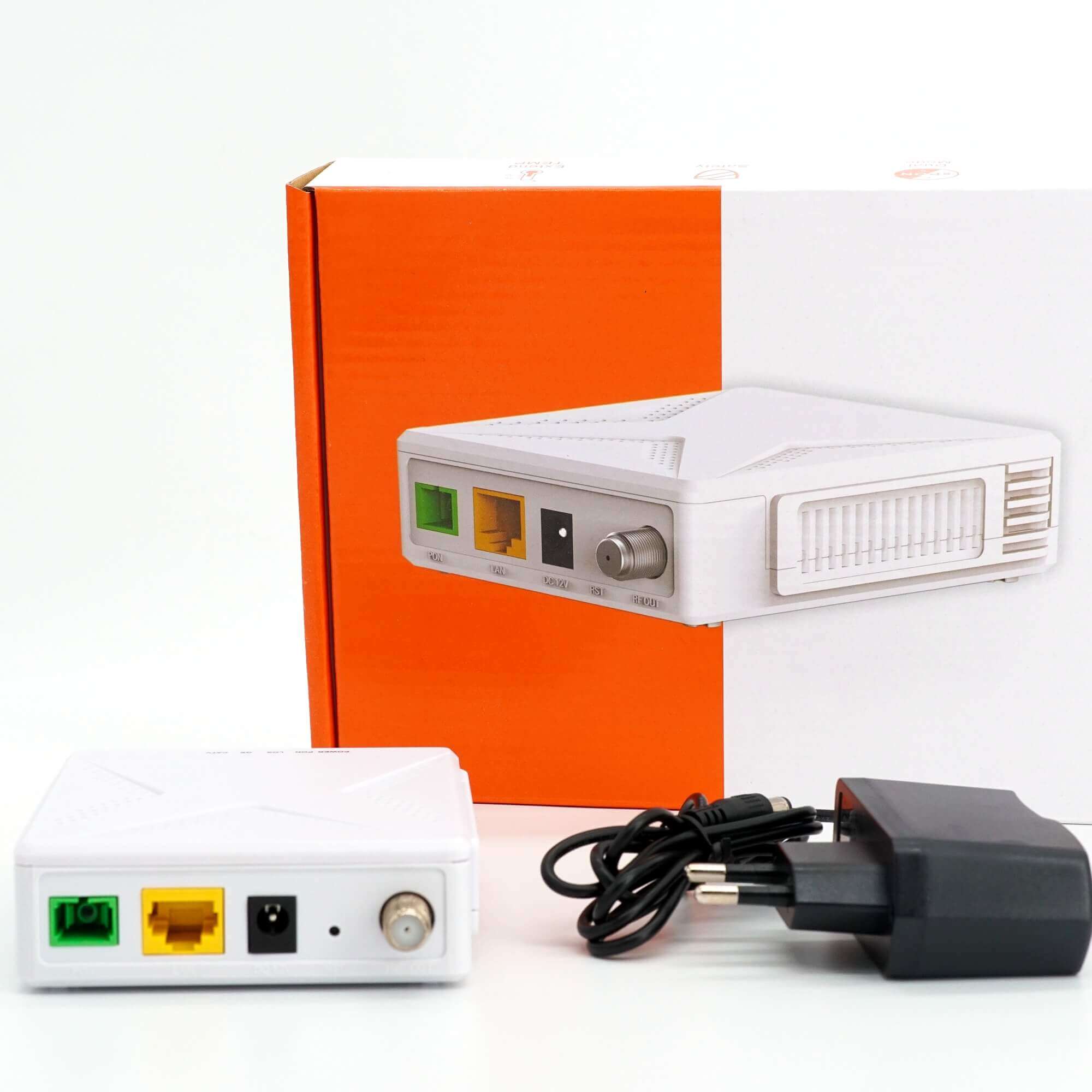

    Power adapter DC 12V, 0.5A, external AC-DC power adaptor
    Power supply ≤4.2W

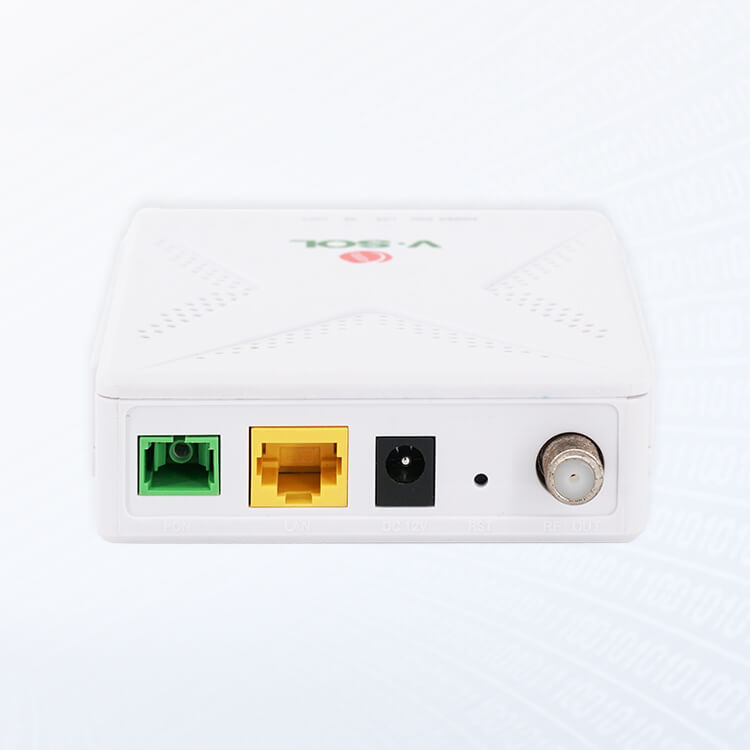

    Interface 1GE+CATV
    Indicators POWER, LOS, PON, LAN, CATV

    ○ Interface parameter
    PON interface
    • 1XPON port(EPON PX20+ and GPON Class B+)
    • SC single mode, SC/APC connector
    • TX optical power: 0～+4dBm
    • RX sensitivity: -27dBm
    • Overload optical power: -3dBm(EPON) or -8dBm(GPON)
    • Transmission distance: 20KM
    • Wavelength: TX 1310nm, RX1490nm, CATV 1550nm
    LAN interface 1*GE Auto-negotiation RJ45 ports

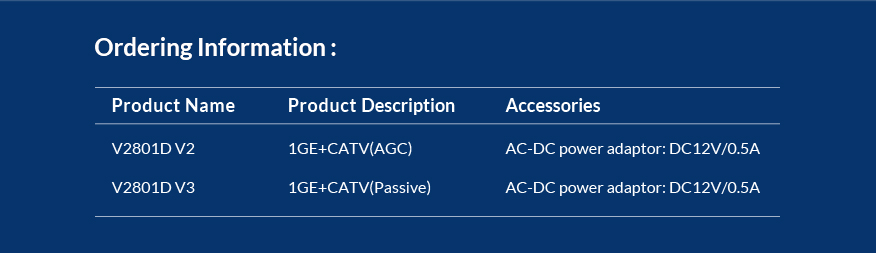

    CATV interface V2801D V2:
    • RF Optical power : +2～-18dBm
    • Optical receiving wavelength: 1550±10nm
    • RF frequency range: 47～1000MHz
    • RF output impedance: 75Ω
    • RF output level: ≥ 70dBuV(0～-15dBm)
    • AGC range: 0～-15dBm
    • MER: ≥32dB(-14dBm optical input)
    		 V2801D V3:
    • RF Optical power : 0～-3dBm
    • Optical receiving wavelength: 1550±10nm
    • RF frequency range: 47～1000MHz
    • RF output impedance: 75Ω
    • RF output level: ≥ 60dBuV（0~-3dBm）
    • AGC range: not support
    • MER: ≥32dB(0~-3dBm optical input)

    ○ Function Data
    PON Mode XPON Dual Mode
    Uplink Mode Bridging and Routing Mode
    Well connect with OLTs of mainstream
    CATV Support CATV Rmote management
    Standard
    • Support CTC OAM 2.1 and 3.0
    • Support ITUT984.x OMCI
    Layer2
    • 802.1D & 802.1ad bridging
    • 802.1p CoS
    • 802.1Q VLAN
    Layer3
    • IPv4
    • DHCP Client/Server
    • PPPoE, NAT, DMZ, DDNS
    Multicast IGMP v2/v3, IGMP snooping
    Security and Firewall
    • Prevent Rogue ONU
    • DDOS, Filtering Based on ACL/MAC/URL
    O&M Support EMS\WEB\Telnet\CLI and unified network management of VSOL OLT
