V-SOL 2.5GbE XPON ONT

Name: V-SOL 2.5GbE XPON ONT
Brand: V-Solution Indonesia
SKU: V2802RH
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V2802RH

V2802RH (1*2.5GE+1GE XPON ONT) dirancang khusus untuk memenuhi kebutuhan operator telekomunikasi untuk FTTO (kantor), FTTD (desktop), FTTH (rumah), akses broadband SOHO, pengawasan video, dll. Hal ini didasarkan pada teknologi XPON yang matang, keandalan tinggi, perawatan mudah, dan dapat memberikan jaminan QoS untuk berbagai layanan.

Port jaringan 2,5GE ONT dapat sepenuhnya memenuhi persyaratan bandwidth akses tinggi dari teknologi WIFI 6, teknologi AR/VR, video 8K, dan teknologi lainnya, serta dapat menghadirkan pengalaman akses Internet yang cepat dan latensi Internet yang lebih rendah untuk pengguna rumahan dan pengguna perusahaan.

ONT memiliki keandalan yang tinggi dan mudah dikelola dan dipelihara. Ini mematuhi China Telecom CTC2.1/3.0 dan standar teknis internasional seperti IEEE802.3ah dan ITU-T G.984.

Material: ABS Plastic

Size: 100mm*92mm*29.5mm(L*W*H)

Weight: TBD

INQUIRY

Description parameters Download

Upgrade to a Super-Fast, Futuristic Network

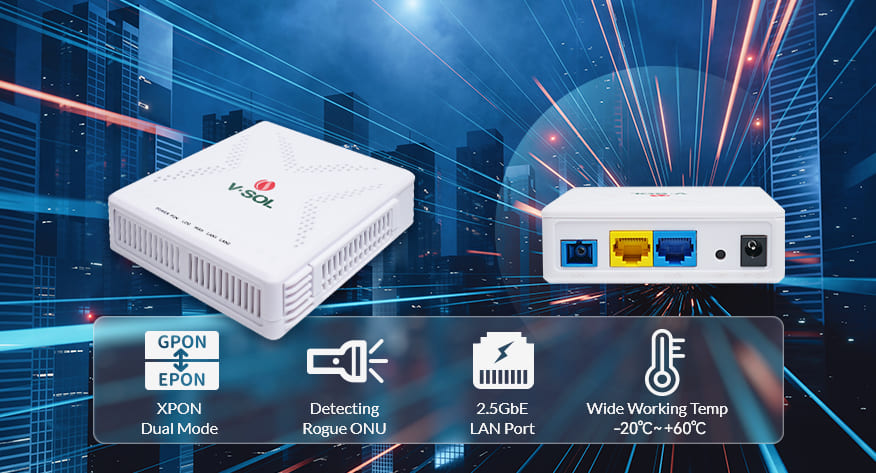

V-SOL 2.5GbE XPON ONT V2802RH

2.5GbE Router

Unlock the Highest Performance of
2.5G Multi-Gig Bandwidth and Devices

2.5GbE LAN

Application Scenarios

2.5GbE Ethernet

Simple Plug and Play for Internet Access

A plug-and-play design allows for easy deployment without the need for a technician.

2.5GbE LAN Port

Easy to install, Save space Easy Install ONT

○ Hardware Parameter
Dimension	100mm92mm29.5mm(LWH)
Net weight	TBD
Operating condition	Operating temp: -20 ~ +60°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp:-30~+70℃ Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Interfaces	12.5GbE+1GE(Option for V2802RH)
Indicators	POWER, PON, LOS, WAN, LAN1, LAN2

○ Interface parameter
PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
LAN interface	12.5GbE+1GE(Option), Auto-negotiation RJ45 connectors
Button	Reset

○ Function Data
XPON Mode	Dual mode,Auto-access to EPON/GPON OLT
Uplink Mode	Bridging and Routing Mode
Abnormal protection	Detecting Rogue ONU, Hardware Dying Gasp
Firewall	DDOS, Filtering Based on ACL/MAC/URL
Basic	Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support SN/Psw/Loid/Loid+Psw authentication
Alarm	Support Dying Gasp Support Port Loop Detect Support Eth Port Los
LAN	Support Port rate limiting Support Loop detection Support Flow control Support Storm control
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(≤8 vlans) Auto VLAN detection
Multicast	Support IGMPv1/v2/Snooping Max Multicast vlan 8 Max Multicast Group 64
QoS	Support 4 queues Support SP and WRR Support 802.1P
L3	Support IPv4 Support DHCP/PPPOE/Static IP Support Static route Support NAT
Management	Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support TR069/WEB/TELNET/CLI

Datasheet

XPON ONT V2802RH Datasheet-V1.0-EN
