2GE+WiFi 5 ONU
2GE+WiFi 5 ONU 2GE+WiFi 5 ONU 2GE+WiFi 5 ONU 2GE+WiFi 5 ONU

2GE+WiFi 5 ONU

Item No.: V2802DAC
V2802DAC (2GE+WiFi5 XPON ONT)  is designed to meet the FTTH and triple play service requirements of fixed network operators. The ONT is based on a high-performance chipset (Realtek) technology solution, supporting IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3 functions. The ONT supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
The ONU has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies with the China Telecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah, ITU-T G.984, etc.
INQUIRY
Description parameters Download

AC1200 WiFi ONT

WiFi 5 | EasyMesh | XPON Dual Mode

16 Port GPON OLT

FTTH GPON OLT

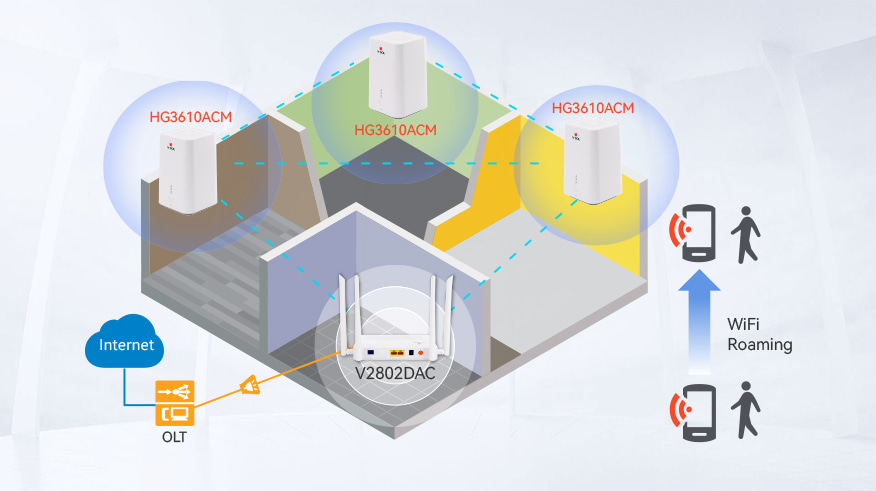

EasyMesh: Smart, Extended Coverage Home WiFi

Optical Line Terminal

Support IPv6 and MU-MIMO Technology

Say goodbye to network lag, multiplayer online without lag

GPON OLT 16 Port

AC1200 Dual Gigabit Interfaces for Gigabit Broadband Access Applications

GPON OLT 16 Port

GPON OLT 16 Port

○ Hardware Parameter
Dimension 178mm×120mm×30mm(L×W×H)
Net weight 0.31Kg
Operating condition Operating temp: 0 ~ +55°C
Operating humidity: 10 ~ 90%  (non-condensed)
Storing condition Storing temp: -30 ~ +60°C
Storing humidity: 10 ~ 90%  (non-condensed)
Power adapter DC 12V,1.0A, external AC-DC
power adaptor
Power supply ≤12W
Interface 2GE+WiFi5
Indicators PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G

○ Interface parameter
PON interface
  • 1XPON port(EPON PX20+ and GPON Class B+)
  • SC single mode, SC/UPC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm(EPON) or  -8dBm (GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
User interface 2×GE, Auto-negotiation,RJ45 ports
WLAN interface
  • Compliant with IEEE802.11b/g/n/ac
  • 2.4GHz Operating frequency: 2.4000-2.4835GHz
  • 5.0GHz Operating frequency: 5.150-5.825GHz
  • Support MIMO, rate up to 1.167Gbps
  • WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID
  • TX power: 11n--22dBm/11ac--24dBm

○ Function Data
Management
  • OAM/OMCI, Telnet, WEB, TR069
  • Support full management of ONT functions by VSOL OLT
Internet connection Support Bridge, Route and  Bridge/Route mixed mode
Multicast
  • Support IGMP v1/v2/v3
  • Support IGMP Proxy and MLD Proxy
  • Support IGMP Snooping and MLD  Snooping
VLAN
  • Support VLAN tag mode
  • Support VLAN trunk mode
  • Support VLAN translation
Data Service Functions
  • Full speed non-blocking switching
  • 2K MAC address table
  • 64 full range VLAN ID
  • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
  • Support auto polarity detection of Ethernet ports (AUTO MDIX)
  • Integrated IEEE802.1p QoS with four level priority queues
  • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless
  • Support Wireless AP mode
  • Support 802.11 b/g/n/ac
  • Support Multiple SSID
  • Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
  • Modulation type: DSSS, CCK and OFDM
  • Encoding scheme: BPSK, QPSK, 16QAM and 64QAM, 256QAM
  • Support EasyMesh protocol
QoS
  • Support 4 queues
  • Support SP and WRR
  • Support 802.1P and DSCP
L3
  • Support IPv4, IPv6 and IPv4/IPv6 dual stack
  • Support DHCP/PPPOE/Static
  • Support Static route
  • Support DHCP Server
  • Support NAT/DMZ/DDNS
  • Support Virtual Server
Security
  • Support Firewall
  • Support Mac filter Based on MAC or URL
  • Support ACL

Datasheet

XPON ONT V2802DAC Datasheet-V2.01-EN
