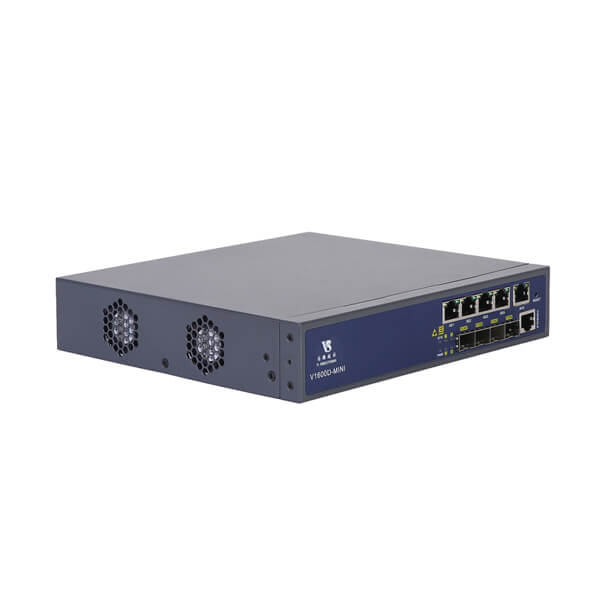

| V1600D-MINI | ||
| Chassis | Rack | 1U Height Box |
| 1000M Uplink Port | QTY | 4 |
| Copper | 4*10/100/1000M auto-negotiation | |
| EPON Port | QTY | 4 |
| Physical Interface | SFP Slots | |
| Supported PON module level | PX20, PX20+, PX20++, PX20+++ | |
| Max splitting ratio | 1:64 | |
| Dimension (L*W*H) | 224x200x43.6mm | |
| Weight | 3.1kg | |
| Power Supply | AC: 90~264V, 47/63Hz | |
| Power Consumption | 15W | |
| Operating Environment | Working Temperature | 0 ~ +50°C |
| Storage Temperature | -40 ~ +85°C | |
| Relative Humidity | 5 ~ 90% (non-conditioning) | |
