| ○ Hardware Parameter | |
| Size | 239mm*144mm*40mm(L×W×H) |
| Wired standard | IEEE802.3, IEEE802.3u, IEEE802.3ab |

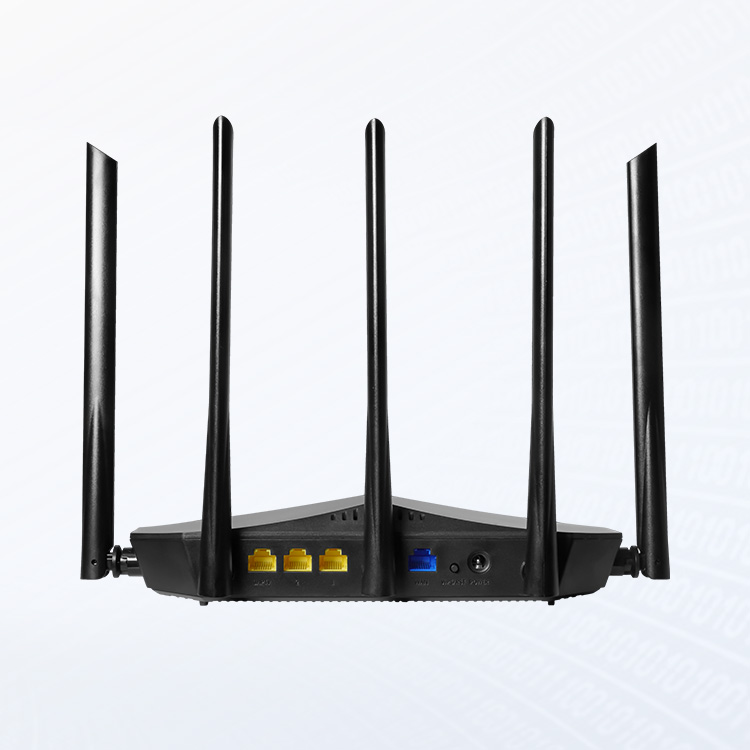

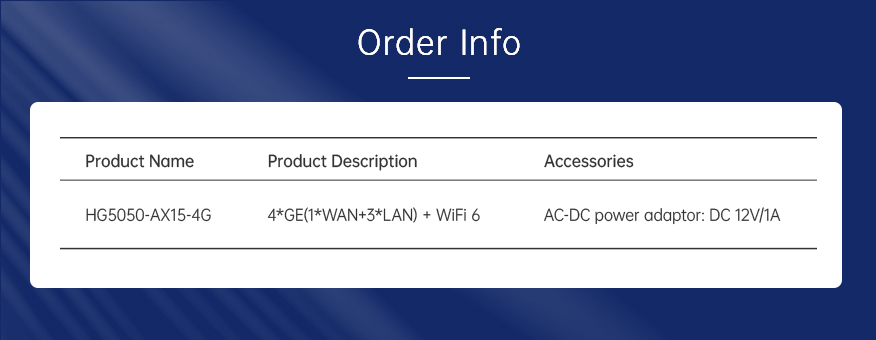

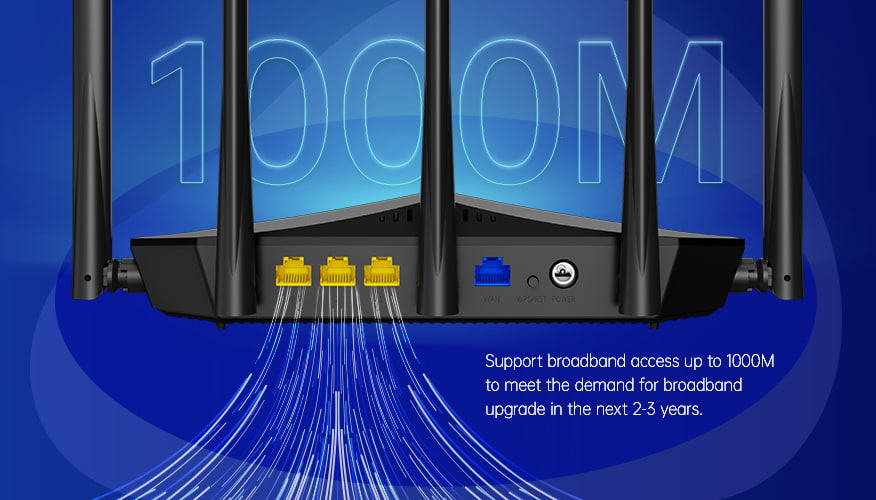

| Interface | 4*GE(1*WAN+3*LAN, RJ45) |

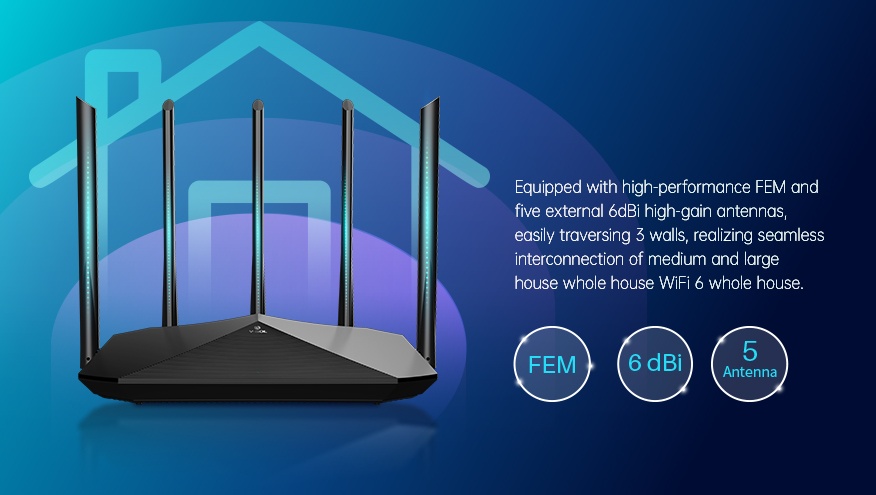

| Antenna | 5*6dBi, External omnidirectional antenna |
| Button | WPS/Reset |
| Power adapter | • Input: AC 100-240V, 50/60Hz • Output: DC 12V/1A |
| Working environment | • Working temperature: 0℃ ~ 40℃ • Working humidity: 10% ~ 90% RH (Non condensing) |
| Storage environment | • Storage temperature: -40℃ ~ 70℃ • Storage humidity: 5% ~ 90% RH (Non condensing) |
| Indicators | LED*1 |
| ○ Wireless Parameters | |
| Wireless standard | • 5GHz: IEEE 802.11 ax/ac/a/n • 2.4GHz: IEEE 802.11 b/g/n |

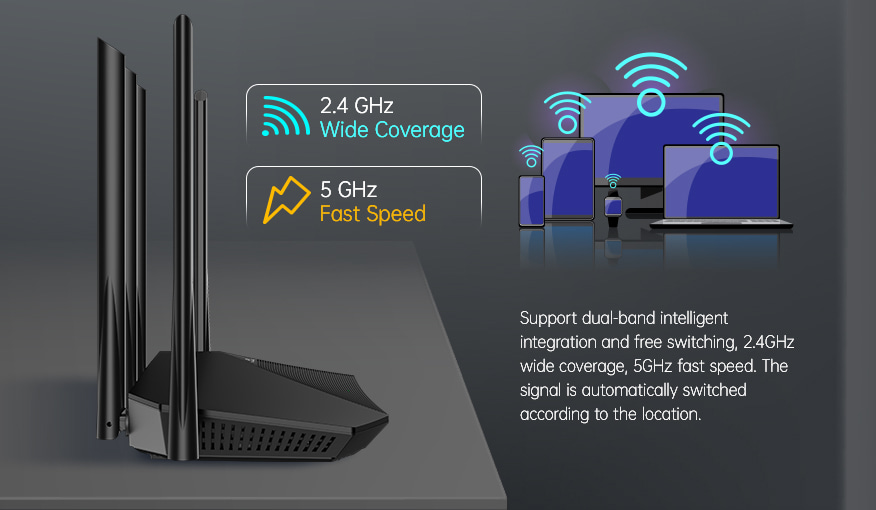

| Wireless spectrum | 2.4GHz & 5GHz |

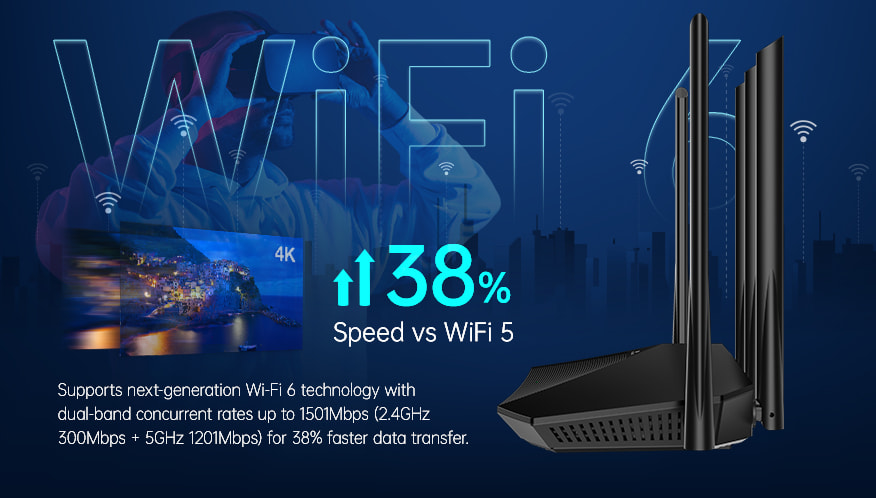

| Wireless rate | • 2.4GHz: 300Mbps • 5GHz: 1201Mbps |
| Wireless function | • Support OFDMA • Support MU-MIMO • Support Beamforming |
| Wireless encryption | • WPA2-PSK, WPA3-SAE/WPA2-PSK • Wireless encryption disable and enable • WPS fast and secure connection |
| ○ Software Data | |
| Internet access | PPPoE, Dynamic IP, Static IP |
| IP protocol | IPv4 & IPv6 |
| Working mode | • AP mode • Wireless routing mode • Wireless relay mode(Client+AP, WISP) |
| Access control | • Client filtering • Parental control |
| Firewall | • Anti WAN port PING, disabled/enabled • Anti UDP packet flooding • Anti TCP packet flooding • Anti ICMP packet flooding |
| Virtual server | • UPnP • Port forwarding • DMZ host |
| DHCP | • DHCP server • DHCP client list • DHCP static address reservation and allocation |
| Others | • IPv6 • Dual frequency integration function • Intelligent power saving • Bandwidth control • Guest network • System log • Remote Web management • MAC Address Clone • Automatic migration technology of broadband account • Configure backup and recovery • Support automatic detection of access mode • Online upgrade (New version push and online detection) • Network status display • Network topology |
