| ○ Hardware Parameter | |
| Size | 157mm*157mm*33mm(L*W*H) |

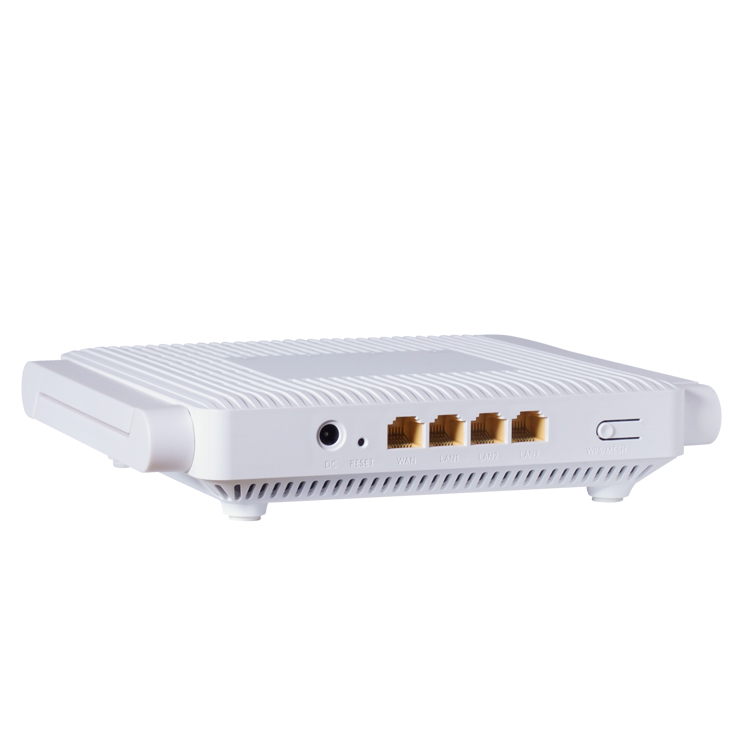

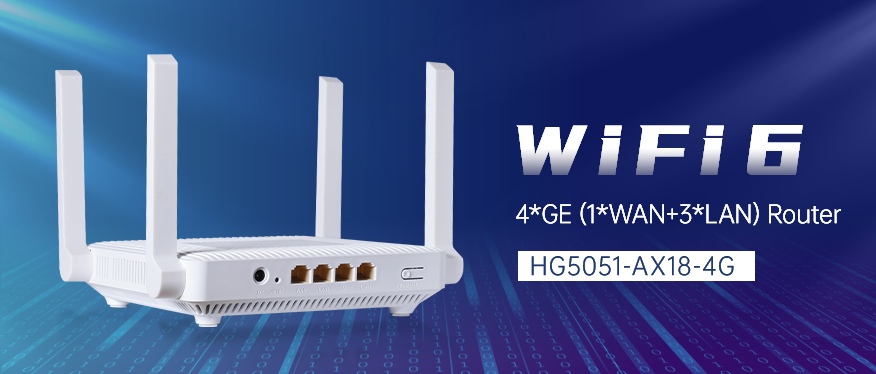

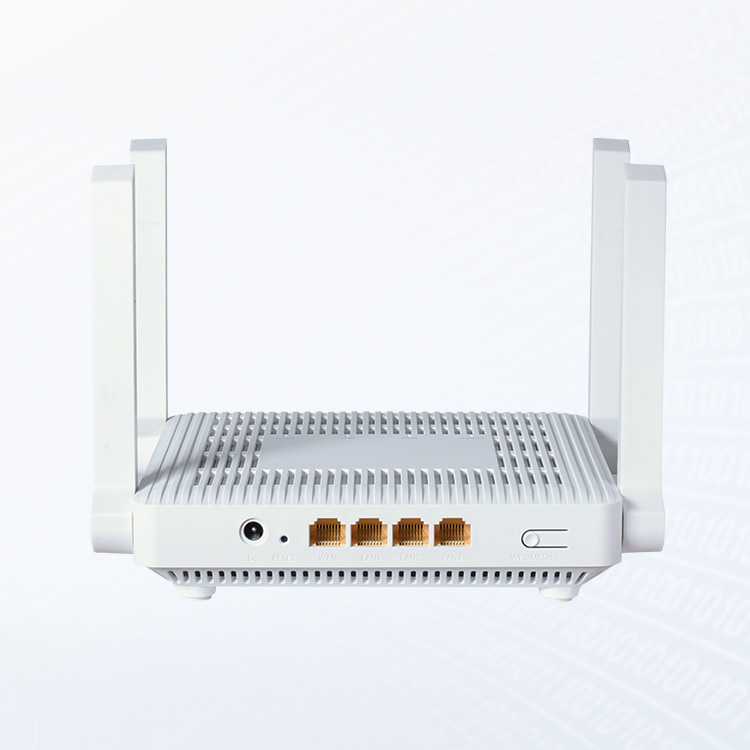

| Interface | 4*GE(1*WAN+3*LAN, RJ45) |

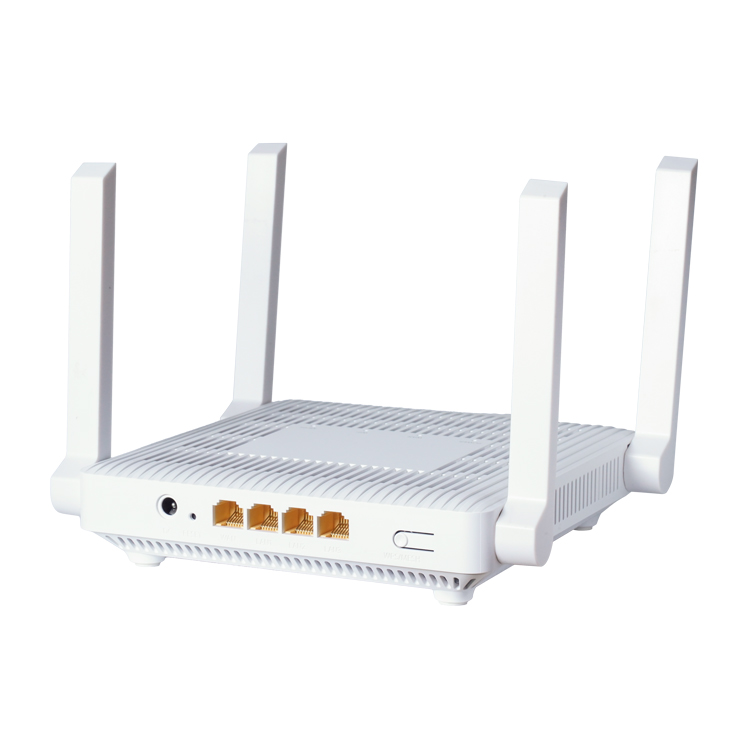

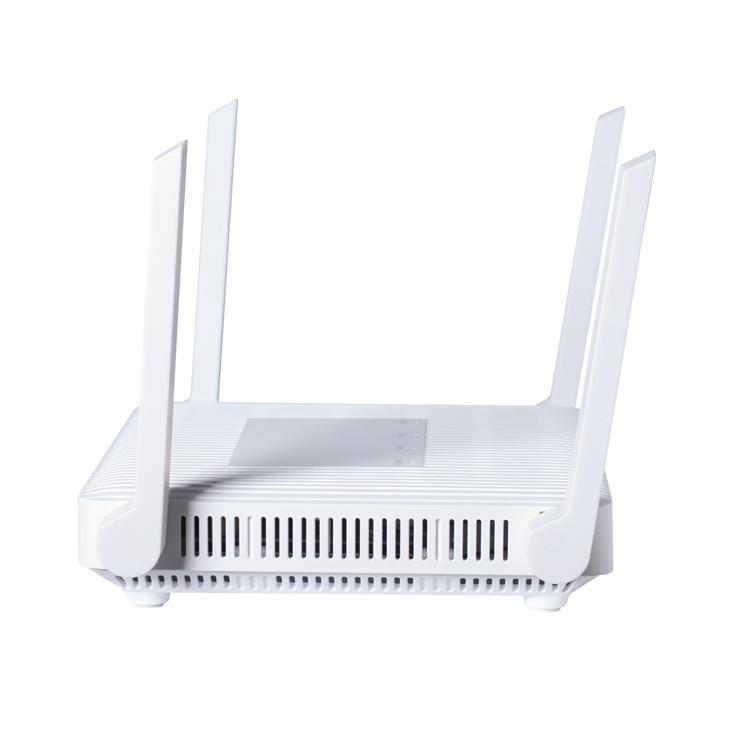

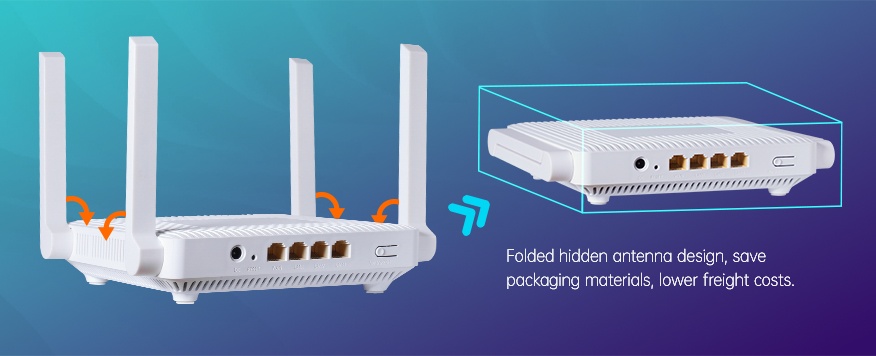

| Antenna | 4*5dBi, External omnidirectional antenna |
| Button | 2: RST key + (WPS/MESH combination key) |
| Power adapter | • Power input: DC 12V/1A • Power consumption: <12W |
| Working environment | • Working temperature: -5 ℃ ~ 40℃ • Working humidity: 0 ~ 95%(Non-condensing) |
| Storage environment | • Storage temperature: -40 ℃ ~ 85 ℃ • Storage humidity: 0 ~ 95%(Non-condensing) |
| Indicators | 4 LED Indicators: Power supply, WAN Two-color signal light, WIFI light, MESH light |
| ○ Wireless Parameters | |
| Wireless standard | IEEE 802.11 a/b/g/n/ac/ax |
| Wireless spectrum | 2.4GHz & 5.8GHz |
| Wireless rate | • 2.4GHz: 573.5Mbps • 5.8GHz: 1201Mbps |
| Wireless encryption | • WPA, WPA2, WPA/WPA2, WPA3, WPA2/WPA3 |
| Wireless antenna | • 2*WIFI 2.4G antenna+2*WIFI 5G antenna MIMO • 5dBi/2.4G; 5dBi/5G |
| Wireless output power | 16dBm/2.4G; 18dBm/5G |
| Wireless support bandwidth | 20MHz, 40MHz, 80MHz |
| Wireless user connections | • 2.4G: 32 users • 5.8G: 32 users |

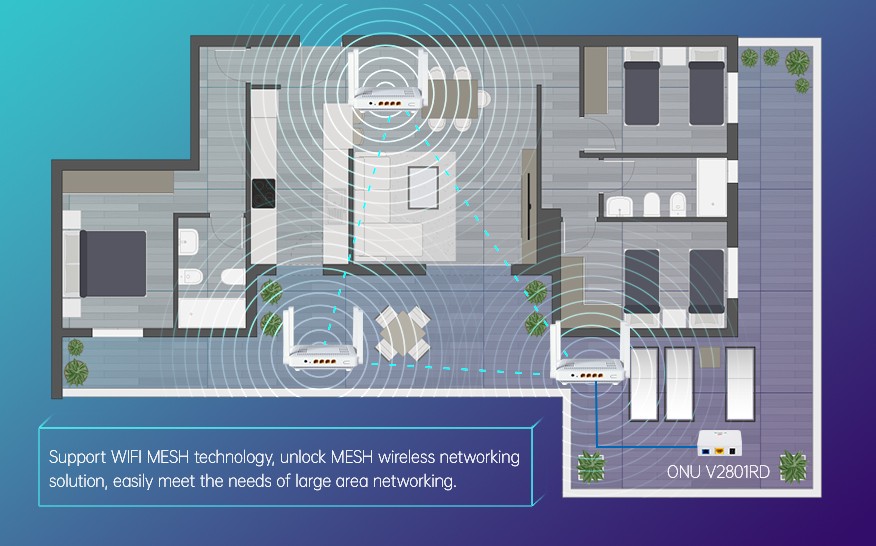

| Wireless function | • Support OFDMA • Support MU-MIMO • Support Mesh Networking and beamforming • Support dual frequency integration |
| ○ Software Data | |
| Internet access | PPPoE, DHCP, Static IP |
| IP protocol | IPv4 & IPv6 |
| Software upgrade | • All-inclusive upgrade • Web page upgrade • TR069 upgrade |
| Working mode | Bridge Mode, Routing Mode, Relay Mode |
| Routing mode | Support static routing |
| TR069 | • HTTP/HTTPS • Support downloading and extracting the ACS configuration file • Support device configuration download • Support query/configuration parameters • Support remote upgrade • Support remote debugging • Support tour monitoring |
| Security | • Support NAT function • Support firewall function • Support DMZ • Support setting automatic DNS and manual DNS |
| Others | • Support Ping \trace route\ tcpdump • Language can be customized • Supports dual accounts for administrator and user management, presenting different interfaces and content. • Support current configuration backup and recovery • Support to export the log of device operation • Network connection status |
