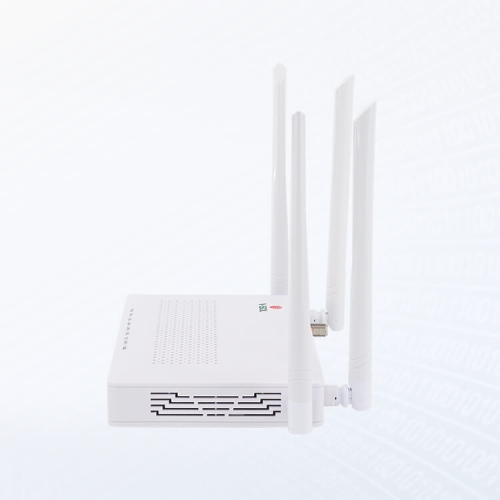

2GE+CATV+USB3.0+WiFi ONU

Name: 2GE+CATV+USB3.0+WiFi ONU
Brand: V-Solution Indonesia
SKU: V2802ACT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V2802ACT

V2802ACT (2GE+WiFi5+CATV XPON ONT) is designed to meet the FTTH and triple play service requirements of fixed network operators. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
The ONT has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies with the China Telecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah, ITU-T G.984, etc.

Size: 178mm×120mm×30mm(L×W×H)

Weight: 0.28Kg

INQUIRY

Description parameters Download

Gigabit Fiber XPON CATV ONT

XPON | Gigabit-LAN | CATV RF | USB3.0

EasyMesh: Smart, Extended Coverage Home WiFi

Support IPv6 and MU-MIMO Technology

Say goodbye to network lag, multiplayer online without lag

AC1200 Dual Gigabit Interfaces for
Gigabit Broadband Access Applications

CATV with AGC

Remote Control CATV On/Off

○ Hardware Parameter
Dimension	178mm×120mm×30mm(L×W×H)
Net weight	0.28Kg
Operating condition	Operating temp: 0 ~ +55°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V,1.5A, external AC-DC power adaptor
Power supply	≤12W
Interface	2GE+WiFi5+CATV+USB3.0
Indicators	PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, CATV, USB

○ Interface parameter
PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM TX wavelength: 1310nm RX wavelength: 1490nm, 1550nm(CATV)
CATV interface	Optical receiving wavelength: 1550±10nm RF frequency range: 47～1000MHz Optical power input range: 0～-3dBm RF output impedance: 75Ω RF output level: 50～60dBuV(0～-3dBm optical input with AGC) MER: ≥32dB(-3dBm optical input)
WiFi interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
LAN interface	2*GE,Auto-negotiation,RJ45 ports
USB interface	USB3.0 For Printer&Storage

○ Function Data
Management	OAM/OMCI, Telnet, WEB, TR069 Support full management of ONT functions by VSOL OLT
Data Service Functions	Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy Support bridge, router and bridge/router mixed mode IP address assignment: dynamic PPPoE/DHCP Client and static IP
Wireless	Integrated 802.11b/g/n/ac(WIFI5) Support Easymesh protocol Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK,16QAM and 64QAM

Datasheet

XPON ONT V2802ACT Datasheet V2.1-EN
