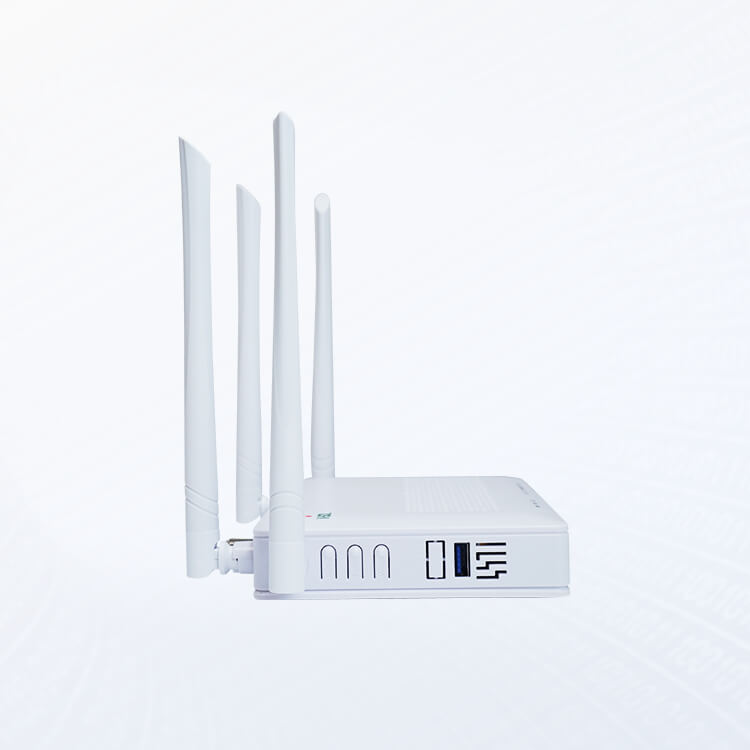

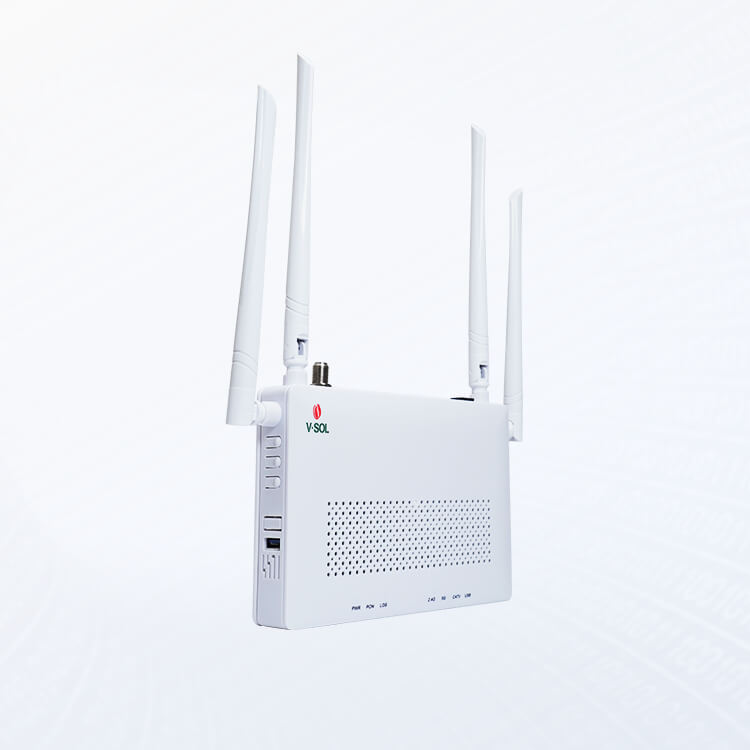

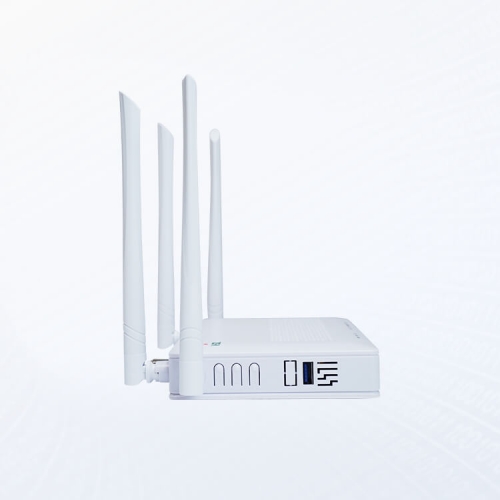

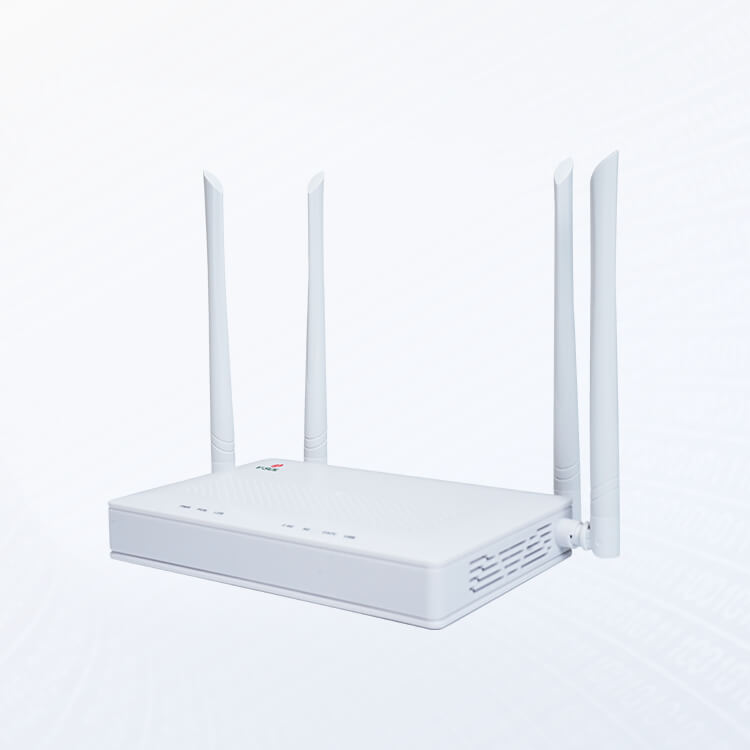

4GE+CATV+USB3.0+WiFi ONU

Name: 4GE+CATV+USB3.0+WiFi ONU
Brand: V-Solution Indonesia
SKU: V2804ACT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V2804ACT

V2804ACT (4GE+WiFi5+CATV+USB3.0 XPON ONT) is designed to meet the FTTH and triple play service requirements of fixed network operators. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
The ONT has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies with the China Telecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah, ITU-T G.984, etc.

INQUIRY

Description parameters Product videos Download

Gigabit Fiber XPON CATV ONT

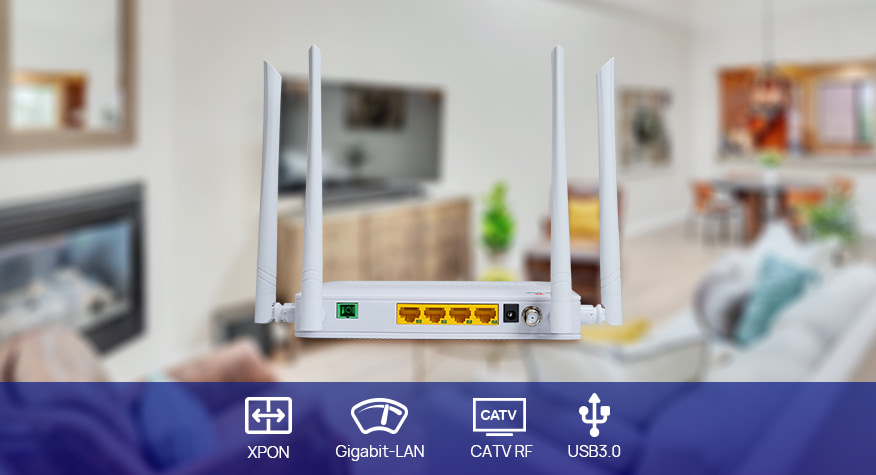

XPON | Gigabit-LAN | CATV RF | USB3.0

Better Choice for Home/Hotel

XPON+4*GE+WiFi 5+USB 3.0+CATV

Rich Interface, Gigabit Data Experience

Support IPv6 and MU-MIMO Technology

Say goodbye to network lag, multiplayer online without lag

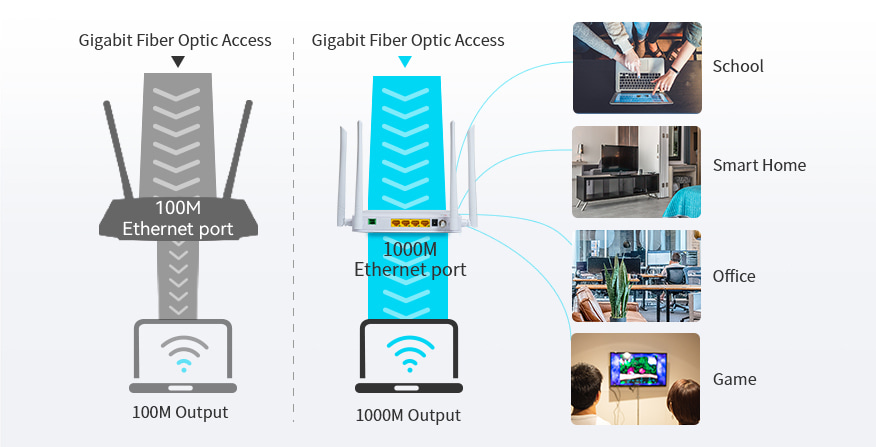

AC1200 Dual Gigabit Interfaces for
Gigabit Broadband Access Applications

CATV with AGC

Remote Control CATV On/Off

○ Hardware Parameter
Dimension	178mm×120mm×30mm(L×W×H)
Net weight	420g
Operating condition	Operating temp: 0°C ~ +50°C Operating humidity:10% ~ 90%（non-condensing）
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V/1A
Power supply	12W

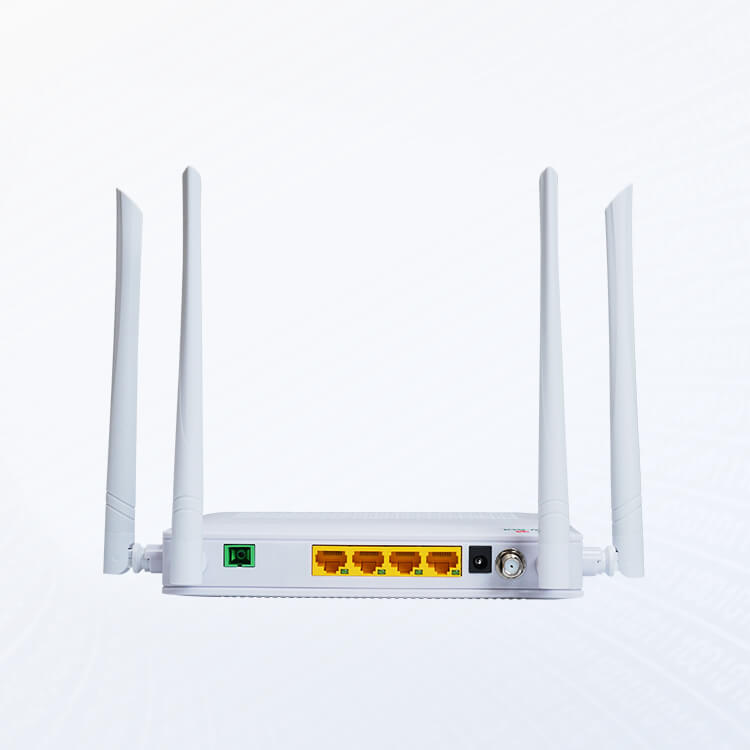

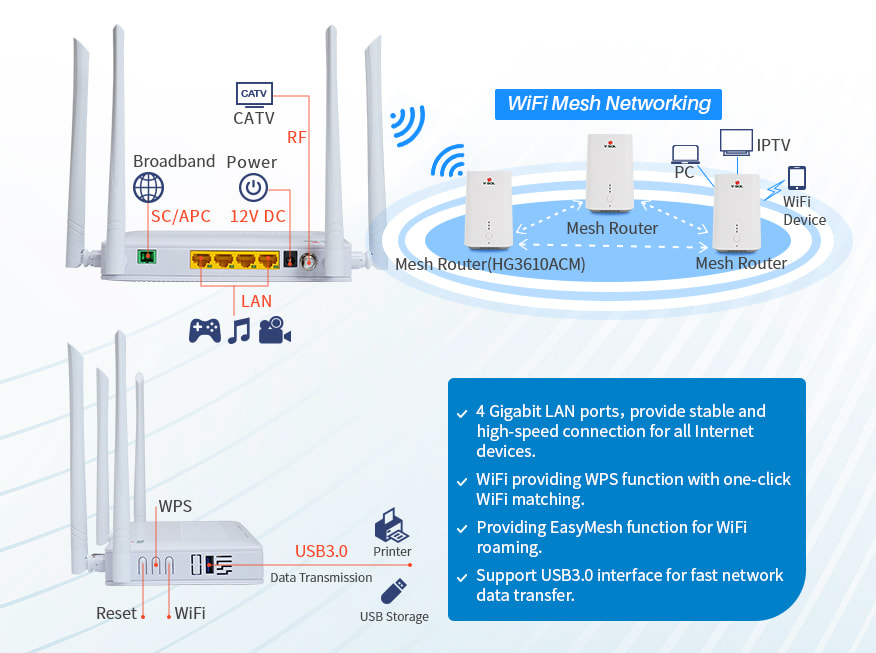

Interface	4GE+CATV+USB3.0+WiFi
LED Indicators	11 For Status of POWER、LOS、PON、 LAN1～4、2.4G、5.0G、USB、CATV
USB	1 x USB3.0

○ Interface parameter
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤ -28dBm Transmitting optical power: 0～+4dBm Transmission distance: 20KM
Wavelength	Tx 1310nm,Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
USB interface	USB 3.0, Transmission Rate: 4.8Gbps
WLAN interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz (WiFi4) 5.0GHz Operating frequency: 5.150-5.825GHz (WiFi5 wave 2) WiFi: 2*2 MIMO, 5dBi antenna, rate up to 1.167Gbps, Multiple SSID TX power: 11n--22dBm/11ac--24dBm
CATV interface	RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level and AGC range: 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / 79dbuv@-2~-12dBm /77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / 73dbuv@-5~-15dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)

○ Function Data
Management	OAM/OMCI,Telnet,WEB,TR069 Support full management of HGU functions by VSOL OLT
Mode	Support bridge, router and bridge/router mixed mode
Data Service Functions	Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc. Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless	Integrated 802.11b/g/n/ac Support max 128 users Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
Security	Support NAT, Firewall Support IPv4/IPv6 dual stack Support SIP Protocol
Other funtion	Integrated OAM/OMCI remote configuration and maintenance function Support rich QinQ VLAN functions and IGMP snooping multicast features

Datasheet

XPON ONT V2804ACT Datasheet-V1.0-EN
