Product introduct

ICT3310D series product is a broadband access device designed to meet the needs of users for multiple business integration.
ICT3310D-8G8S2NAC product is based on the PON technology mature and stable, high cost performance, combined with 802.11ac wireless technology (2T2R), LAN switch technology and high quality VoIP technology, high reliability, easy management and good Quality of Service (QoS) guarantees, etc.

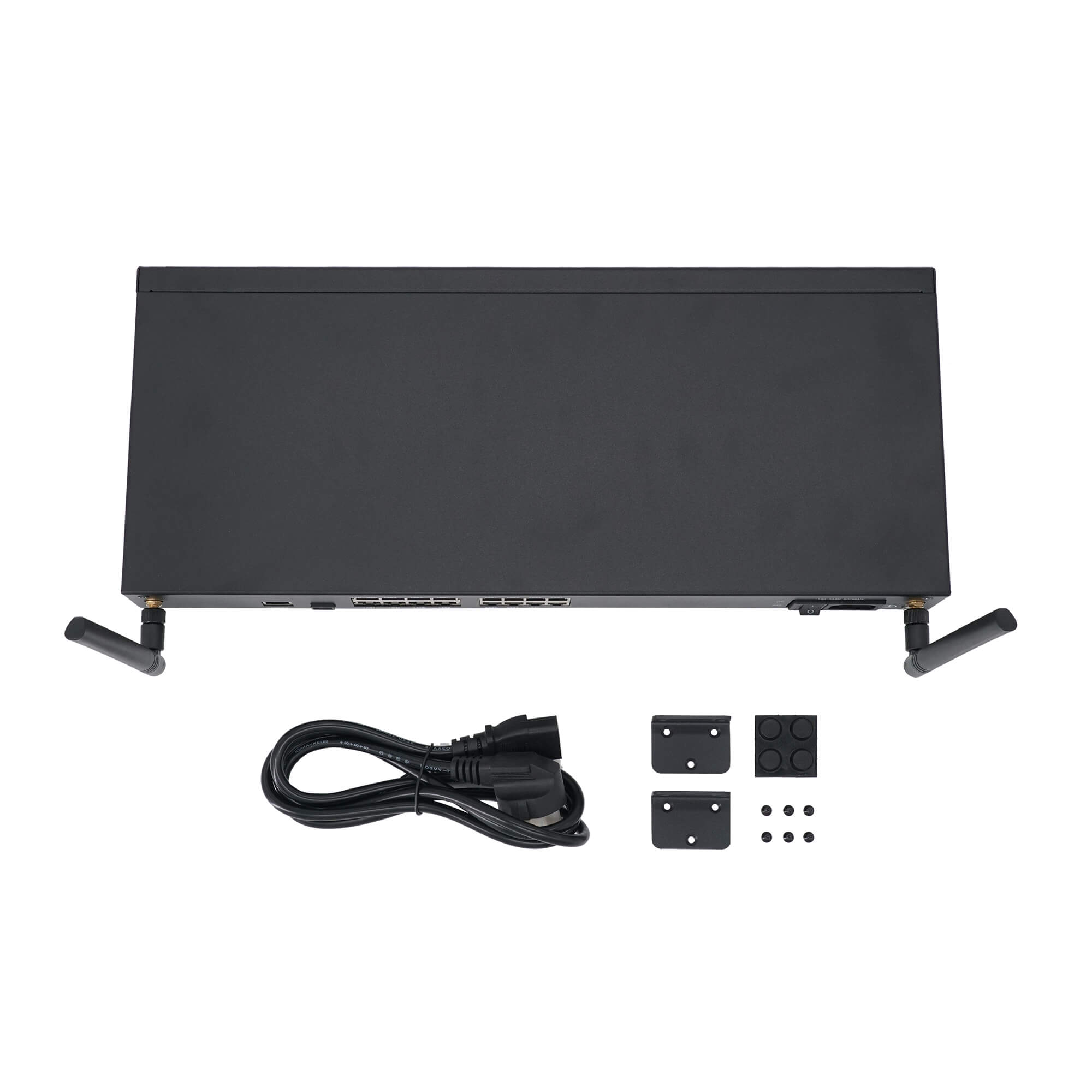

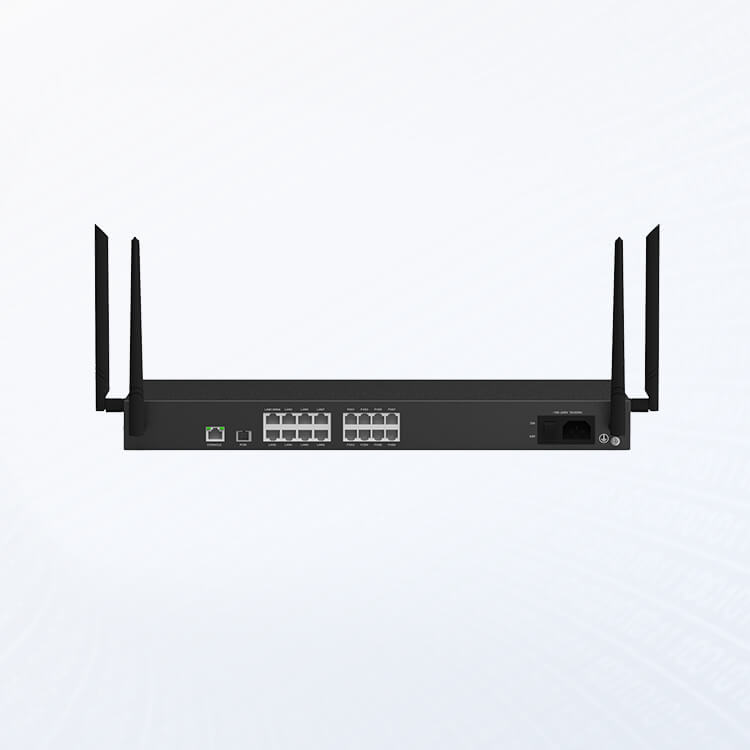

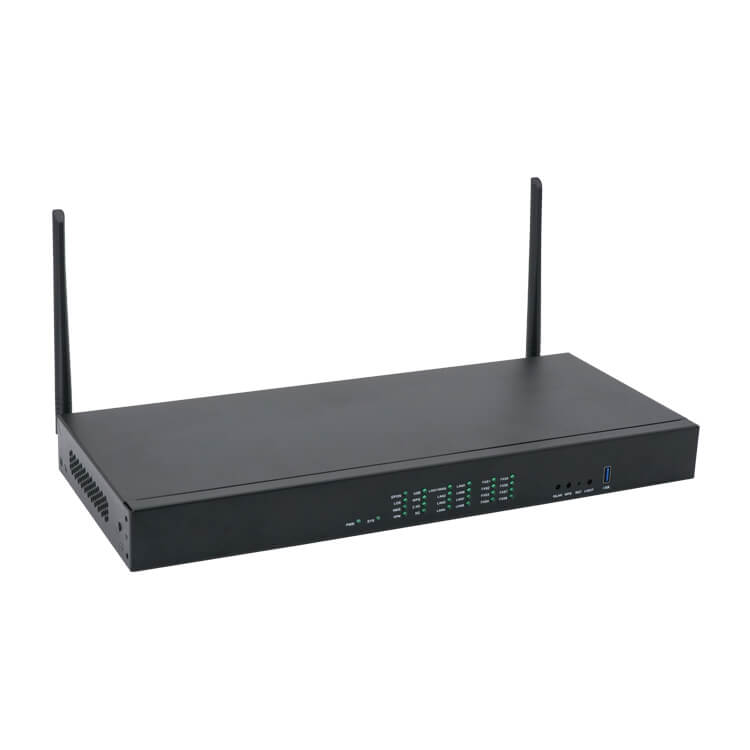

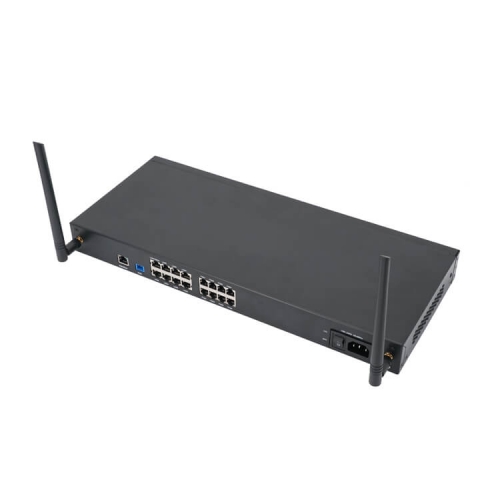

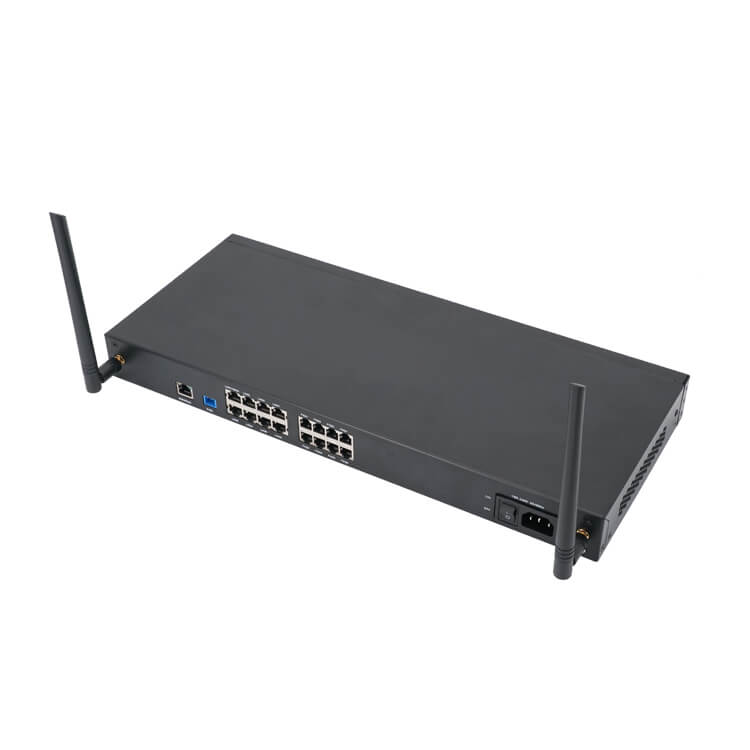

Product display



Technical Specifications

▶ Power adapter input: 220V AC, 50HZ
▶ System power supply: See the nameplate on the device 
▶ Ambient temperature: -5 ~ +55℃ 
▶ Ambient humidity: 10% ~ 90%(non-condensing) 
▶ Store temperature: -30 ~ +60℃ 
▶ Store humidity: 10% ~ 90%(non-condensing)

For other technical specifications, see the following table：

Model	Dimension （L * W * H）	Power	Power Consumption
ICT3310D-8G8S2NAC (steel shell)	442*185*43.6mm	220V AC	35W

Compatibility

Manufacturers	Model	Compatibility
HuaWei	M5680T(M5600T Oversea)	Fully compatible
ZTE	C320/300/C220
FiberHome	AN5516 Series
Gcom(New GreenNet)	EL5600-04P/08P

Technical Parameter

Parameter	Hardware Parameter
	XPON
Chipset	RTL9607CP
PON	SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Sensitivity	<-27dBm(CLASS B+)
Optical Type	SC/PC
Interface Type	8 *10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector, 8POTS, RJ11 connector
WiFi Interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 2T2R,5dBi external antenna Support: multiple SSID TX power: 11n--20dBm/11ac--23dBm
Indicators	26, For POWER / SYS / CONSOLE / USB / PON / Lan / Phone/WLAN



Parameter Name	Software Parameter
	XPON
LAN	Support Port rate limiting
WAN	Support config first LAN interface as wan interface
WLAN	Integrated 802.11b/g/n/ac Support max 128 users Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode
Multicast	Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
L3	Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server
DHCP	Support DHCP Server Support DHCP Relay
VoIP	Support SIP protocol Support Voice coding: ITU-T G.711A/G.711U/G.722/G.729, auto-negotiate with call agent Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax/Modem, bypass fax, and T38 fax Support InBand / RFC2833/INFO DTMF, MD5 authentication, call forward,call waiting, hot-line call, and all kinds of additional service. Three-party conferencing
Performance	Data loss: <1*10E-12 Call loss: <0.01%
Security	Support Firewall Support Mac filter Support ACL Support URL filter
Management	Support OMCI(ITU-T G.984.x) Support CTC OAM 2.0 and 2.1
	Support WEB Support TR069 Support TELNET Support CLI
Application	Support l2tp andIpsec VPN Support EOIP Support VxLan Support Web Push
