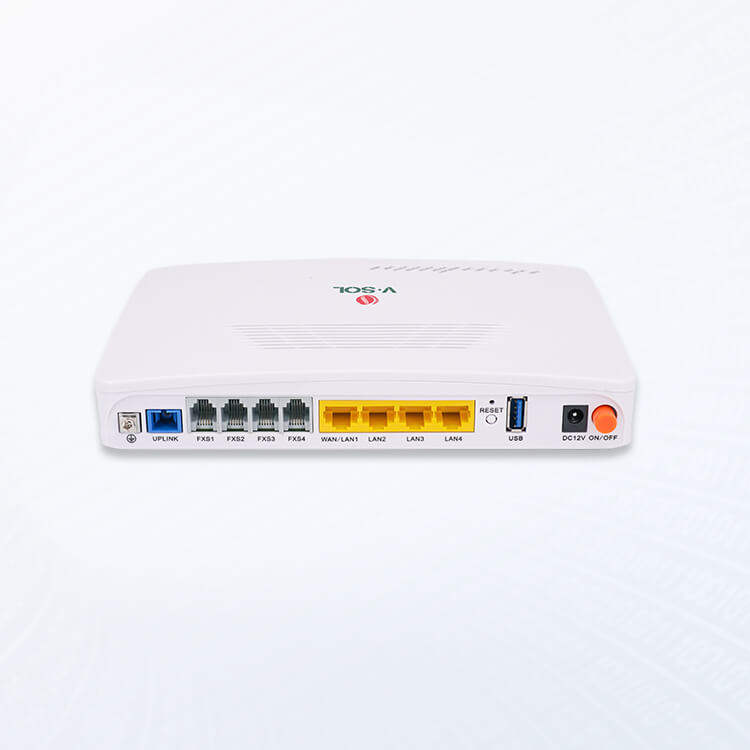

1GPON+4GE+4POTS ICT

Name: 1GPON+4GE+4POTS ICT
Brand: V-Solution Indonesia
SKU: ICT3310D-4G4S
Availability: InStock
Rating: 5 (1 reviews)

Item No.: ICT3310D-4G4S

ICT3310D series product is a broadband access device designed to meet the needs of users for multiple business integration.
ICT3310D-4G4S2NAC product is based on the PON technology mature and stable, high cost performance, combined with LAN switch technology and high quality VoIP technology, high reliability, easy management and good Quality of Service (QoS) guarantees, etc.

Material: ABS Plastic

Size: 205mm*140mm*37mm(L*W*H)

Weight: 3.3kg

INQUIRY

Description parameters Video Download

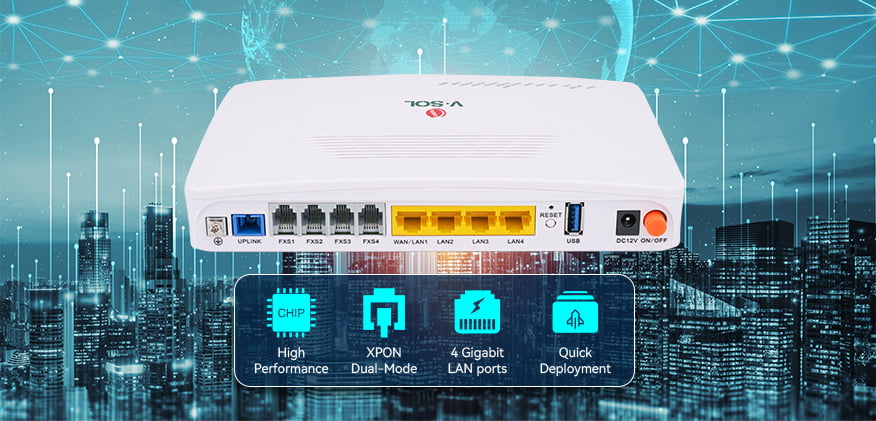

xPON MDU ICT3310D-4G4S

4×GE+4×POTS

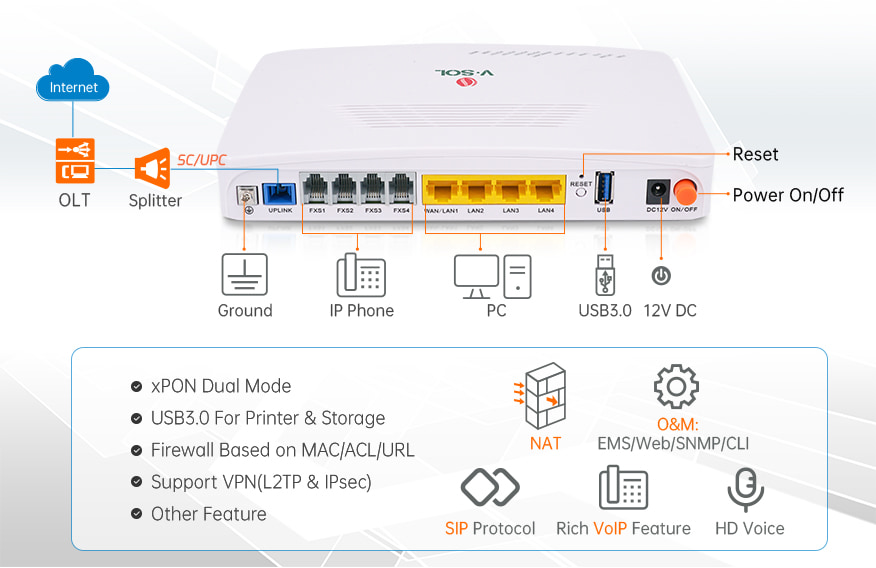

More Service Interface Features

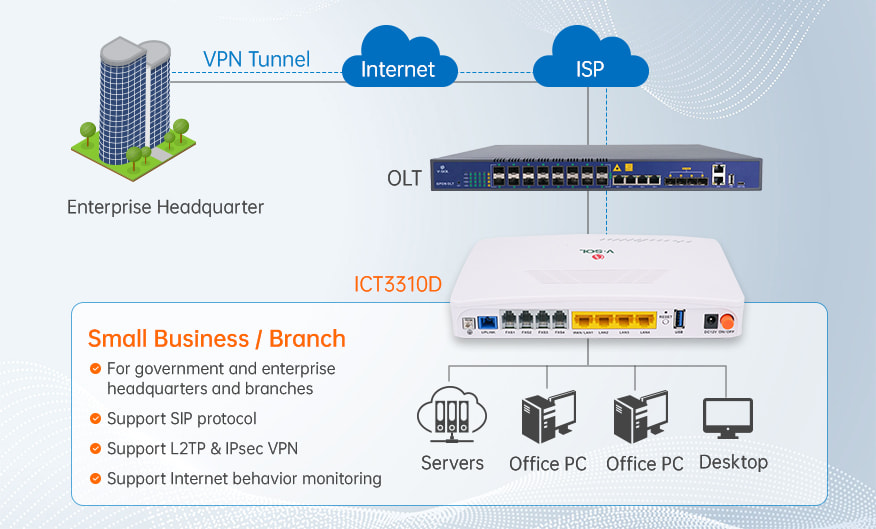

Application scenarios

○ Hardware Parameter
Dimension	205mm×140mm×37m(L×W×H)
Net weight	0.5kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 95% (non-condensed)
Power adapter	DC 12V, 1.5A, external AC-DC, power adaptor
Power supply	≤18W
Interfaces	4GE+4POTS+USB 3.0

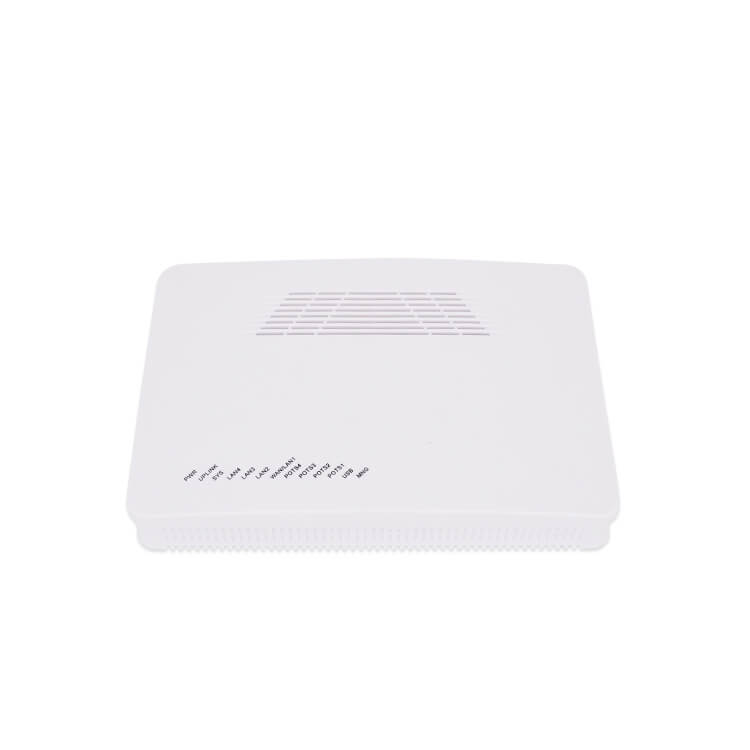

Indicators	PWR, SYS, UPLink, LOS, WAN/LAN1, FXS1~FXS4, LAN2~LAN4, LINK, USB

○ Interface parameter
PON interface	1XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
LAN interface	2*GE, Auto-negotiation RJ45 connectors
POTS interface	4*RJ11 connectors
USB interface	USB 3.0 For Shared Storage/Printer

○ Function Data
LAN	Support port rate limiting
WAN	Support set the LAN1 interface as WAN interface
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode
Multicast	Support IGMPv1/v2/v3/Proxy/Snooping and MLD Proxy/Snooping
QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
L3	Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route, NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ, DNS, ALG, UPnP Support Virtual Server
DHCP	Support DHCP Server and DHCP Relay
VoIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
Security	Support Firewall based on Mac/ACL/URL
Management	Support OMCI(ITU-T G.984.x) & CTC OAM 2.0 and 2.1 Support WEB/TR069/TELNET/CLI
Application	Support L2TP & IPsec VPN Support EoIP Support VxLan Support Web Push

Datasheet

XPON MDU ICT3310-4G4S Datasheet-V2.1-EN
