4GE+1POTS+WiFi XPON HGU

Name: 4GE+1POTS+WiFi XPON HGU
Brand: V-Solution Indonesia
SKU: HG325N
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HG325N

HG325N (4GE+1POTS+WiFi 4 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n WiFi 4 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

Material: ABS Plastic

Size: 205mm×140mm×37mm(L*W*H)

Weight: 0.34kg

INQUIRY

Description parameters Download

802.11n 300M Wireless Router

4GE+1POTS+WiFi 4 | 2*5dBi High Gain External Antennas

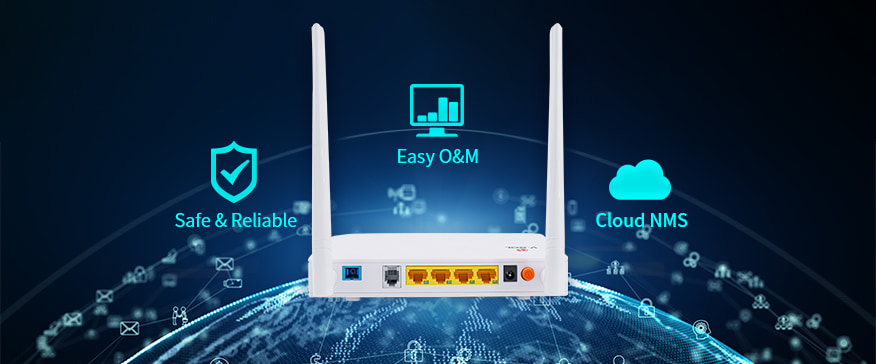

Rich Business Interface

ZTE+MTK Solution， Better Choice

Wider Coverage with 2×5dBi High Gain Antennas

2.4GHz signal transmission with 2 external 5dBi high gain antennas, make the signal coverage wider and stronger through the wall.

○ Hardware Parameter
Dimension	205mm×140mm×37m(L×W×H)
Net weight	0.34Kg
Operating condition	Operating temp: 0 ~ +50°C Operating humidity:5 ~ 90%(non-condensed)
Storing condition	Storing temp: -30 ~ +75°C Storing humidity: 5 ~ 90% (non-condensed)
Power adapter	DC 12V,1/1.5A,external AC-DC power adaptor
Power supply	≤10W
Interfaces	4GE+1POTS+WiFi 4
Indicators	PWR, PON, LOS, WAN, FXS, ETH1~EH4, WPS, WIFI

○ Interface parameter
PON interface	1XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
WIFI interface	Compliant with IEEE802.11b/g/n Rate up to 300Mbps, 2T2R, 5dBi external antenna Support: multiple SSID Support 13 Channels
LAN interface	4*GE, Auto-negotiation,RJ45 ports
Pots interface	1*FXS, RJ11 connector

○ Function Data
XPON mode	Dual mode , Can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc)
Connect Mode	Routing mode
WiFi	IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm) WiFi Authentication : WEP/WAP-PSK(TKIP) /WAP2-PSK(AES)
Firewall	DDOS, Filtering Based on ACL/MAC/URL
Layer2	802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN
Layer3	IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS
Multicast	IGMP v1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
VoIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
O&M	WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol Unified network management of VSOL OLT

Datasheet

XPON HGU HG325N Datasheet_v1.0
