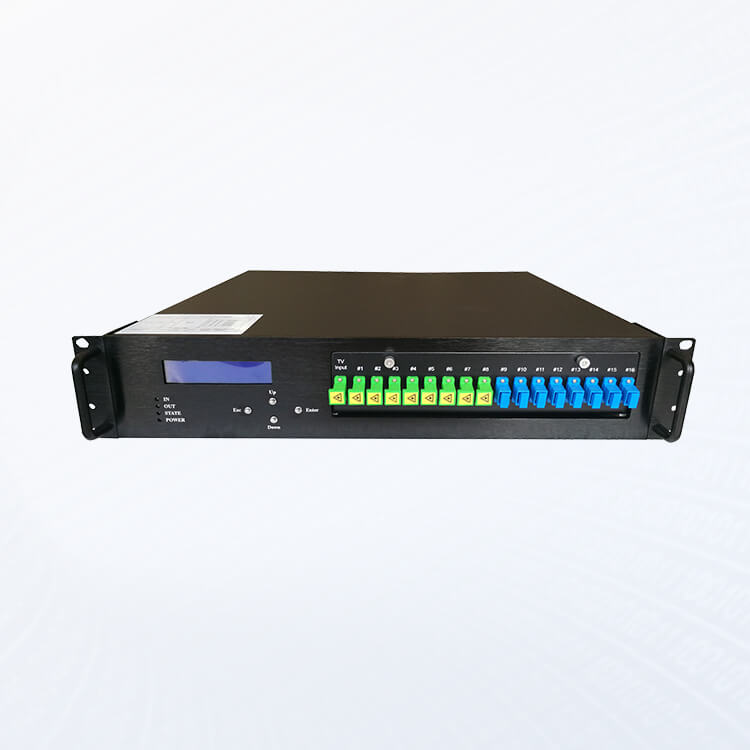

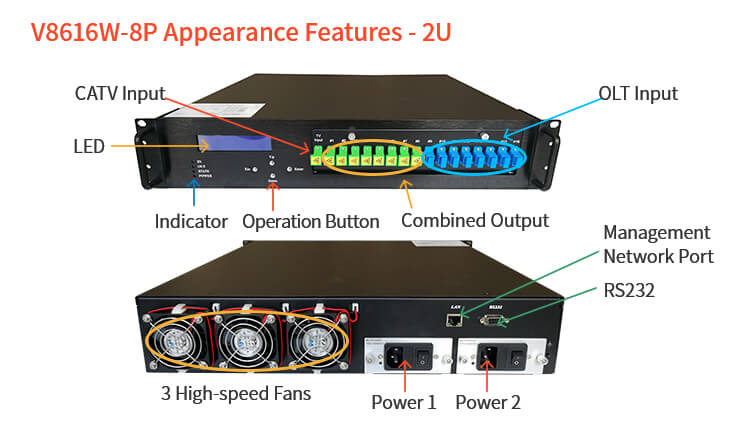

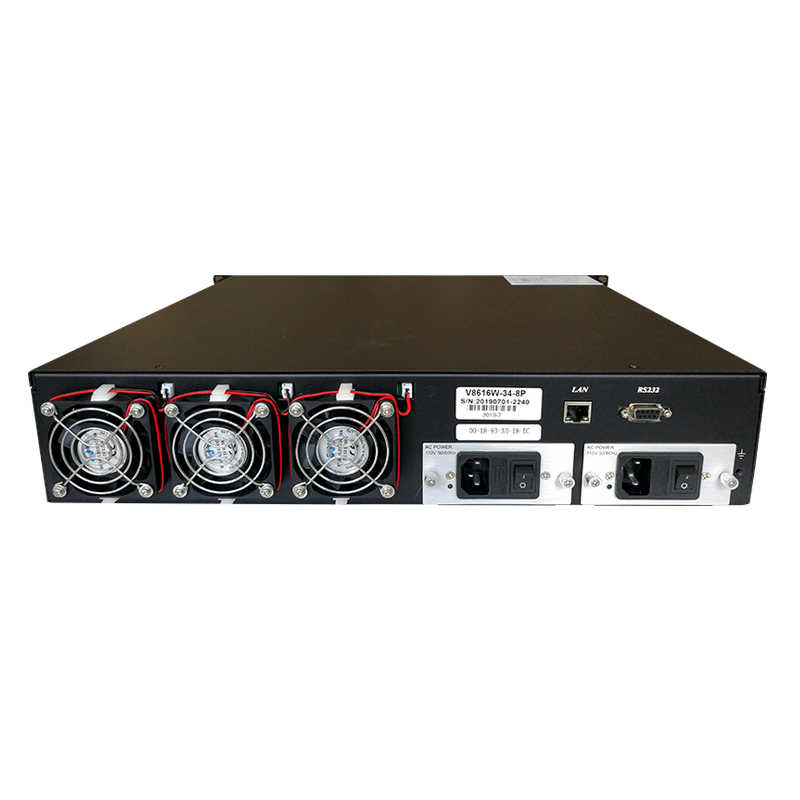

| Product introduction |
| Functional characteristics |
| Special Features |
► Standard 19 inch 2U Rack YEDFA
► 8 output ports with WDM
► Output powers rang 8*17, 8*19, 8*22dBm
► Output optical power adjustable -3~0dB
► Wide input dynamic range(0 to +10dBm)
► High Isolation input & output(30dB for max)
► Web browser management
► Automatic Power Control (APC) or Automatic Current Control (ACC)
► LCD front panel display for local monitor
► Remote management via SNMP (Ethernet Interface)
| Series Parameters |
| 4port | 8port | 16port | 32port | |
| no WDM |  V8616-4P |
 V8616-8P |
 V8616-16P |
 V8616-32P |
| with WDM |  V8616W-4P |
 V8616W-8P |
 V8616W-16P |
 V8616W-32P |
| Dimension (H x W x D) (mm) |
44×483×422 | 44×483×422 | 88×483×422 | |
| 88×483×422 | ||||
| Weight(kg) | 5.5 | 5.5 | 11.5 | 11.7 |
| 11.5 | ||||
| Output of Port(dBm) | V8616(W)-24-4P:4*17 V8616(W)-27-4P:4*19 V8616(W)-30-4P:4*21 |
V8616(W)-29-8P:8*17 V8616(W)-31-8P:8*19 V8616(W)-34-8P:8*22 |
V8616(W)-31-16P:16*16 V8616(W)-34-16P:16*19 V8616(W)-36-16P:16*22 |
V8616(W)-34-32P:32*16 V8616(W)-36-32P:32*19 V8616(W)-40-32P:32*22 |
| LD Bias Alarm Range (mA) | V8616(W)-24-4P: >1000mA,<2800mA V8616(W)-27-4P: >1000mA,<3000mA V8616(W)-30-4P: >1500Ma,<3500mA |
V8616(W)-29-8P: >1000mA,<2800mA V8616(W)-31-8P: >1000mA,<3000mA V8616(W)-34-8P: >1500Ma,<3500mA |
V8616(W)-31-16P: >1000mA,<3300mA V8616(W)-34-16P: >1500mA,<4800mA V8616(W)-36-16P: >1800mA,<4600mA |
V8616(W)-34-32P: >1500mA,<4800mA V8616(W)-36-32P: >1800mA,<4600mA V8616(W)-40-32P: >1800mA,<4600mA |
| Technical Parameters |
| Description | Unit | Value | Conditions / Notes |
| EDFA Optical Specifications | |||
| Fiber Connector | nm | TV input:1550nm COM:1550/1490/1310nmSC/APC |
OLT:1310/1490nm SC/UPC |
| Optical Wavelength | nm | 1540 ~1560 | |
| Input Power | dBm | 0~+10 (1550nm) | Recommend ≥3dBm |
| Output Power | dBm | V8616W-29-8P: 8*16 V8616W-31-8P: 8*19 V8616W-34-8P: 8*22 |
WDM optional |
| Laser Bias Current (V8616W-29-8P) |
Pump | 8*16dBm 1800mA±200mA @+6dBm input |
Alarm range: >1000mA,<3000mA |
| Laser Bias Current (V8616W-31-8P) |
Pump | 8*19dBm 2000mA±200mA @+6dBm input |
Alarm range: >1000mA,<3300mA |
| Laser Bias Current (V8616W-34-8P) |
Pump | 8*21dBm 2500mA±200mA @6dBm input |
Alarm range: >1500mA,<4800mA |
| Output Optical Power Stability | dB | 0.1 | @+6dBm Input |
| Noise Figure | dB | 4(max 5.8) | @+6dBm Input |
| Isolation(Input/Output) | dB | 30 | |
| Return Loss(Input/Output) | dB | 55 | |
| Polarization Dependent Gain |
dB | max 0.5 | |
| Polarization Mode Dispersion |
ps | max 0.5 | |
| Electrical Specifications | |||
| Communication Interface | RJ45 | Supporting Web and SNMP NMS | |
| Input voltage | VAC | 90-265 | +12/-48 V DC(optional) |
| Consumption | W | 50 maximum | 8*16/19/22 |
| Fuse | A | 2 | |
| Connector | IEC | Male power connector | |
| Environmental Specifications | |||
| Operating Temperature | ℃ | -5 ~50 | |
| Storage Temperature | ℃ | -20 ~85 | |
| Storage Humidity | RH% | ≤95 | No Condensation |
| Mechanical Specifications | |||
| Dimension (LxWxH) | mm | 483 *422* 88 | Carton:590*590*200 |
| Weight | kg | Net weight 11.5 gross weight :14.8 |
8 ports |
| Mounting | 19” EIA rack, 2U Rack | ||
