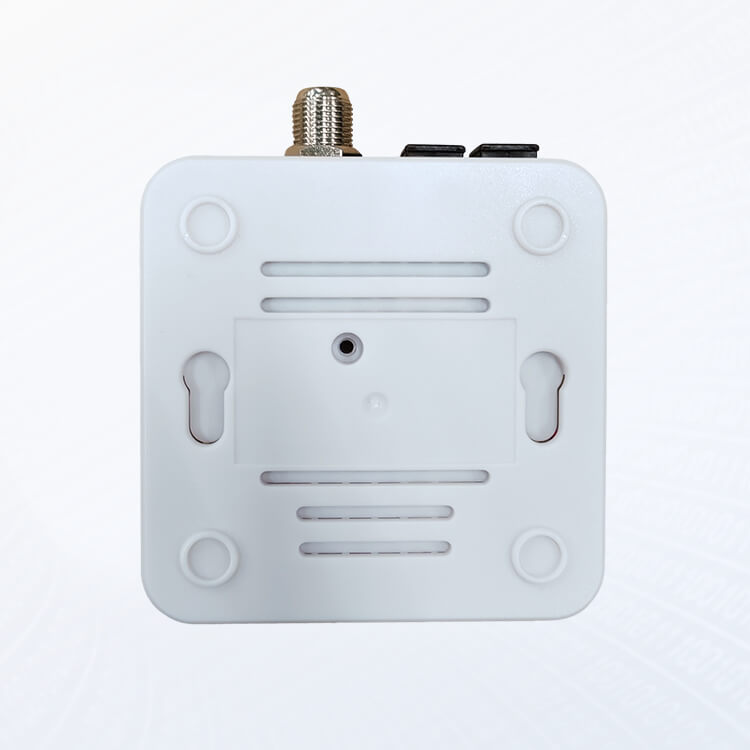

| Product introduction |

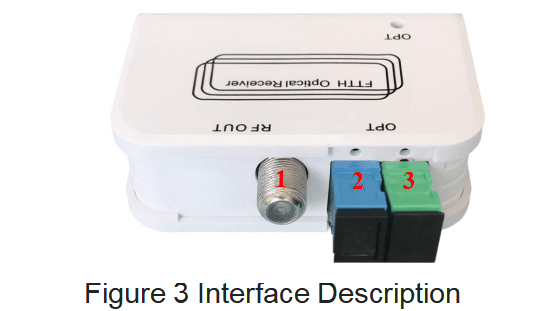

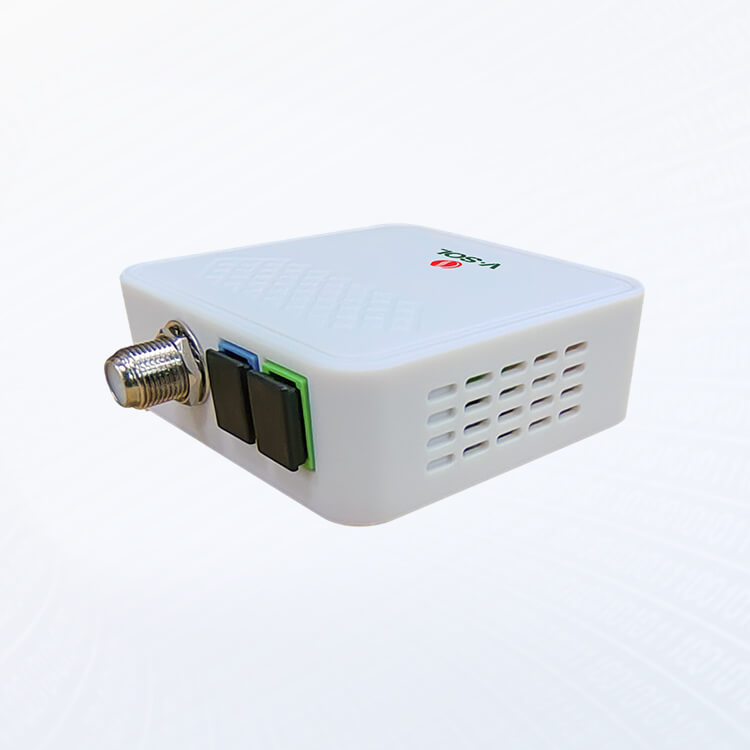

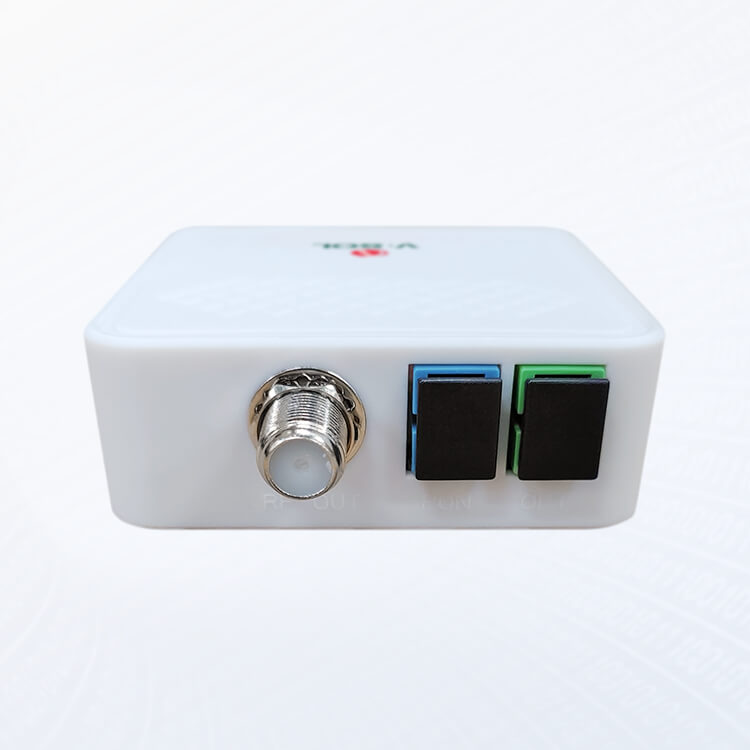

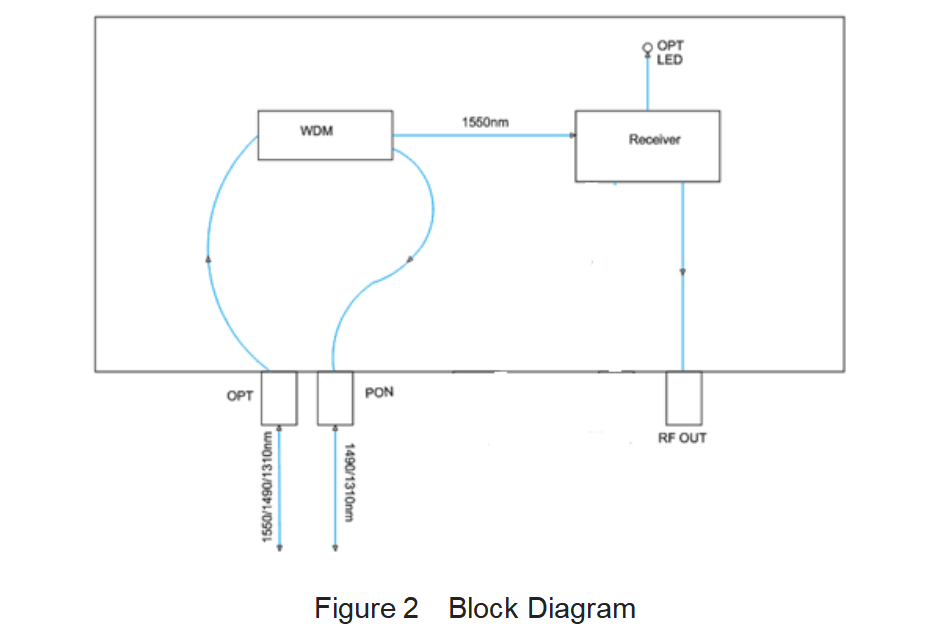

| Interface Description |
| Port Type | Function | Detailed description |
| 1 | RF OUT | RF OUT, F connector |
| 2 | PON | 1490/1310mn data interface SC/PC |
| 3 | Optical Input | 1550/1490/1310mn Optical input SC/APC |
| Special Features |
| Technical parameters |
| Description | value | Notes | ||
| Optical Characteristics | wavelength | (nm) | 1540~1563 | CATV |
| 1550/1490/1310 | Com port | |||
| 1490/1310 | For ONT | |||
| Response | (A/W) | ≥0.85 | 1310nm | |
| ≥0.9 | 1550nm | |||
| Optical Power Input Range | (dBm) | +2 ~ -9 | ||
| Optical Return loss | (dB) | ≥55 | ||
| connector | SC/APC | |||
| RF Characteristics | Bandwidth | (MHz) | 45 ~ 1050 | |
| output level | (dBμV) | >60±2 | Digital Tv（Pin＝0dBm） | |
| output impendence | (Ω) | 75 | ||
| Output port | 1 | |||
| RF connector | F connector | imperial | ||
| Digital TV link Characteristics | OMI | (%) | 4.3 | |
| MER | (dB) | ≥33 | Pin= -5dBm | |
| BER | (dB) | <1.0E-9 | Pin= -5dBm | |
| Physical Characteristics | Operating Temperature | (℃) | -20 ~ +50 | |
| Storage Temperature | (℃) | -40 ~ +85 | ||
| Working Humidity | (%) | 5 ~ 95 | ||
| Dimensions | nm | 75X 55X 28 | ||
| Application Chart |
