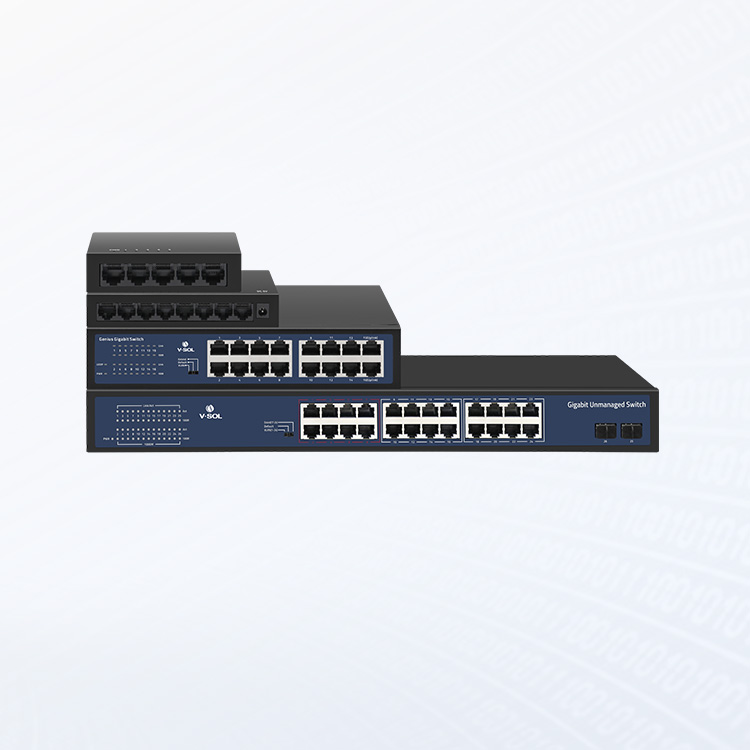

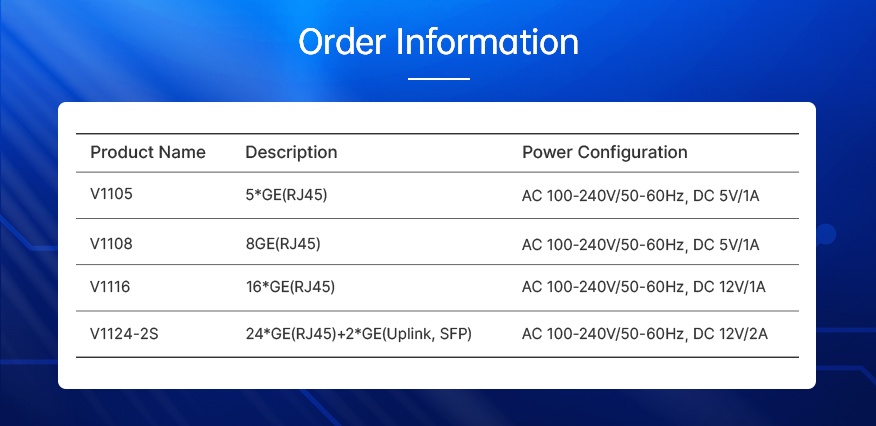

| Parameter | V1105 | V1108 | V1116 | V1124-2S | |

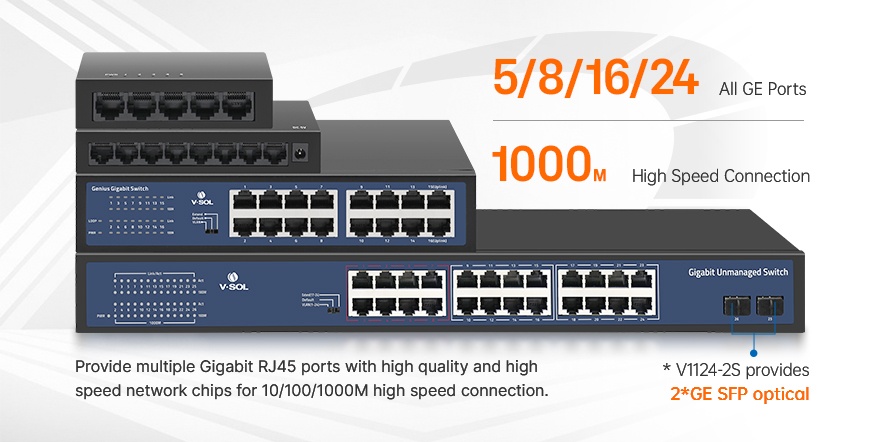

| Interfaces |

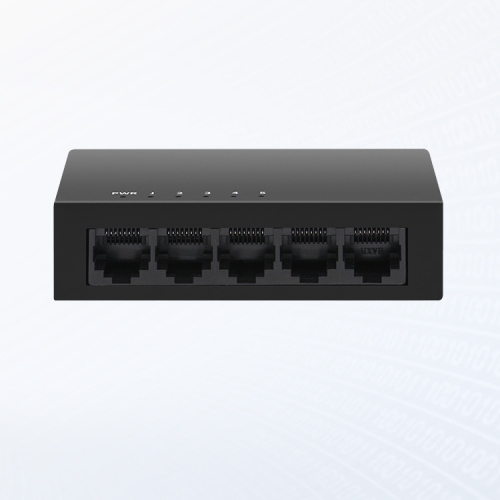

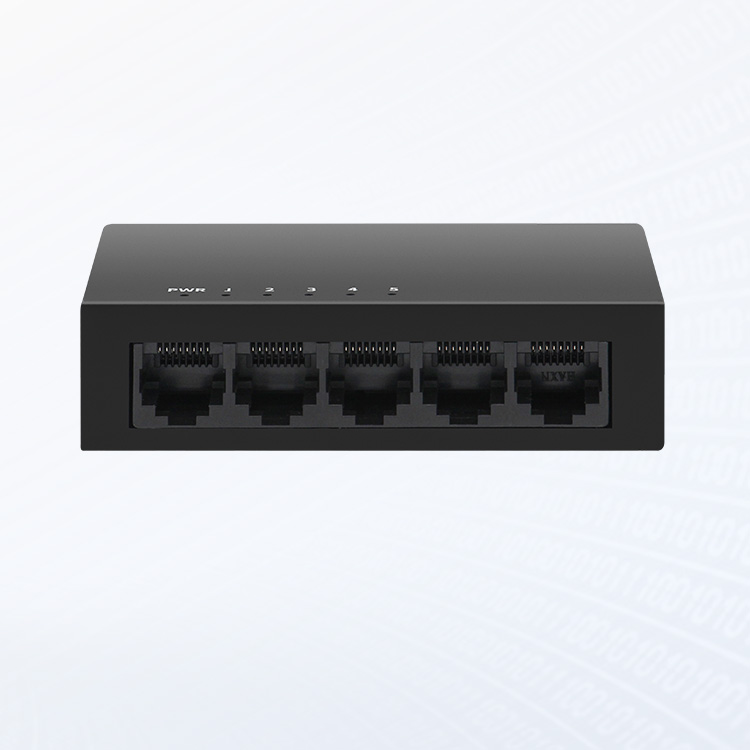

5*GE(RJ45) |

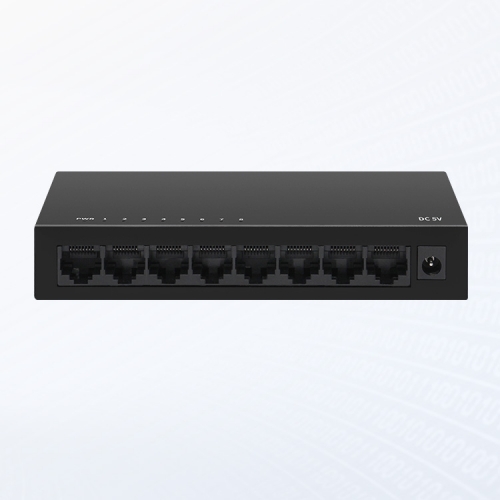

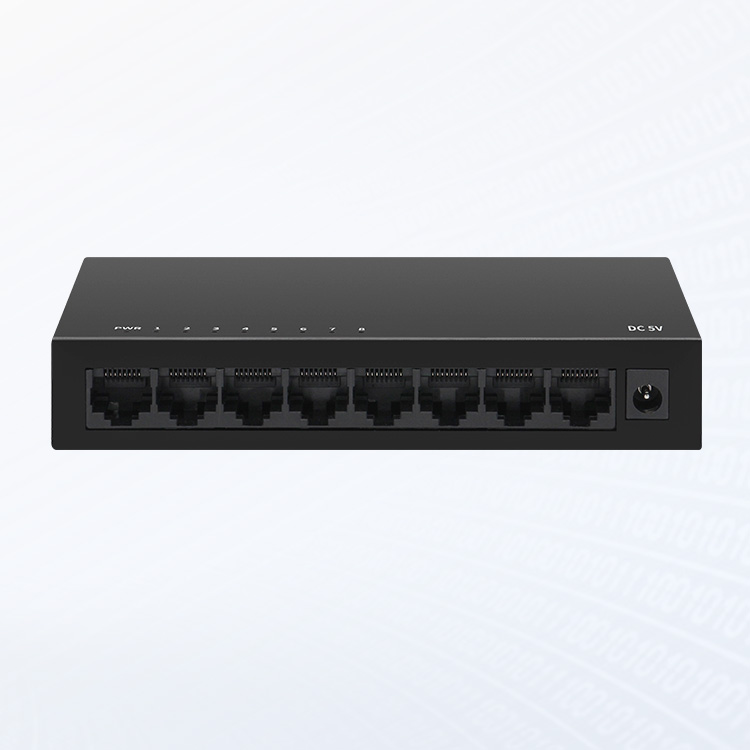

8GE(RJ45) |

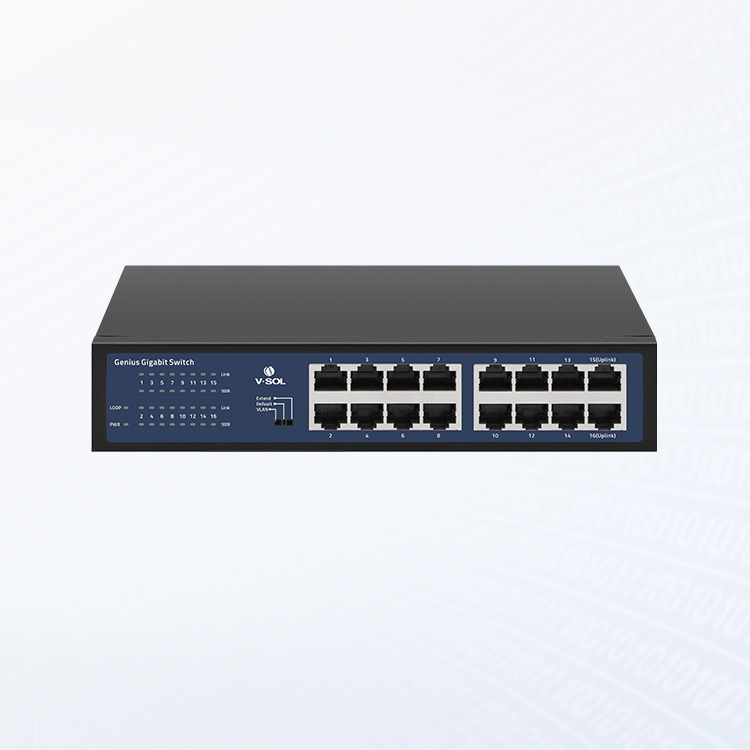

16*GE(RJ45) |

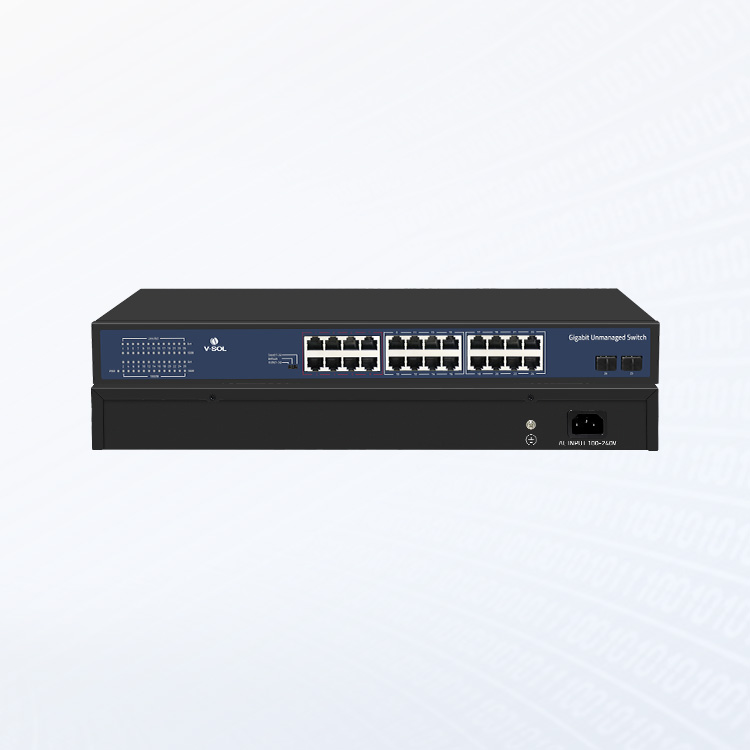

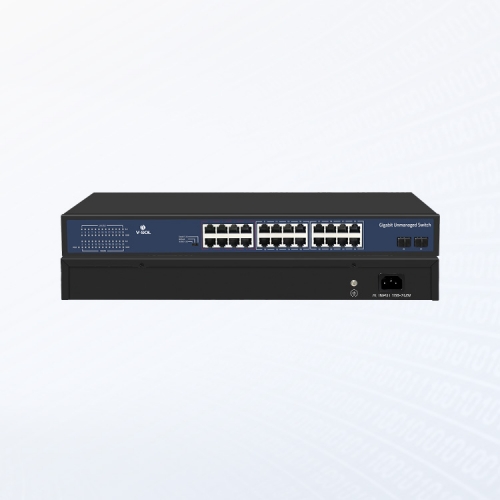

24*GE(RJ45)+ 2*GE(Uplink, SFP) |
|
| Chassis | Dimensions (L*W*H) | 87*54*23mm |
138*78*25mm |
220*161*44mm |
440*204*44mm |
| Weight (empty) | 0.130 KG |
0.241 KG |
0.900 KG |
2.360 KG |
|
| Package | Dimensions (L*W*H) | 90*88*58mm |
175*120*63mm |
315*215*85mm |
500*290*85mm |
| Weight (empty) | 0.200 KG |
0.321 KG |
1.240 KG |
2.93 KG |
|
| Switching Capacity | 10 Gbps | 16 Gbps | 32 Gbps | 52 Gbps | |
| Throughput | 7.44 Mpps | 11.9 Mpps | 23.8 Mpps | 38.68 Mpps | |
| Packet Buffer | 1M | 2.5M | 4M | 4M | |
| MAC Address | 1K | 1K | 8K | 8K | |
| Jumbo Frame | 2 Kbytes | 2 Kbytes | 4 Kbytes | 9.6 Kbytes | |
| Transfer Mode | Store and forward | Store and forward | Store and forward | Store and forward | |
| MTBF(Hours) | 100,000 | 100,000 | 100,000 | 100,000 | |
| Power Voltage |
Input Voltage | AC 100-240V/50-60Hz | AC 100-240V/50-60Hz | AC 100-240V/50-60Hz | AC 100-240V/50-60Hz |
| Power Supply | DC 5V/1A | DC 5V/1A | DC 12V/1A | DC 12V/2A | |
| Indication | PWR, Link | PWR, Link | PWR, LOOP, Link, 1000M |
PWR, Link/Act, 1000M | |
