LTE CAT6 CPE

Name: LTE CAT6 CPE
Brand: V-Solution Indonesia
SKU: XKC7241
Availability: InStock
Rating: 5 (1 reviews)

Item No.: XKC7241

XKC7241 is a highly advanced LTE indoor multi-service product solution specifically designed to meet integrated data, and IEEE802.11 a/b/g/n/ac dual band Wi-Fi access needs for residential, business and enterprise users.

INQUIRY

Description parameters

LTE Cat6 CPE | XKC7241
SmileMbb LTE CAT6 Wireless Router

4G CPE CAT 6 CPE

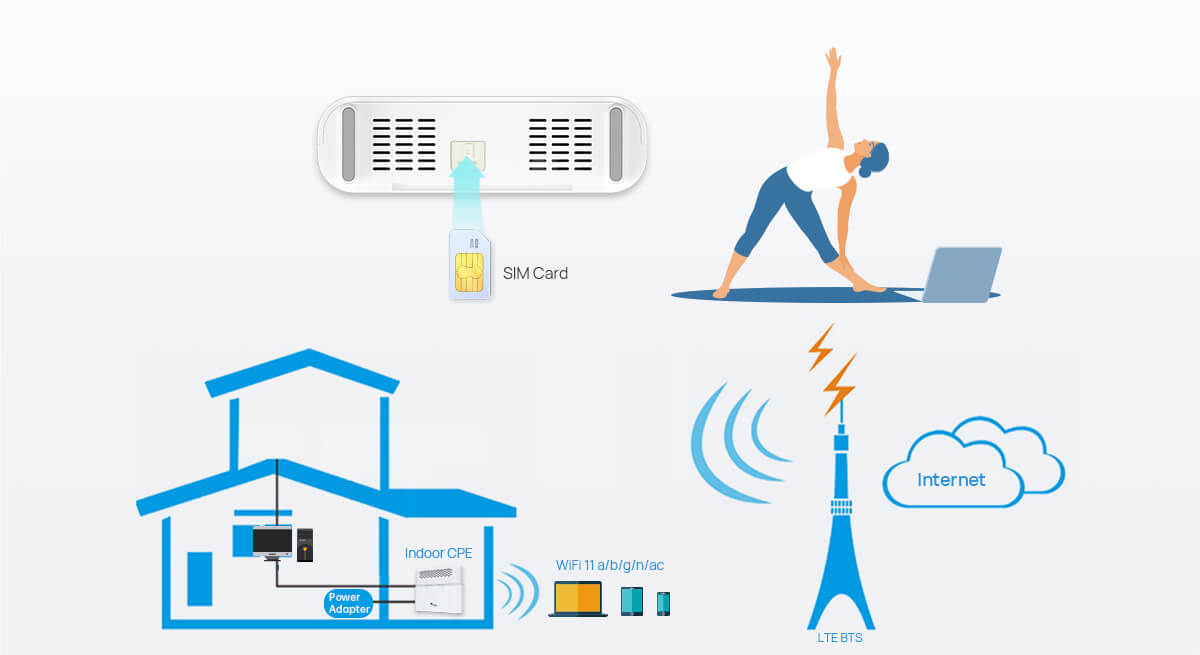

Plug & Play
WiFi Everywhere and Everytime

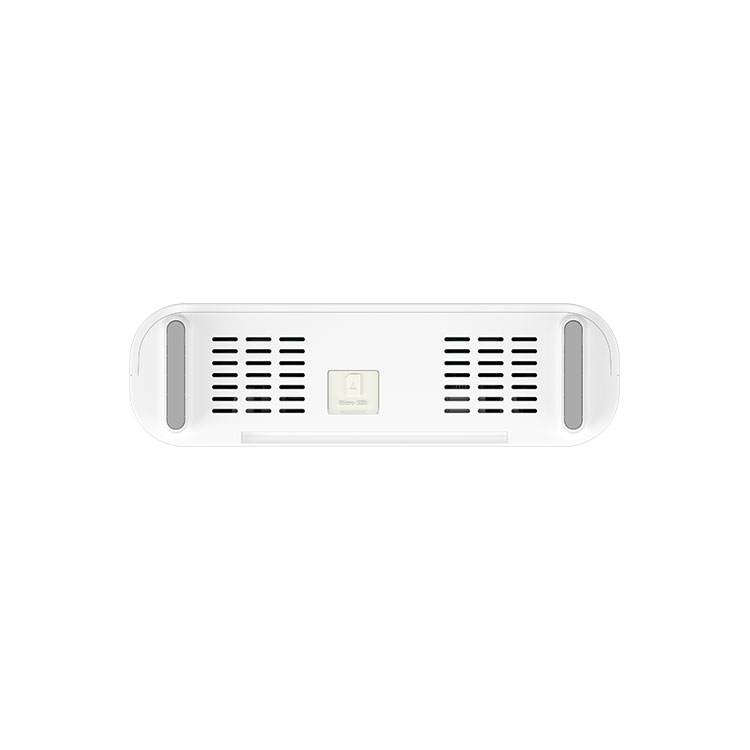

SmileMbb 4G CAT6 CPE is easy to set up, just plug in the Micro-SIM card.
Connect your phone,Notebook and other WiFi devices to the router anywhere you go.
From your living room to the gyms, high-speed WiFi follows you.

CAT 6 Router

Aplication Scenarios

4G CPE Application

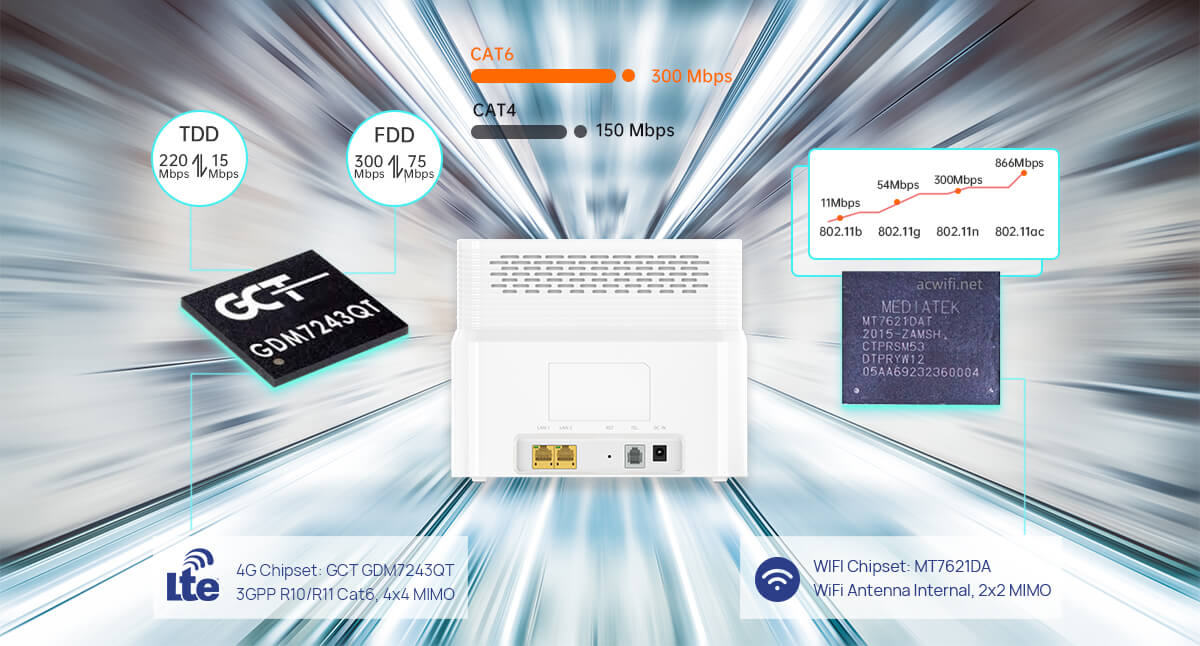

Take High-Speed Network to a New Level
Adopting 4×4 MIMO, SmileMbb 4G CAT6 CPE double the peak LTE speed to 300 Mbps.

4G LTE CPE

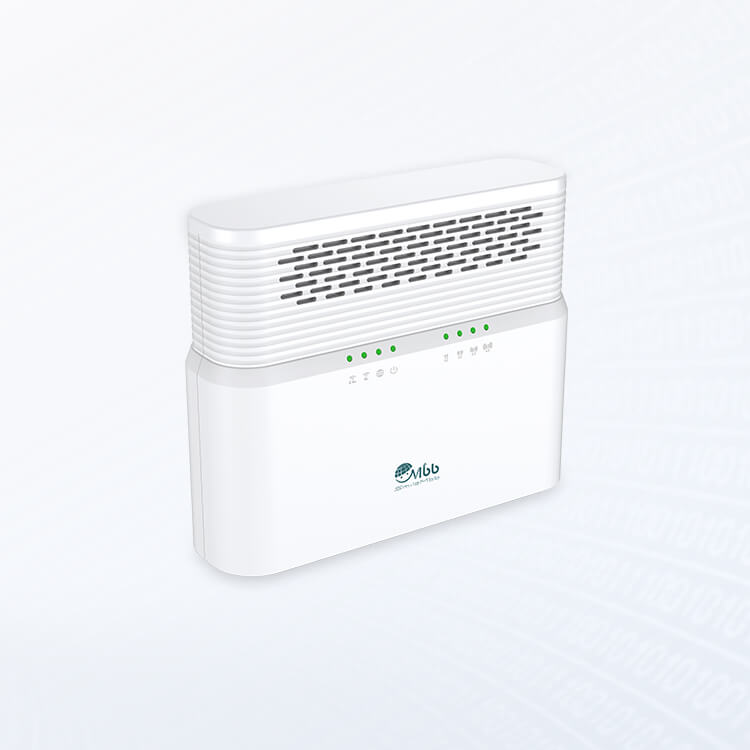

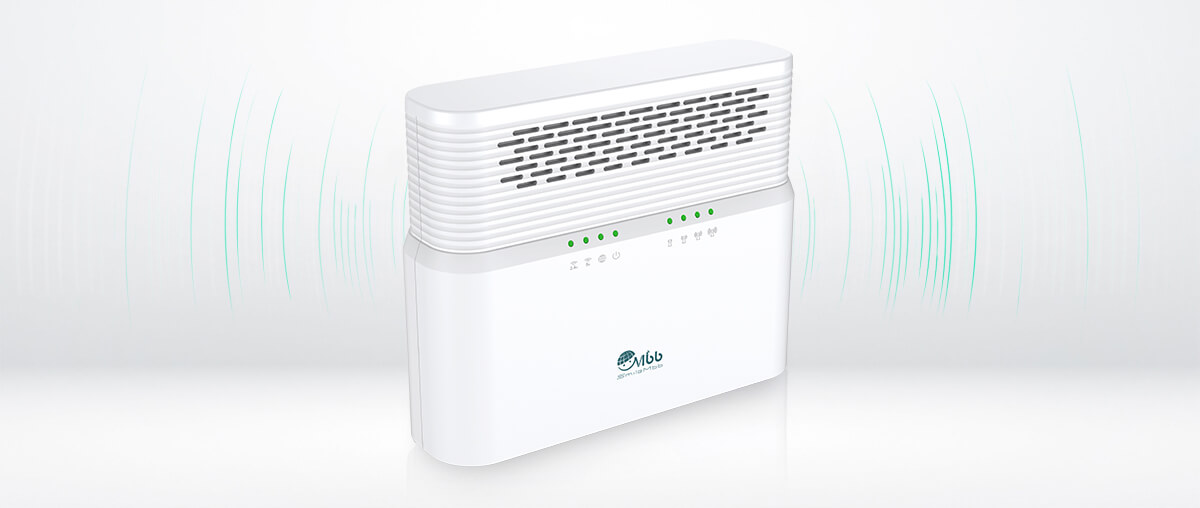

LTE CAT6 CPE XKC7241

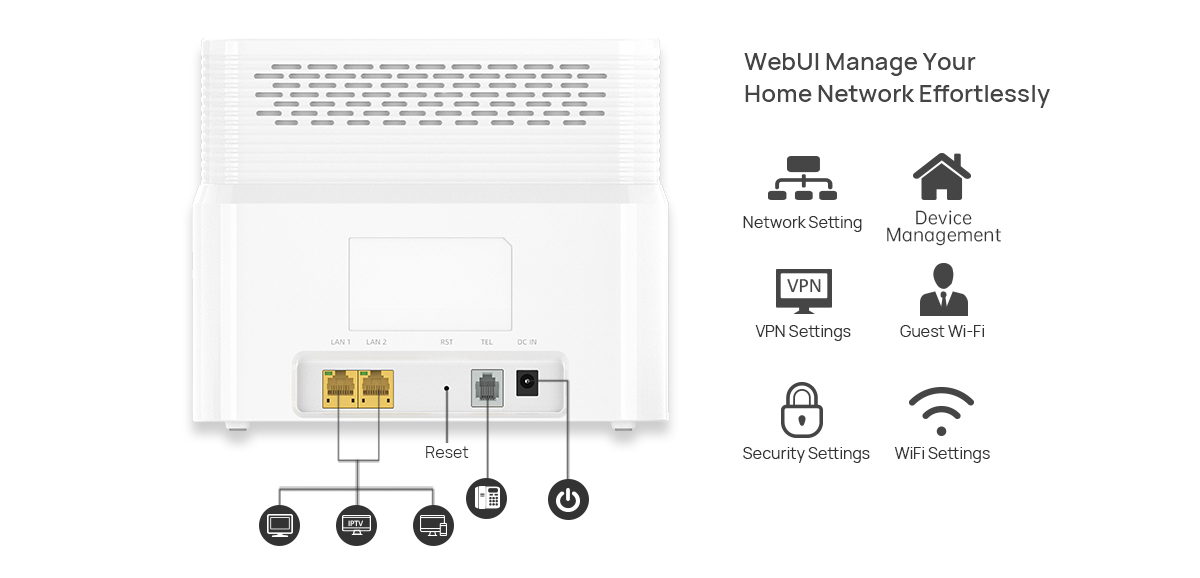

Connect to Wired Devices and More
With two Gigabit Ethernet ports, LTE CAT6 CPE XKC7241 can connect to more wired devices for gigabit speed.
With a voice port for telephone(VoLTE or VoIP function).

LTE CPE

Chip platform	GCT GDM7243QT+MTK MT7621DA
Frequent band	FDD-LTE B1/B3/B7/B8/B20/B28; TDD-LTE B38/B40/B41/B42/B43/B48
Protocol Version	4G: 3GPP R10/R11 Cat6
LTE Speed	TDD DL 220Mbps/UL 15Mbps (Config 2:7) FDD DL 300Mbps/UL 75Mbps
Wi-Fi Standard	2.4G/5GHz Dual Band: 802.11b : Up to 11 Mbps 802.11g : Up to 54 Mbps 802.11n : Up to 300 Mbps 802.11ac : Up to 866 Mbps
Size	204.5mm x 169 mm x 60mm
Weight	＜500g
Power supply	DC 12V/2A

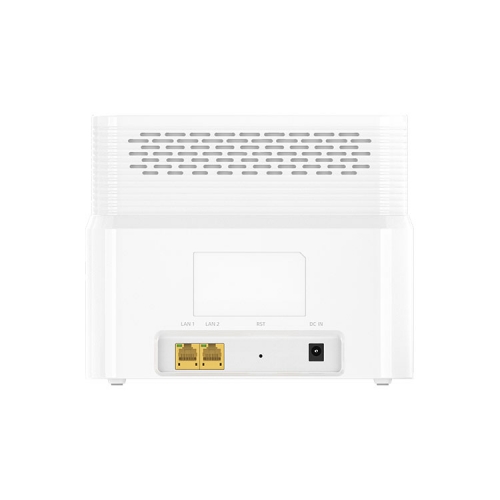

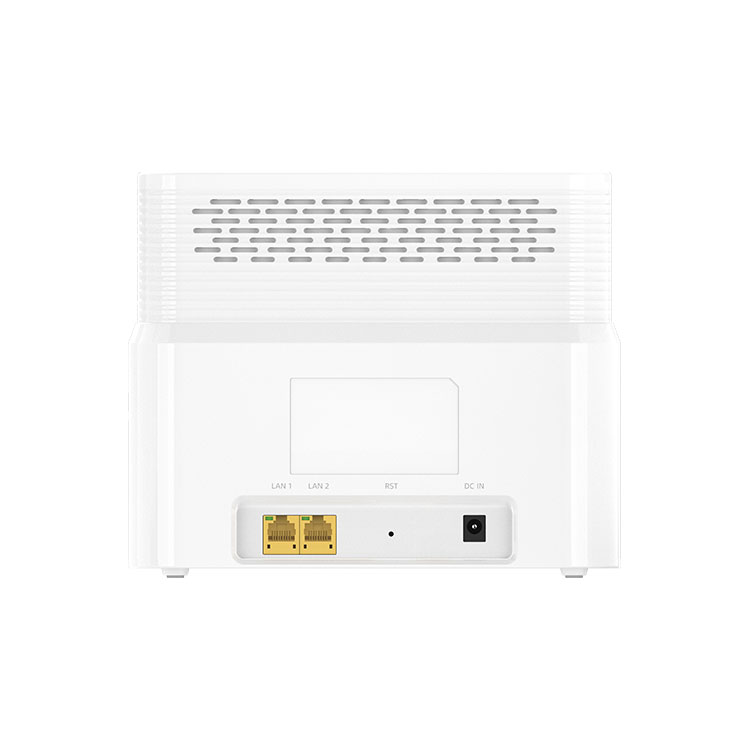

Physical interface	2 * Gigabit RJ45 LAN Port,10/100/1000 auto-sensing, auto-MDI/MDIX ； Single USIM, Standard SIM slot 3FF; 4×4 MIMO LTE internal antennas ，22 MIMO WiFi internal antennas； 12V/2A interface recommended； 1 Voice Pots Port(RJ11)
LED	8 LED Indicators (PWR, Wi-Fi, TEL, NET, RF Signal*4)
Button	Reset/Reboot(Tact Switch)

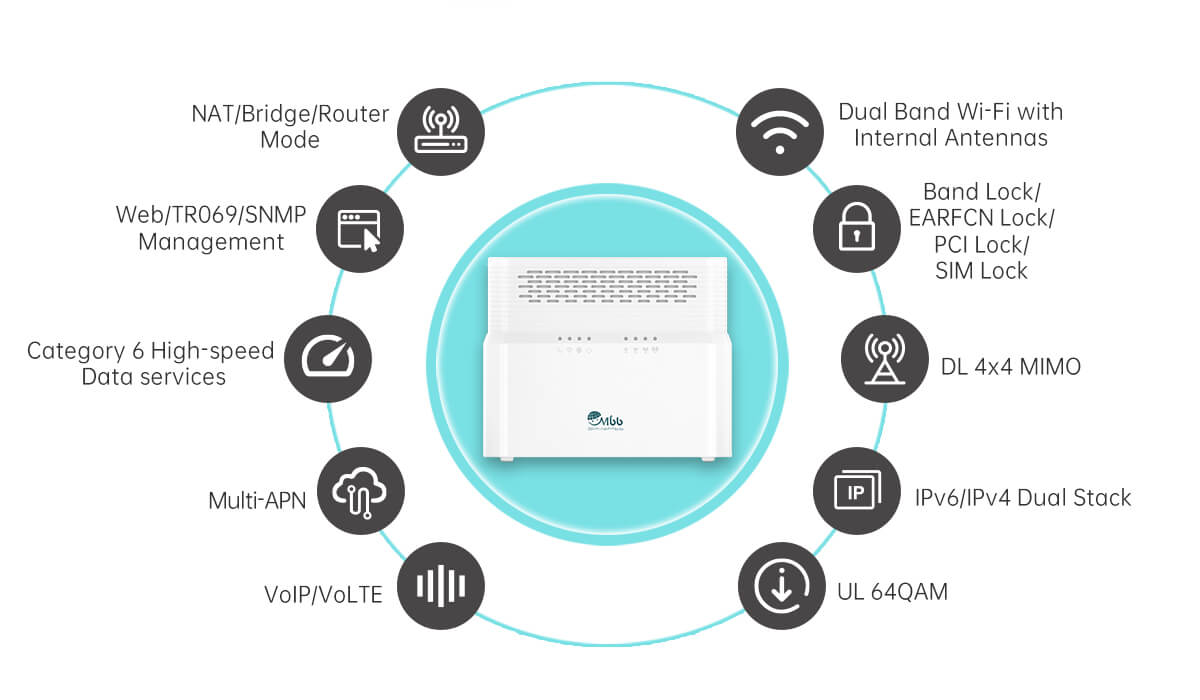

Characteristic	NAT/Bridge/Router mode Web/TR069/SNMP management Multi-APN VoIP/VoLTE Band Lock / EARFCN Lock / PCI Lock / SIM Lock IPv6 / IPv4 dual stack

LTE CAT6 CPE

LTE Cat6 CPE | XKC7241 SmileMbb LTE CAT6 Wireless Router

Plug & Play WiFi Everywhere and Everytime SmileMbb 4G CAT6 CPE is easy to set up, just plug in the Micro-SIM card. Connect your phone,Notebook and other WiFi devices to the router anywhere you go. From your living room to the gyms, high-speed WiFi follows you.

Aplication Scenarios

Take High-Speed Network to a New Level Adopting 4×4 MIMO, SmileMbb 4G CAT6 CPE double the peak LTE speed to 300 Mbps.

LTE CAT6 CPE XKC7241 Connect to Wired Devices and More With two Gigabit Ethernet ports, LTE CAT6 CPE XKC7241 can connect to more wired devices for gigabit speed. With a voice port for telephone(VoLTE or VoIP function).
