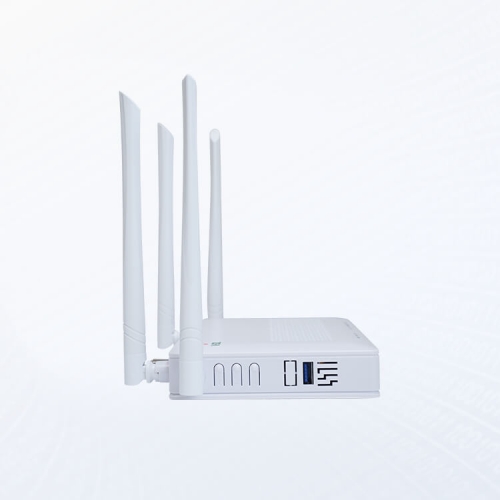

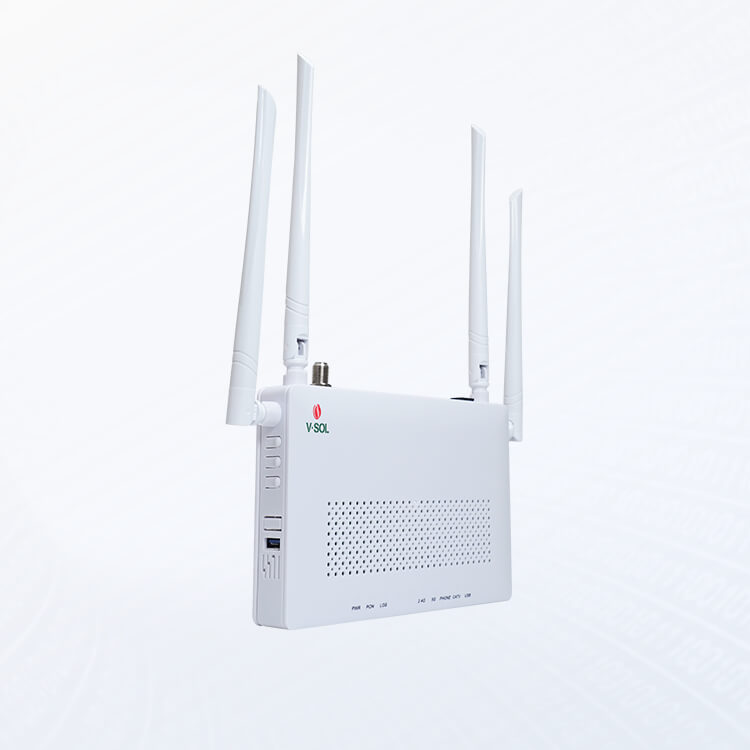

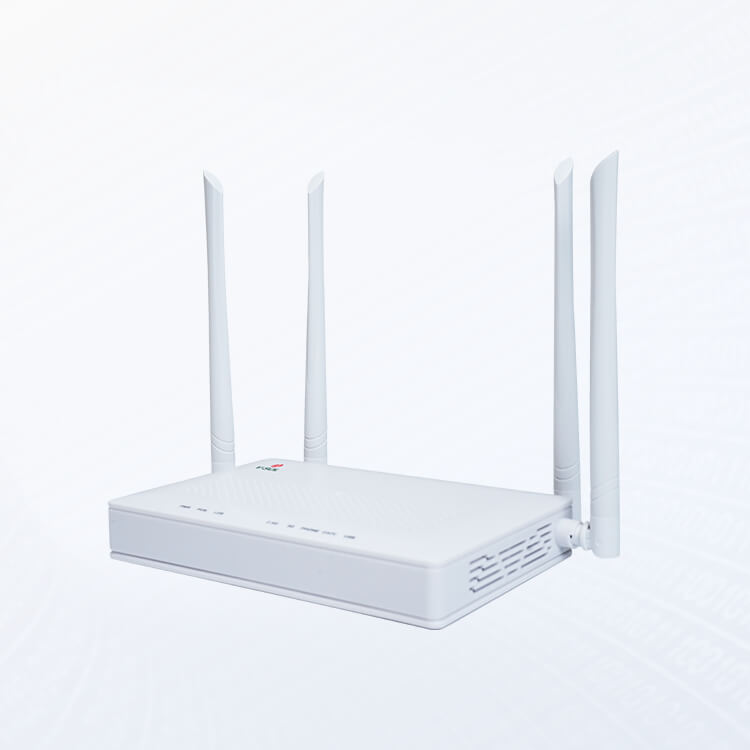

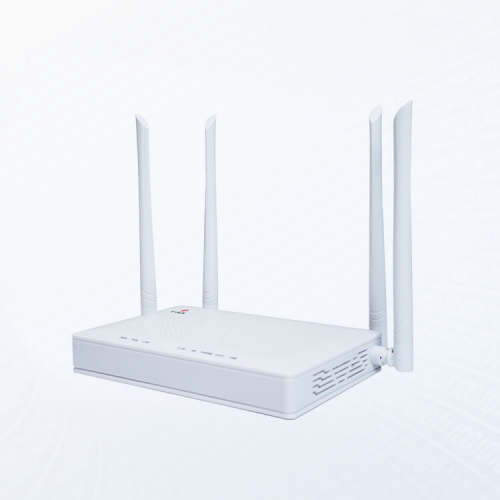

4GE+1POTS+WiFi 5+USB 3.0+CATV HGU

Name: 4GE+1POTS+WiFi 5+USB 3.0+CATV HGU
Brand: V-Solution Indonesia
SKU: HG325ACT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HG325ACT

4GE+1POTS+WiFi 5+USB3.0+CATV XPON HGU is based on the mature Chipset technology, which has high performance. The HGU is designed for fulfilling the FTTH and triple play service demand of fixed network operators.

Material: ABS Plastic

INQUIRY

Description parameters Download

Gigabit Fiber XPON CATV ONT

XPON | Gigabit-LAN | SIP VoIP | CATV RF | USB3.0

Better Choice for Home/Hotel

XPON+4*GE+WiFi 5+POTS+USB 3.0+CATV

EasyMesh: Smart, Extended Coverage Home WiFi

Support IPv6 and MU-MIMO Technology

Say goodbye to network lag, multiplayer online without lag

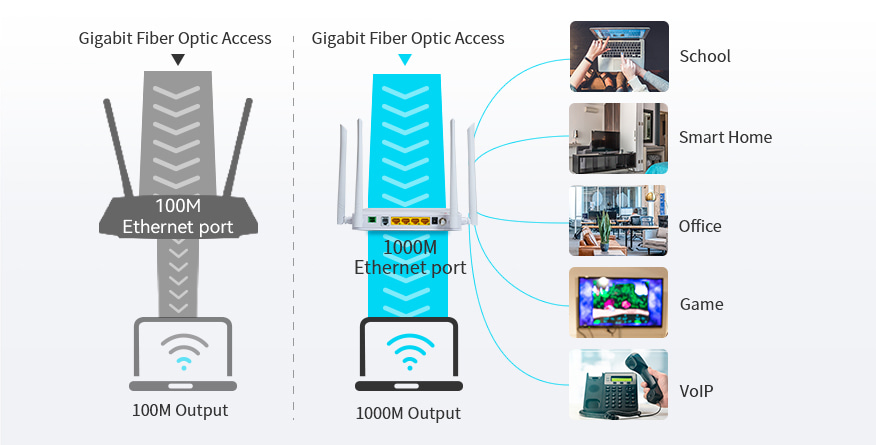

AC1200 Dual Gigabit Interfaces for
Gigabit Broadband Access Applications

CATV with AGC

Remote Control CATV On/Off

○ Hardware Parameter
Dimension	178mm×120mm×30mm(L×W×H)
Net weight	420g
Operating condition	Operating temp: 0°C ~ +50°C Operating humidity:10% ~ 90%（non-condensing）
Storing condition	Storing temp: -30 ~ +70°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC12V,1.5A, external AC-DC power adaptor
Power supply	≤12W

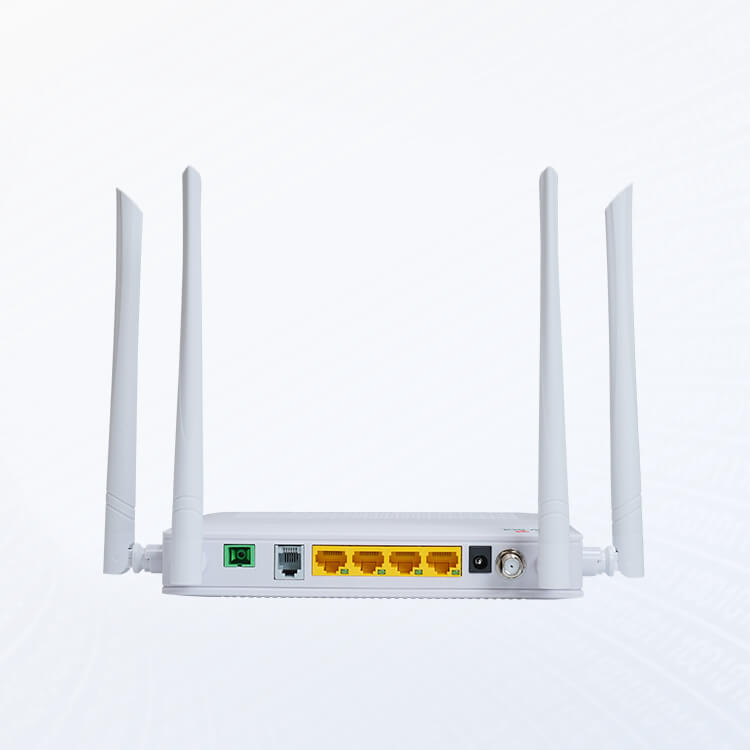

Interface	4GE+1POTS+WiFi 5+USB 3.0+CATV
Indicators	POWER、LOS、PON、 LAN1～4、2.4G、5.0G、USB0、USB1、PHONE

○ Interface parameter
PON interface	1XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
Optical interface	SC/APC connector
User interface	4*GE, Auto-negotiation, RJ45 ports 1 POTS RJ11 Connector

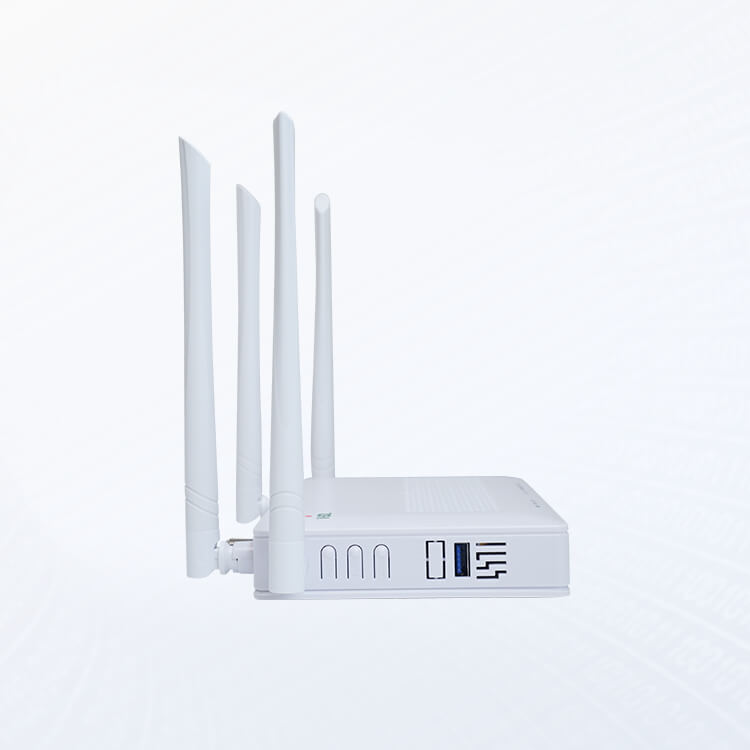

USB interface	1*USB3.0, for Shared Storage/Printer
WLAN interface	Compliant with IEEE802.11b/g/n/ac WiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 11n--22dBm/11ac--24dBm
CATV interface	RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level and AGC range: 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / 79dbuv@-2~-12dBm /77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / 73dbuv@-5~-15dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)

○ Function Data
Management	OAM/OMCI,Telnet,WEB,TR069 Support full management of HGU functions by VSOL OLT
Mode	Support bridge, router and bridge/router mixed mode
Data Service Functions	Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc. Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless	Integrated 802.11b/g/n/ac Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
VoIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
L3	Support NAT, Firewall Support IPv4/IPv6 dual stack
Other function	Integrated OAM/OMCI remote configuration and maintenance function Support rich QinQ VLAN functions and IGMP snooping multicast features

Datasheet

XPON HGU HG325ACT Datasheet-V2.1-EN
