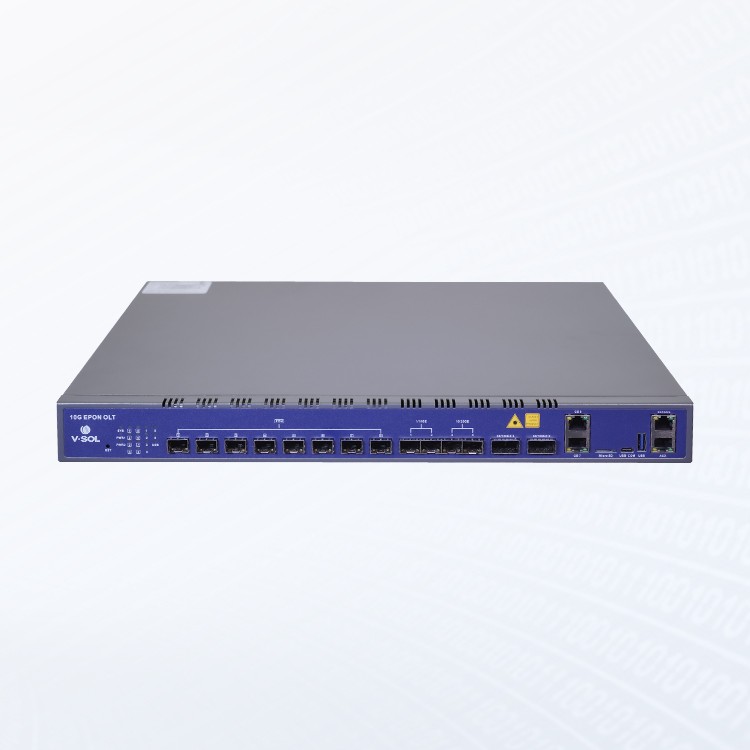

8-Port 10G EPON OLT

Name: 8-Port 10G EPON OLT
Brand: V-Solution Indonesia
SKU: V3600D8
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V3600D8

V-SOL V3600D8 adalah 8 Port 10G EPON OLT yang distandarisasi dalam IEEE 802.3av dan berevolusi dari standar EPON IEEE 802.3ah.

V3600D8 memiliki kompatibilitas yang baik sehingga 10G EPON ONU dapat hidup berdampingan dengan EPON ONU dalam ODN.t cocok untuk diterapkan di lingkungan ruangan yang kompak. OLT dapat digunakan untuk jaringan FTTx, jaringan nirkabel 5G, dan lingkungan jaringan lainnya.

V3600D8 menyediakan antarmuka independen slot 2*10GE(SFP+) dan 2*25GE(SFP28) dan 2*100GE(QSFP28) untuk uplink, dan port EPON 8*10G untuk downlink (Rasio Split Maksimum adalah 1:256).

Material: Steel Shell

Size: 442mm* 369mm*46.6mm（L*W*H）

Weight: 3.6kg

INQUIRY

Description parameters Download

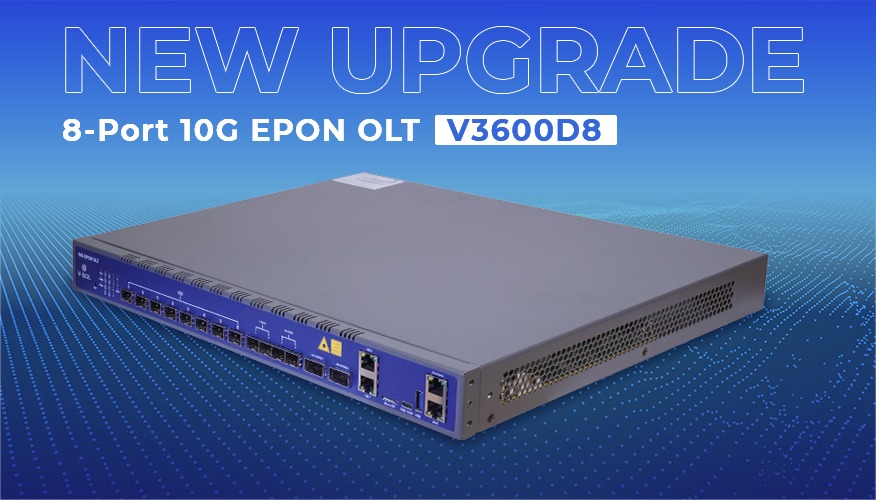

8-Port 10G EPON OLT V3600D8
New upgrade, Be brilliant

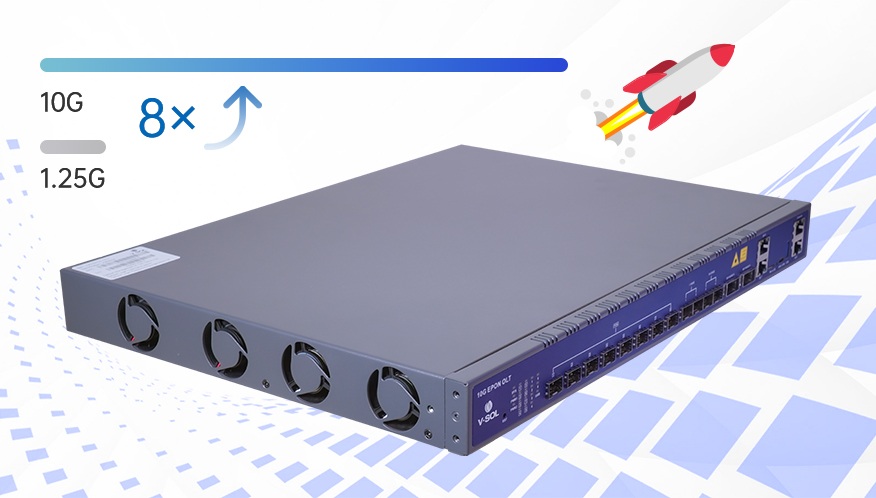

8x bandwidth for higher rates

1.25G→10G Enjoy the ultimate network experience

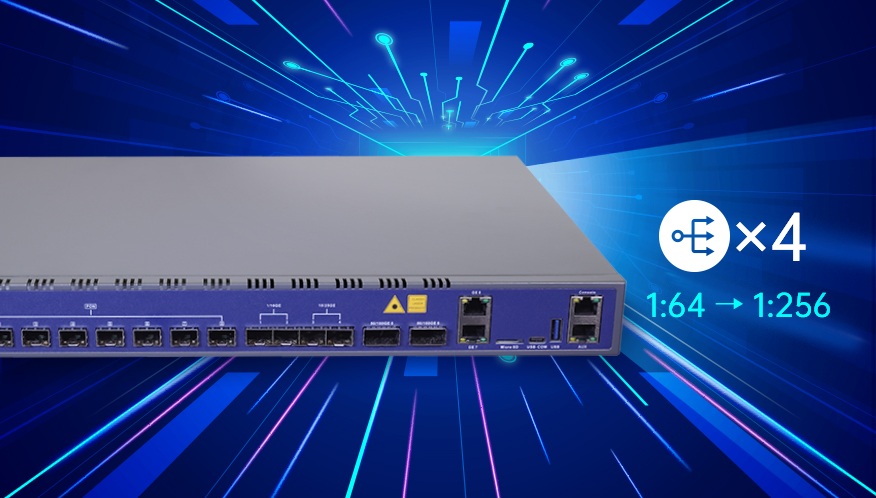

4X spectral ratio, high speed and stability

1:64→1:256, one fiber to achieve network access for multiple end devices

10G Epon OLT

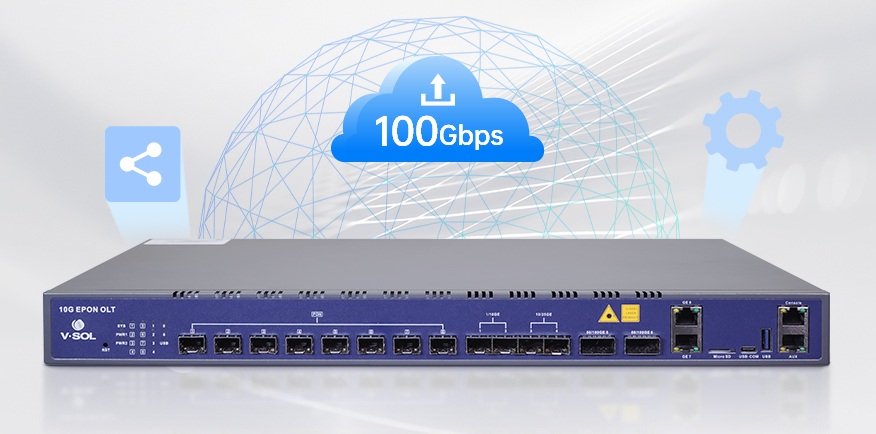

100Gbps uplink, non-blocking wire-speed forwarding

Uplink port supports 100Gbps, effectively reducing latency and improving transmission efficiency

10G PON OLT

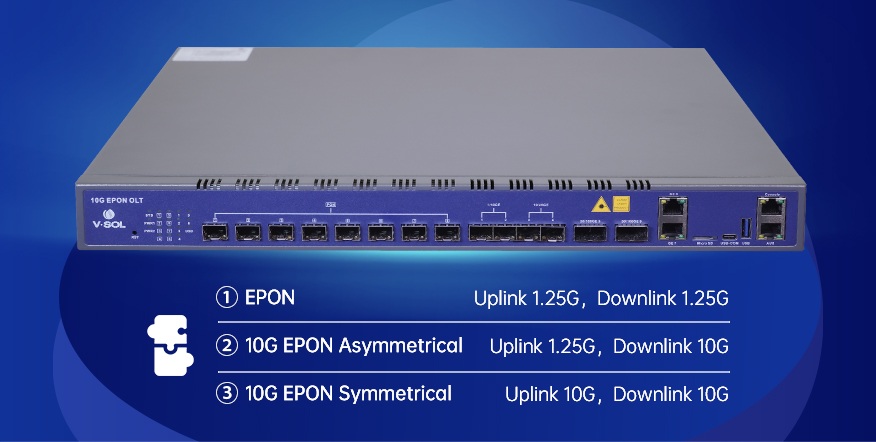

Three models, forward compatible

10G EPON is compatible with three modes, retaining the existing EPON ONU to meet the smooth speedup of EPON broadband, which can protect operators' existing investment to a greater extent

10G OLT

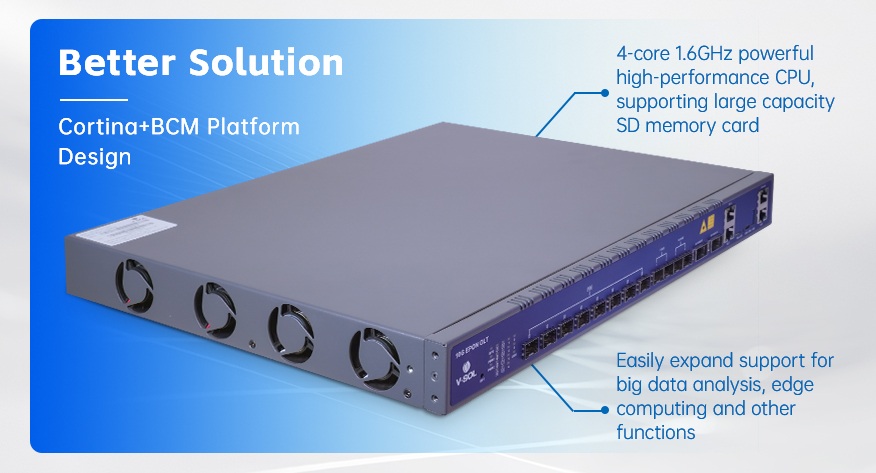

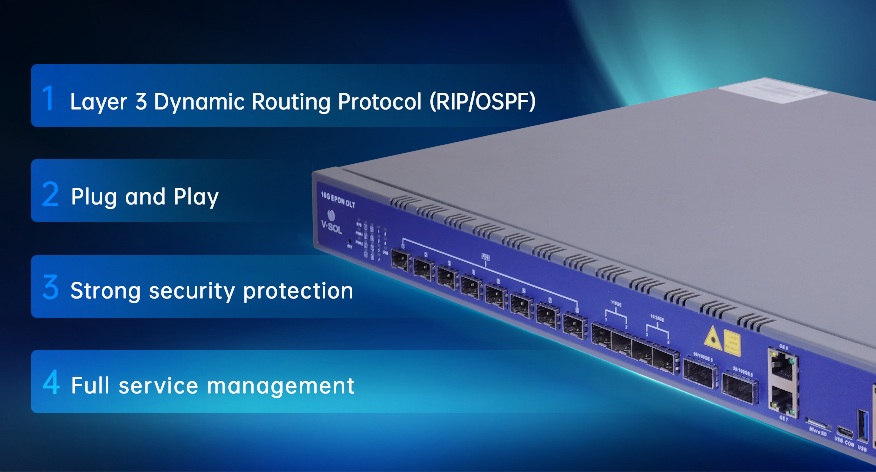

Better solution , excellent processing capacity

Set of practical functions, new and more brilliant

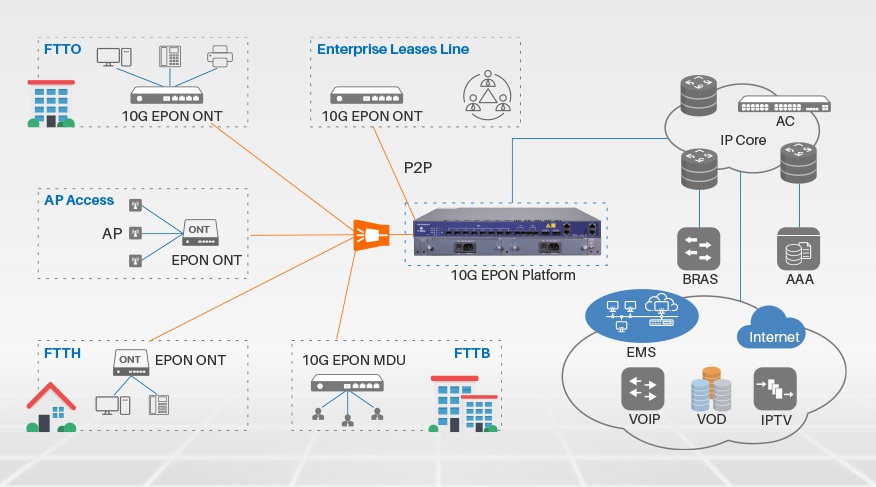

FTTH diagram, new scene experience

V3600D8 8 Ports 10G EPON OLT
Backplane Bandwidth (Gbps)		880
Port Forwarding Rate (Mpps)		523.776
Chassis	Rack	1U 19 inch standard box
Uplink Port	QTY	8
	GE(RJ45)	2
	1/10GE(SFP +)	2
	10/25GE(SFP28)	2
	40/50/100GE(QSFP28)	2
10G EPON Port	QTY	8
	Physical Interface	SFP+ Slots
	Connector Type	PR30/PRX30
	Max splitting ratio	1:256
Other Interface		110/100/1000BASE-T out-band port,1CONSOLE port,1Micro SD,1Type-C, 1*USB3.0
Dimension (LxWxH)		442mm369mm46.6mm
Net Weight		3.9kg

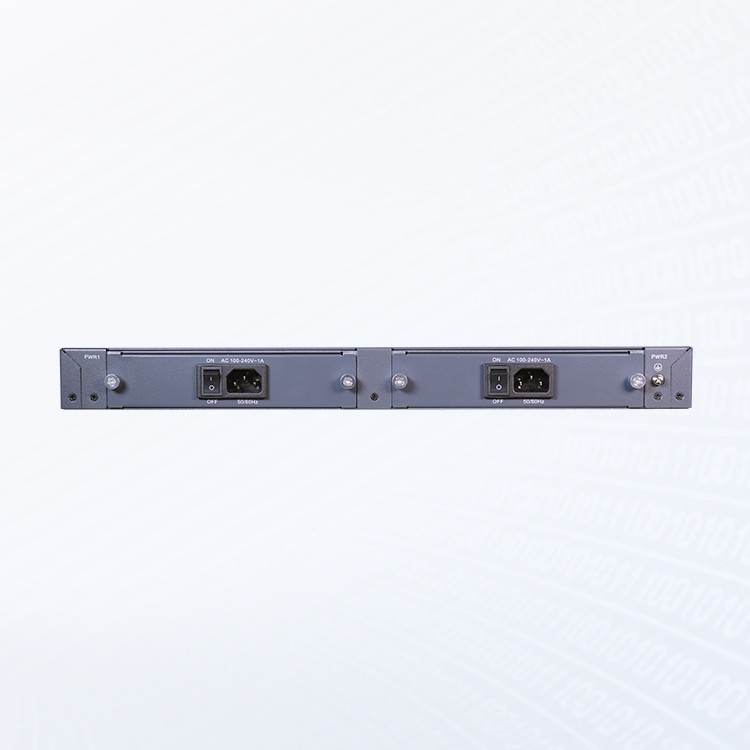

Power Supply		AC 100~240 V, 50/60 Hz, 200W
DC Power Supply		DC: -48V
Power Consumption		≤145W
Operating Environment	Working Temperature	0~+50°C
	Storage Temperature	-40~+85°C
	Relative Humidity	5~90% (non-conditioning)

Datasheet

8-Port 10G EPON OLT V3600D8 Datasheet-V1.01-EN
