5G Industry CPE

Item No.: XYB5551
XYB5551 is an industrial-grade 5G CPE device for industrial control applications. The device integrates the functions of 5G modem, router and access point, providing users with safe, reliable, convenient and flexible wireless broadband connection.
Description parameters



SmileMbb 5G Industrial CPE

Qualcomm SDX55 | Ruggedized Design | Rich Industrial Interfaces


Industry CPE

Qualcomm SDX55 Platform
Enjoy 5G Full Speed Experience


SmileMbb 5G Industrial CPE ,Built with the Qualcomm SDX55 chipset, supporting carrier aggregation,
the theoretical peak download speed reaching up to 4.0 Gbps.



5G industrial CPE

Global 5G/4G/3G Cellular
Providing Reliable Connectivity


SmileMbb 5G Industrial CPE supports various 3G/4G/5G spectrums and ultra high speed in a ruggedized form factor.


CPE Wireless Device

High Gain 4 External Antennas
Easier to Receive 5G Signal


With 4 External Antennas, 5G Industrial CPE can easier to receive 5G signal and super powerful signal coverage.


5G CPE Router

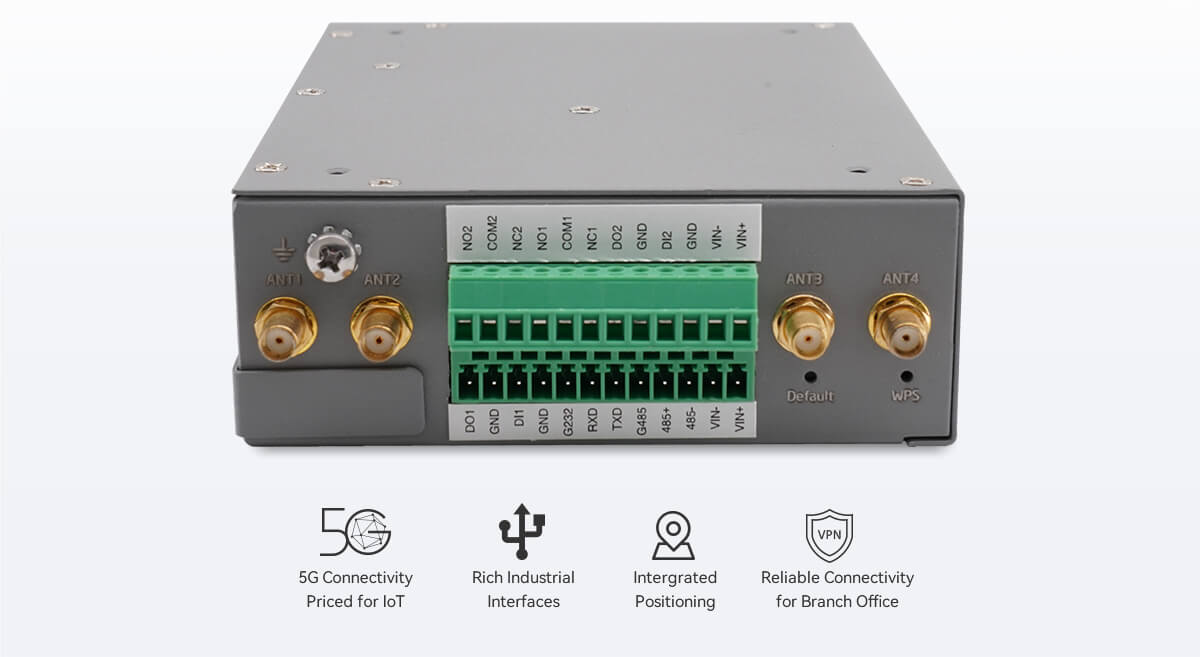

Rich Industrial Interfaces Designed
Facilitate innovation in the 5G industry


SmileMbb 5G Industrial CPE, Built with the Qualcomm SDX55 chipset, supporting carrier aggregation,
the theoretical peak download speed reaching up to 4.0 Gbps.



CPE Industry


Application Scenario


5G CPE Application

   Technical parameters
Technical parameter C hip platform Qualcomm SDX55 Network Mode NSA&SA 5G Frequent band 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 Downlink 4 × 4 MIMO on n1/n3/n7/n38/n40/n41/n77/n78 Uplink 2 × 2 MIMO on n41/n77/n78 4G&3G Frequent band LTE Category: Downlink Cat 20/ Uplink Cat 13 LTE-FDD&TDD: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42 Downlink 4×4 MIMO: B1/B3/B7/B32/B38/B40/B41/B42 WCDMA: B1/B5/B8 Protocol Version 3GPP Release 15 5 G /4 G Data Rate 5G SA Sub-6 GHz : 2.1 Gbps ( download ) / 900 Mbps ( upload ) 5G NSA Sub-6 GHz : 3.3 Gbps ( download ) / 600 Mbps ( upload ) LTE 2.0 Gbps ( download ) / 150 Mbps ( upload ) Size 112mmx42mmx138mm Weight About 660g Power supply DC12~28V input ( 3.81mm interval industrial green terminal ) Physical interface 4 GE ports, 1CH RS232 Port, 1CH RS485 Port, 2CH relay interfaces, 2CH I/O, 1 external Micro SD card interface, 1x Built -in ESim interface , support GPS; 1x External Micro SD card interface 2~4 x External 5G antenna , External GPS/BD antenna (optional) LED PWR, WLAN, VPN, SYS, ONLINE, DTU Working Temperature -20~70℃ (Working Humidity: 5%~95% ) Waterproof IP31
