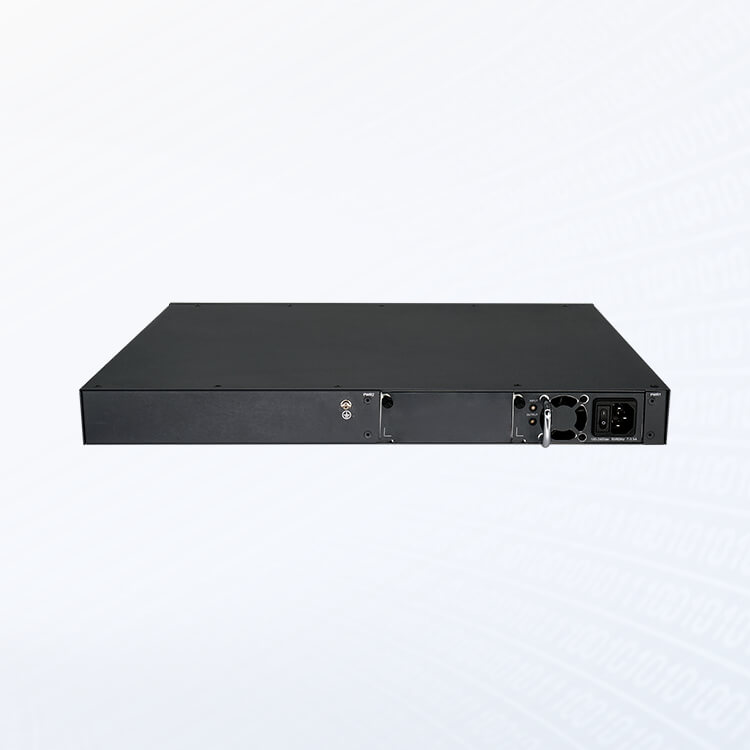

V-SOL V35XX Series is a new-generation smart switch developed for carrier IP MAN and enterprise networks. Based on the new high-performance hardware and the ROS platform, V35XX supports ACL, selective QinQ, 1:1 and N:1 VLAN switching, Ethernet OAM, carrier-level QoS, industry-level 10G Ethernet ring, etc.

Key Features:

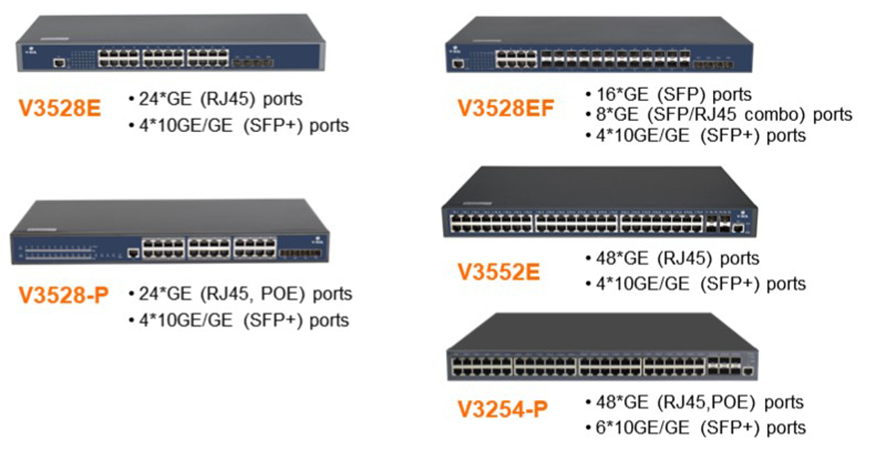

Supports Maximum 48 GE TX Ports and 4 10GE SFP+ Uplink Ports	Carrier-Level High Reliability Layer-3 Routing Functions	Advanced Hardware Architecture and  Industry- leading Port Density	Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

VLAN

1. 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN & Voice-VLAN

Spanning Tree

1. 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
2. BPDU guard, root guard and loopback guard

Multicast

1. Support IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

Certification

1. CE, FCC, ROHS

IP

1. Static route, RIP, OSPF
2. IPv4/IPv6 dual stack

QoS

1. CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority re- labeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

DHCP

1. DHCP server/relay/client
2. DHCP snooping/option82

IPv6

1. ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet
2. IPv6 neighbor discovery, Path MTU discovery
3. MLD V1, MLD snooping
4. IPv6 Static Routing, RIPng, OSPFv3
5. Manual tunnel, ISATAP tunnel,6 to 4 tunnel

Security

1. Port isolation, Port security, and “IP+MAC+port” binding,MAC sticky DAI & IP source guard PPPoE+
2. IEEE 802.1x, AAA, Radius and BDTacacs+
3. L2/L3/L4 ACL flow identification and filtrationAnti-attack from DDoS,TCP’s SYN Flood, UDP Flood, etc
4. Broadcast/multicast/unknown unicast storm- control
5. MD5, SHA-256, RSA-1024, AES256,etc.

Reliablity

1. Static/LACP link aggregation, Interface backup
2. EAPS and ERPS
3. ISSU uninterrupted system upgrade
4. BVSS, ups to 16-units per stack
5. VRRP, UDLD

Management

1. Console, Telnet, SSH v1/v2, HTTP, HTTPS, SNMP v1/v2/v3, RMOM
2. TFTP, FTP, SFTP
3. NTP, ZTP
4. SPAN, RSPAN Dying gasp*

Environment

1. Operating temperature/humidity: 0 ℃ - 50 ℃ ,10%-90% non-condensing
2. Storage temperature/humidity:
3. -20 ℃ -70 ℃ , 5%-95% non-condensing

Accessories

1. Power cord, rackmount kits, console cable
