| Product introduct |
| Technical parameters |
| Technical item | 1GE+3FE+WiFi |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| Wavelength | Tx1310nm,Rx 1490nm |
| Optical interface | SC/UPC connector |
| LAN interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WiFi interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| CATV interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED | 9, For Status of POWER、LOS、PON、LAN1、LAN2、LAN3、LAN4、WiFi、Pair |
| Operating condition | Temperature: 0℃～+50℃ Humidity: 10%～90%（non-condensing） |
| Storing condition |
Temperature: -30℃～+60℃ Humidity: 10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power supply | ≤6W |
| Dimension (L×W×H) |
185mm×120mm×34mm |
| Net weight | 0.24Kg |

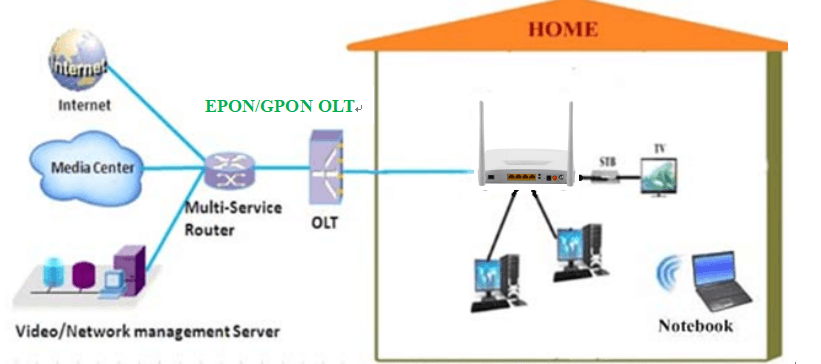

| Typical application diagram |
