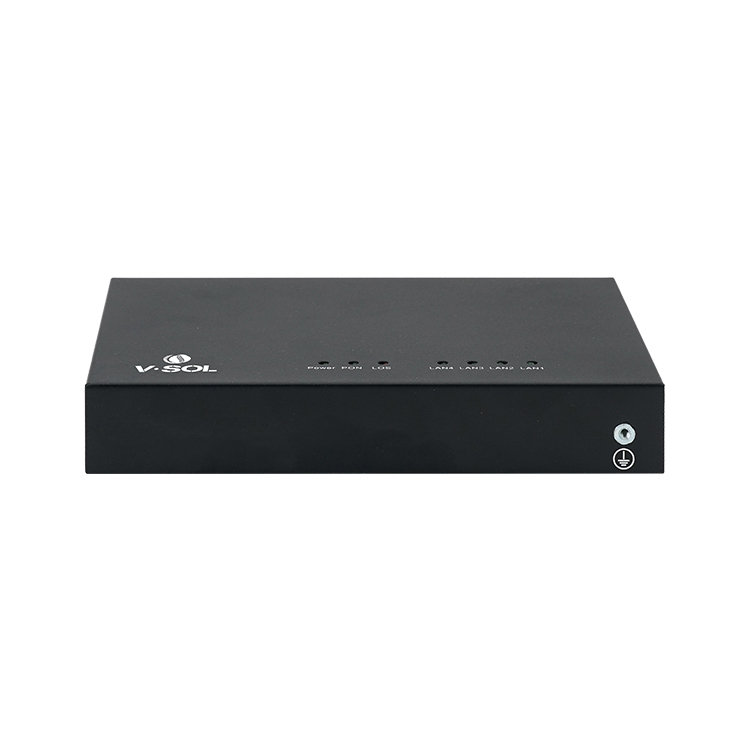

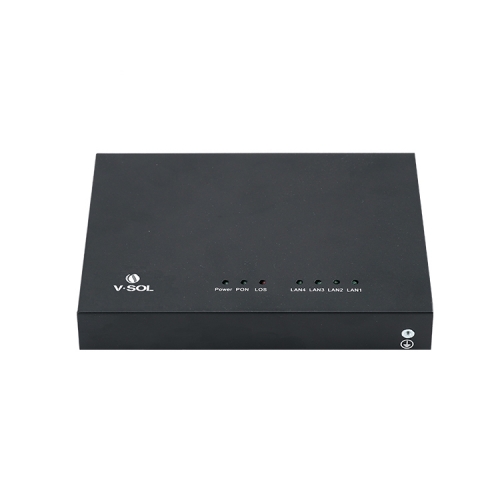

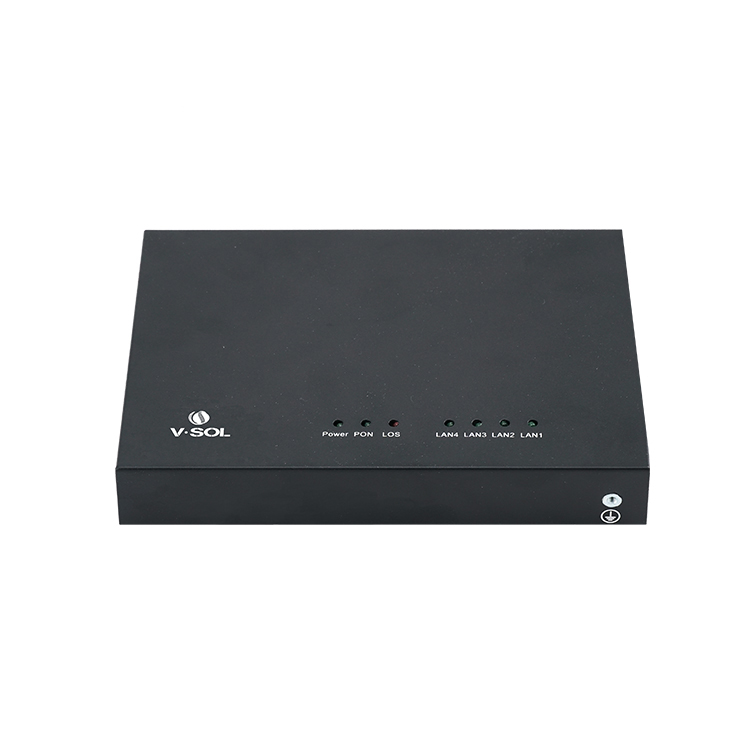

1GE+3FE POE XPON ONU

Name: 1GE+3FE POE XPON ONU
Brand: V-Solution Indonesia
SKU: V2820D
Availability: InStock
Rating: 5 (1 reviews)

Item No.: V2820D

V2820D-1G3FPS(1×GE+3×FE XPON POE(PSE) ONT) is specially designed to meet the FTTH, SOHO and other access requirements of telecom operators. The ONT is based on a high-performance chip solution, supports XPON dual-mode, and also supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.

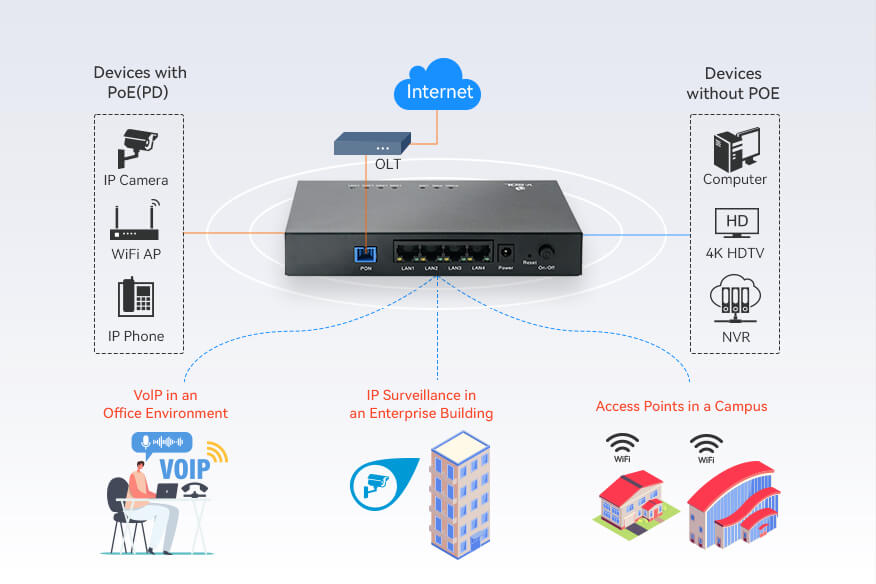

The four network ports of the ONT all support the POE function, which can supply power to IP cameras, wireless APs and other devices through network cables.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It complies with a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

Material: Steel Shell

Size: 175mm×123mm×28mm（L×W×H）

Weight: 0.6kg

INQUIRY

Description parameters Download

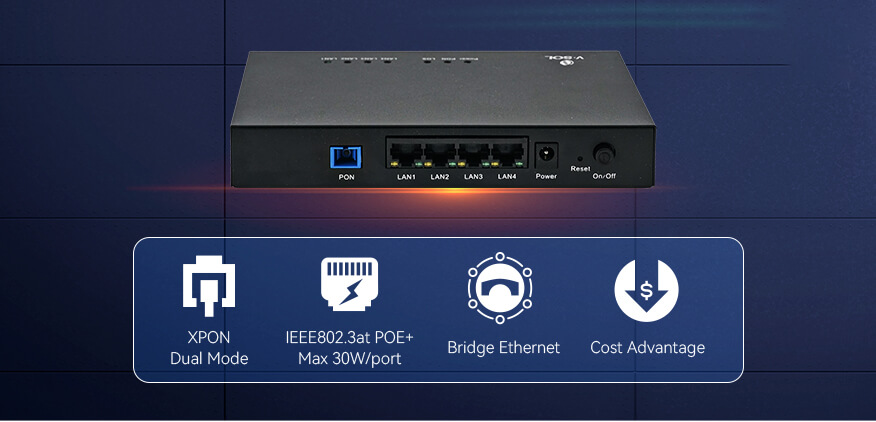

V-SOL XPON POE ONU

V2820D-1G3FPS | 1GE+3FE+POE

48W POE+ Power Supply, Single Port Max 30W

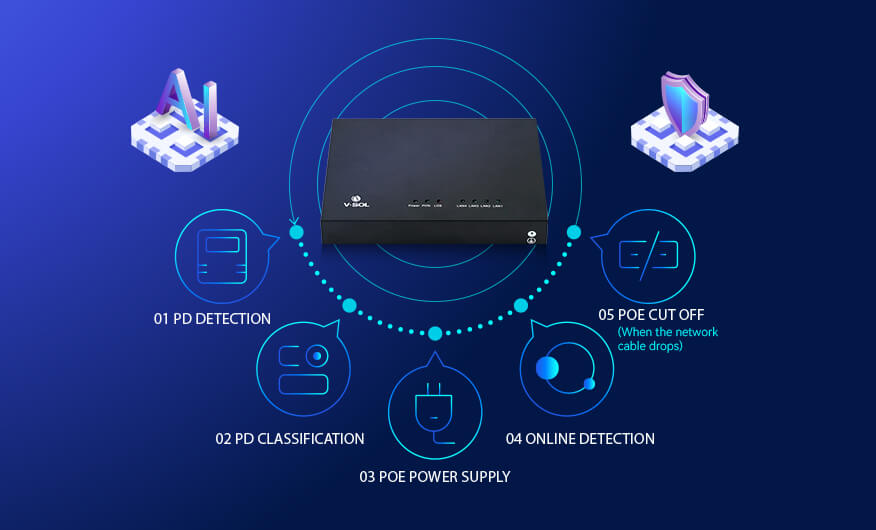

AI PD Detection, More Safe

Simple Deploy and Easy O&M

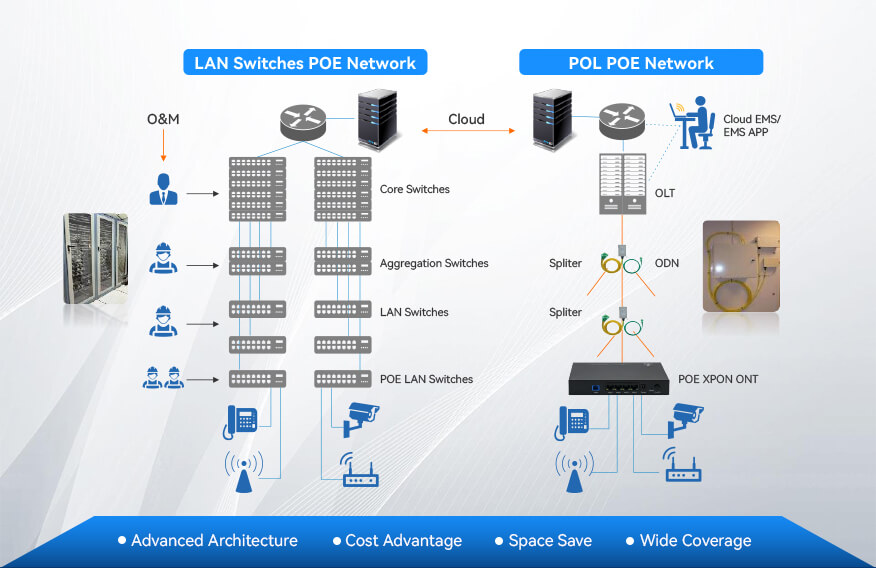

Advantage Cost POL POE Network

○ Hardware Parameter
Dimension	175mm×123mm×28mm（L×W×H）
Net weight	About 0.6kg
Operating condition	Temperature: -20°C ~ 50°C Operating humidity: 5 ~ 90% (non-condensed)
Storage condition	Storing temp: -30 ~ 60°C Storing humidity: 5 ~ 90% (non-condensed)

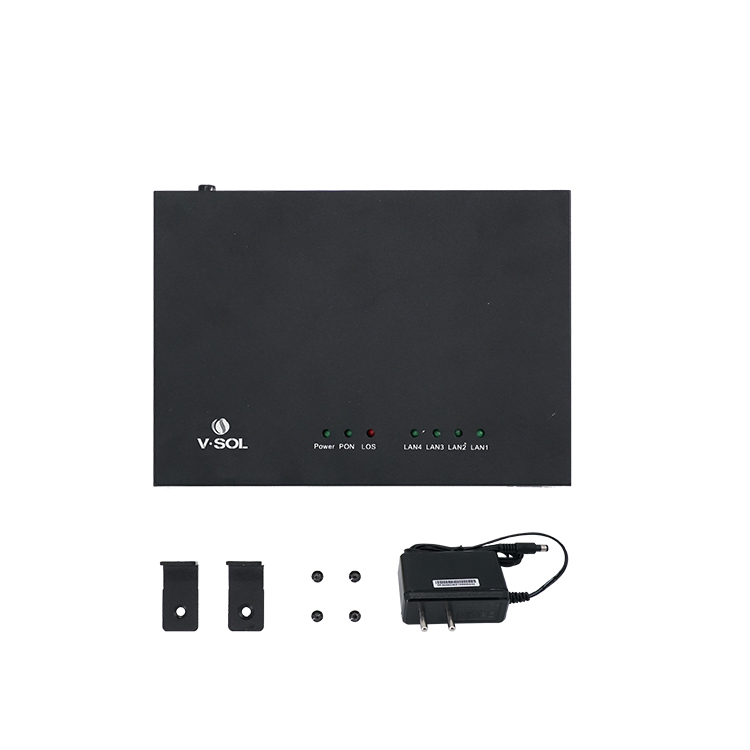

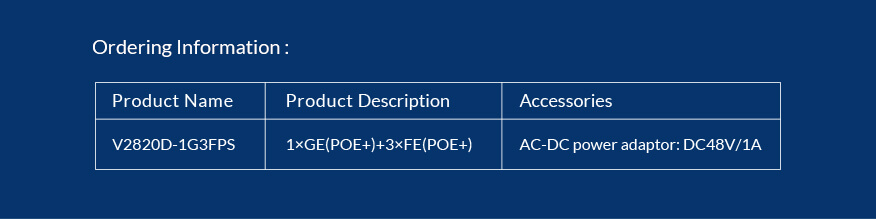

Power adapter	DC 48V, 1A
Power supply	≤ 48W

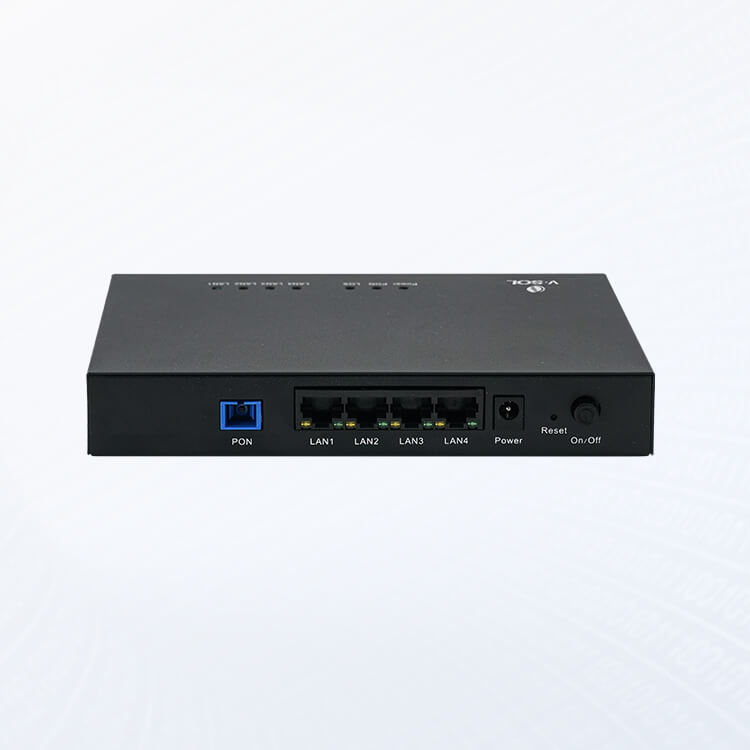

Interface	1×XPON+1×GE(POE+)+3×FE(POE+)
Indicators	7, POWER,LOS,PON, LAN1~LAN4

○ Interface parameter
PON Interface	1 XPON port(EPON PX20+ and GPON Class B+) SC Single Mode，Receiving sensitivity: ≤ 28dBm TX optical power: 0 ~ +4dBm RX sensitivity: -8 to -25 dBm Transmission distance: 20KM Downlink: 2.5/1.25Gbps uplink: 1.25Gbps
Wavelength	TX 1310nm, RX 1490nm
Optical Interface	SC/UPC connector
User Interface	PoE +, IEEE 802.3at, Max 30W per port 1x10/100/1000Mbps + 3x10/100Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector Configuration of the number of MAC addresses learned Ethernet port-based VLAN transparent transmission and VLAN filtering

○ Function Data
Management	Support OMCI(ITU-T G.984.x) Support CTC OAM 2.0 and 2.1 Support Web/Telnet/CLI
SFU	Bridging mode Compatible with mainstream OLTs
L2	802.1D&802.1ad bridging 802.1p CoS 802.1Q VLAN
L3	IPv4/IPv6 NAT, DMZ, DDNS
Multicast	IGMP v2/v3 IGMP snooping

Datasheet

XPON POE ONT V2820D-1G3FPS Datasheet-V2.0-EN
