| Product introduct |

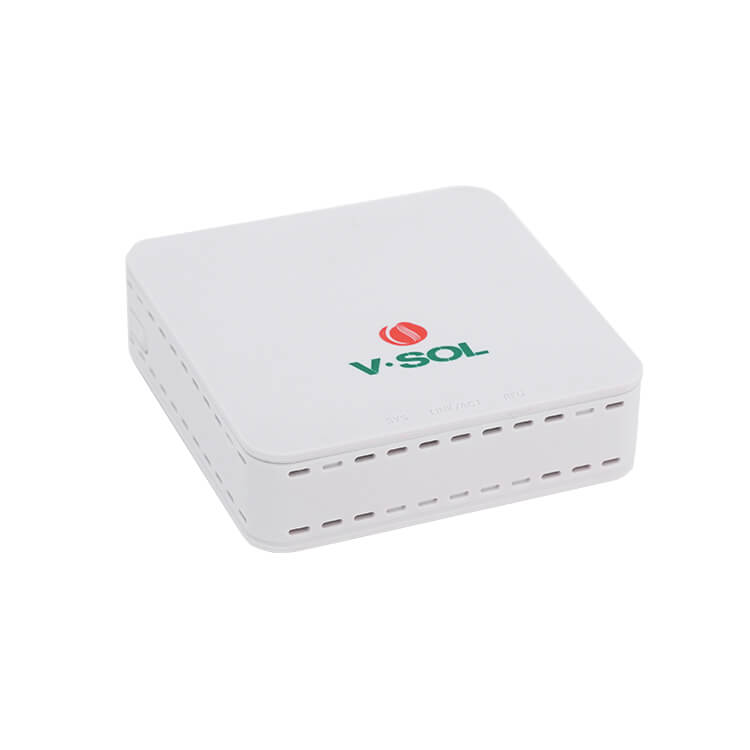

G/EPON 1GE Reserve POE ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.
G/EPON 1GE Reserve POE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
| Video display |
| Special Features |
► Dual Mode( can access gpon/epon olts ).
► Compatible with popular OLT(HW,ZTE...)
► Industrial Design
► Routing or Bridging Mode
► Detecting Rogue ONU
► Flow & Storm Control , Loop Detection
► Firewall: DDOS, Filtering Based on ACL/MAC/URL
► O&M: WEB/TELNET/OAM(OMCI)/TR069
| Product categories |
| Product model | Product specification | Chipset | SDRAM Memory |
| V2801S | 1 G/EPON+1GE | ZTE | 32MB |
| V2801SG-1GPD | 1 G/EPON+1GE+PD |
| Technical parameters |
| Technical item | 1GE |

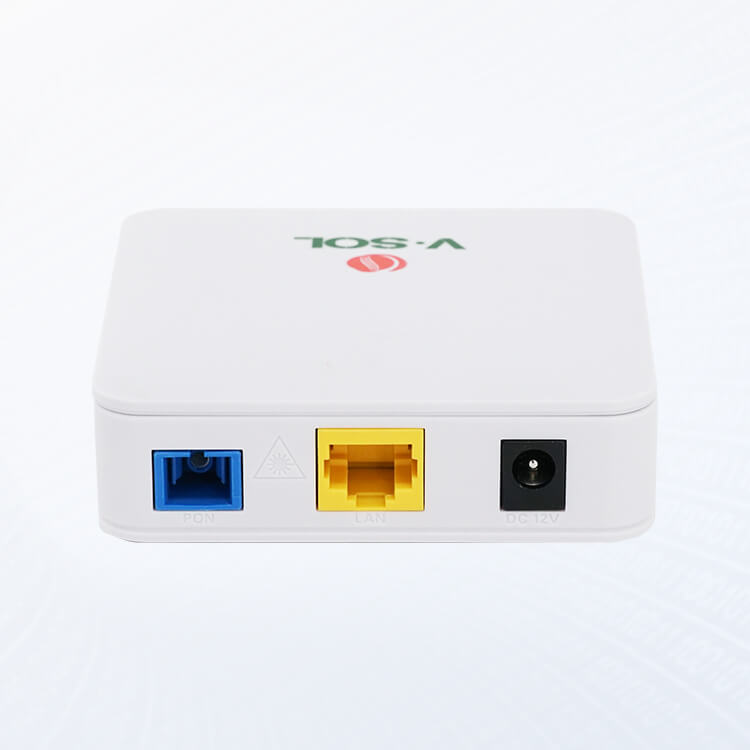

| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector |
| PD(Reverse POE) | DC +12 ~ +24V |
| LED | 3, For Status of REG、SYS、LINK/ACT |
| Operating condition | Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing） |
| Storing condition |
Temperature : -30℃～+70℃ Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/0.5A |
| Power consumption | ≤4W |
| Dimension | 82mm×82mm×25mm（L×W×H） |
| Net weight | 85g |
| Software Parameters |
| Parameter Name | Software Parameters |
| Basic | Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support authentication SN/Psw/Loid/Loid+Psw |
| Alarm | Support Dying Gasp Support Port Loop Detect Support Eth Port Los |
| LAN | Support Port rate limiting Support Loop detection Support Flow control Support Storm control |
| VLAN | Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(max 8 vlans) Auto VLAN detection |
| Multicast | Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 64 |
| QoS | Support 4 queues Support SP and WRR Support 802.1P |
| L3 | Support IPv4 Support DHCP/PPPOE/Static IP Support Static route Support NAT |
| Management | Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support WEB Support TELNET Support CLI |
| Throughput | Upstream >900Mbps Downstream >960Mbps |
| Paquete perdido | 14Hours /Lost 0 |

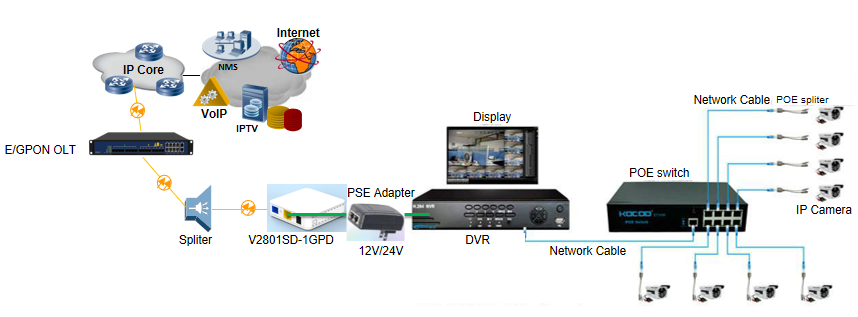

| Network Application |
