V-SOL OLT Management Software Introduction: Cloud BS-EMS
In the market, most businesses like Huawei or ZTE offer CS-EMS to manage the OLT (Optical Line Terminal). V-SOL also has this software. However, in order to improve the efficiency and quality of management, V-SOL developed a brand-new system BS-EMS, which would bring operators a better experience and users a securer network. Now let's start to learn more about BS-EMS!
Page Contents:
2. Features of BS-EMS
3. Compared with CS-EMS, why choose BS-EMS?
4. Related Products: V-SOL EPON/GPON OLT
Part I. What is BS-EMS?
BS-EMS refers to Element Management System integrated with BS (Browser/Server) architecture. There are five aspects that EMS makes a difference in, which includes fault, configuration, accounting, performance and security. As for BS, compared with CS that is set up on LAN and offers connection and data exchange via special server between LANs, it is built on LAN and has a wider application range.

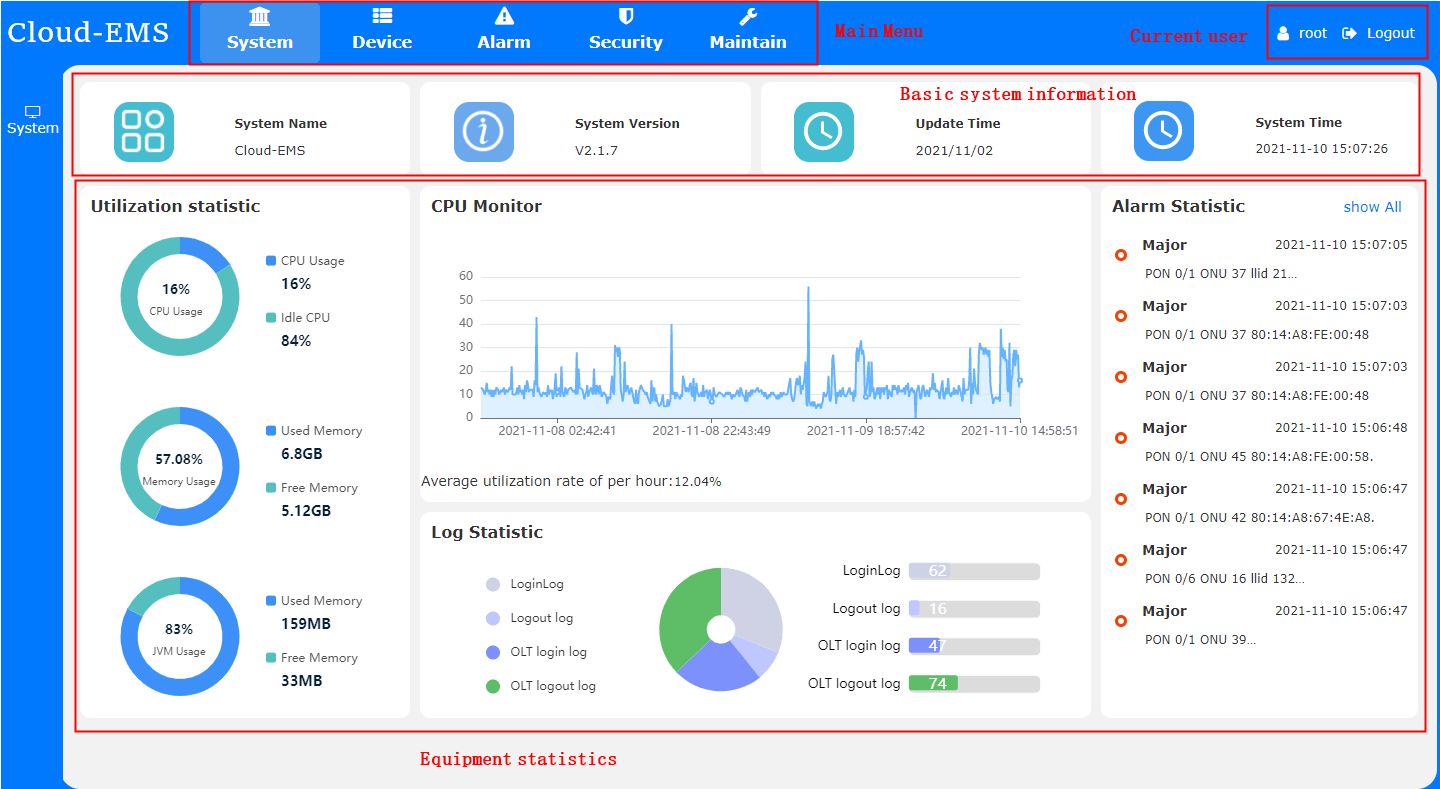

✔ It's capable of monitoring the operation and configuration of the devices through connecting Web client-side and BS-EMS server-side.
✔ The system connects to the OLT through the TCP management tunnel.
The functions of BS-EMS can be divided into three aspects involving system and equipment management, data collection and analysis, data security maintenance.
1. System and Equipment Management
• Equipment Management: Not only is it capable of adding, searching and counting the devices, but also it can manage the equipment configuration and batch upgrading the equipment.
• User Management: It supports adding users, managing roles and authority, and monitoring user operation logging.
2. Data Collection & Analysis
• Alarm Data: including the query, export, data delivery to mailbox, and voice control of alarm
• System Data: Analyzing the system resource usage and Tomcat JVM permission
• Data Backup: Back up data automatically as the planned or master-slave ones.
• Analysis and Graphical Display
3. Data Security Maintenance
• Master & Slave Server Backup: Recovering data when something goes wrong and maintaining the services uninterrupted.
• Batch Management: Bath upgrading devices and backup configuration files.
• System Security & Maintenance: User decentralized management, monitoring of logging, alarm collection and e-mail delivery.

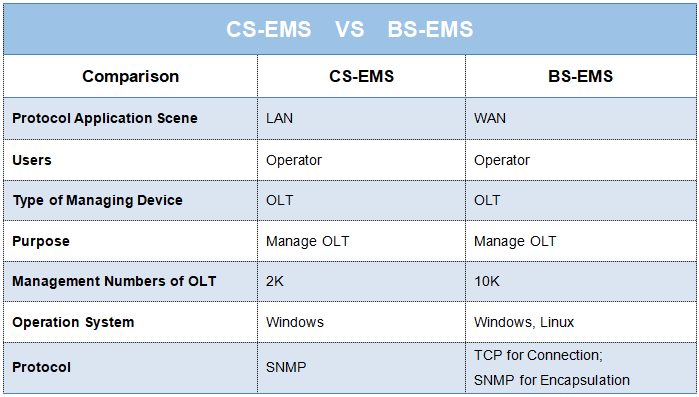

Part III. Compared with CS-EMS, why choose BS-EMS?

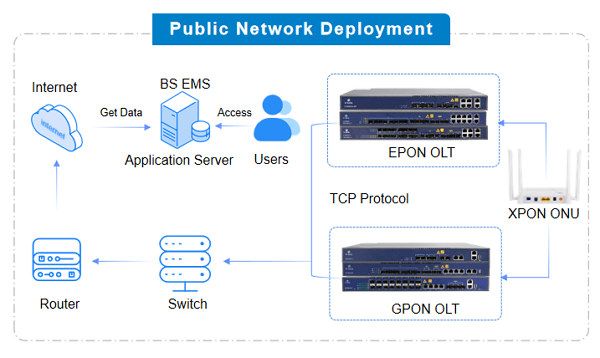

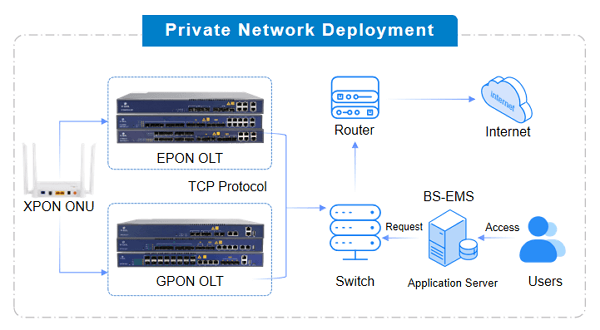

Notes: Here is the application topology diagram:

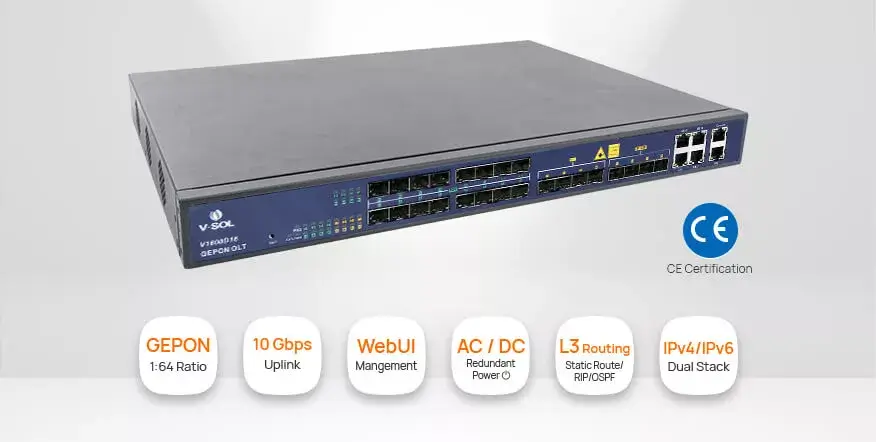

Part IV. Related Products: V-SOL EPON/GPON OLT
There are several types of V-SOL EPON/GPON OLT including 16 ports, 8 ports, 4 ports, etc. The OLT router is small and flexible with high performance. Moreover, they are easy to deploy and compatible with all brands of ONU. It's great to apply the ONU in FTTH (Fiber to the Home) and other scenarios.
Here is the introduction of V-SOL OLT management software BS-EMS. Check more on the video below! If you have any problems, comment to let us know!
Tips:
✔ If you would like to learn more about V-SOL BS-EMS, you can check the related files including the software installation documents and user manual on the firmware download page.
✔ If you want the download files of V-SOL BS-EMS for Linux, please contact our support team via sales@ftthcpe.com or support@v-solution.cn. For any technical problems, please contact the technical team via richine.hu@v-solution.cn.
Related Article: How to Access OLT Device to EMS
